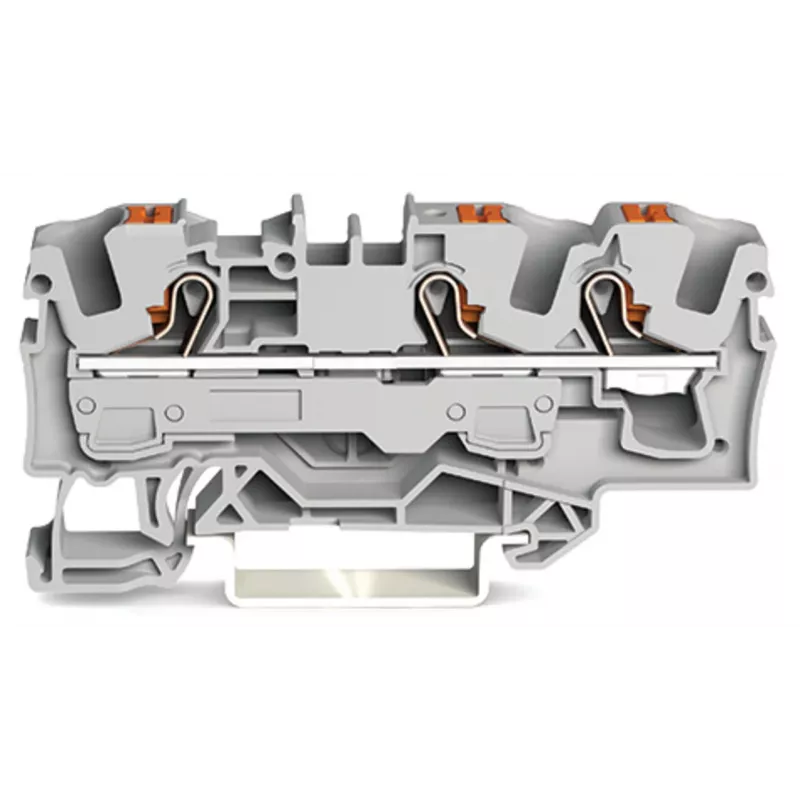

WAGO 2206-1301 Morsetto passante a 3 conduttori con pulsante 6 mm² grigio

The WAGO 2206-1301 is a high-quality 3-conductor through terminal block designed for reliable and maintenance-free electrical connections. Featuring CAGE CLAMP® S connection technology and push-button actuation, it ensures fast, secure wiring for solid, stranded, and fine-stranded conductors up to 6 mm². Ideal for industrial control cabinets and building installations, this terminal block offers a rated voltage of 1000 V (IEC) and a rated current of 41 A (IEC). Its compact design and DIN-rail mounting (TS 35) save space while providing robust performance.

Advantages

• Tool-free operation with push-button actuation for quick wiring
• Vibration-proof and corrosion-resistant CAGE CLAMP® S connection
• Clear marking and color coding for easy identification
• High temperature resistance from -35 °C to +105 °C
• UL 94 V0 flammability rating for enhanced safety

Suitable for

• Industrial control panels and automation systems
• Building electrical distribution and junction boxes
• Lighting and power supply connections
• Signal and sensor wiring in harsh environments

Key specifications

• Connection Technology: CAGE CLAMP® S
• Number of Conductors: 3
• Nominal Cross Section: 6 mm² (AWG 10)
• Conductor Types: Solid, Stranded, Fine-stranded
• Actuation: Push-button
• Mounting: DIN-rail (TS 35)
• Colour: Grey
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 41 A
• Rated Impulse Voltage (IEC): 8 kV
• Rated Voltage (UL): 600 V
• Rated Current (UL): 50 A
• Pollution Degree: 3
• Insulating Material: Polyamide (PA)
• Flammability Class: UL94 V0
• Stripping Length: 18 - 20 mm (0.71 - 0.79 inch)
• Wiring Type: Side-entry
• Operating Temperature: -35 °C to +105 °C
• Cross-section Range (Solid/Stranded): 0.5 - 10 mm² (AWG 20 - AWG 8)
• Cross-section Range (Fine-stranded): 0.5 - 6 mm² (AWG 20 - AWG 10)

Recommendations

For optimal performance, use with WAGO marking strips and appropriate end brackets. Ensure proper stripping length (18-20 mm) for secure connections. Always follow local electrical codes and manufacturer guidelines.
