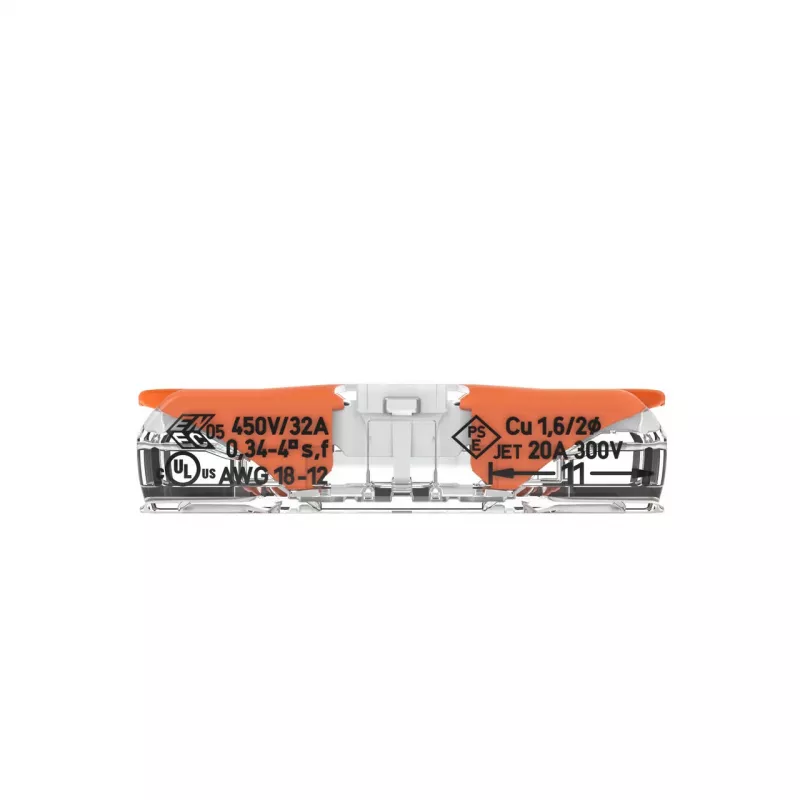

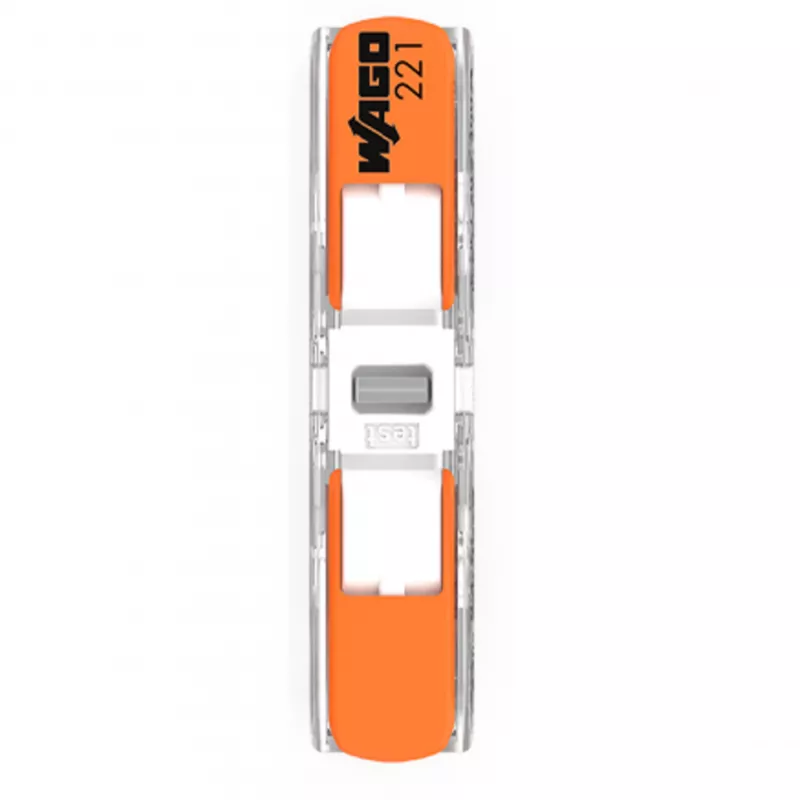

WAGO 221-2401 Connettore di giunzione inline, 2 conduttori, 0,2-4 mm², 600 pz., trasparente/arancione

The WAGO 221-2401 is a high-quality inline splicing connector designed for flexible and solid conductors. With a compact design and CAGE CLAMP® connection technology, it ensures fast, tool-free wiring. This pack contains 600 pieces, ideal for professional electrical installations.

Advantages

Tool-free lever actuation for quick and easy connection. Transparent housing allows visual inspection of conductor insertion. Suitable for solid, stranded, and fine-stranded conductors from 0.2 to 4 mm². Rated for 450 V and 32 A, meeting VDE, UL, CSA, and ENEC standards.

Suitable for

• Electrical junction boxes
• Lighting installations
• Control cabinets
• Industrial wiring

Key specifications

• Connector Type: Inline Splicing Connector
• Number of Connection Points: 2
• Conductor Cross-Section (Solid): 0.2 - 4 mm² (24 - 12 AWG)
• Conductor Cross-Section (Stranded/Flexible): 0.2 - 4 mm² (24 - 12 AWG)
• Nominal Voltage (EN): 450 V
• Nominal Current (EN): 32 A
• Rated Impulse Voltage: 4 kV
• Connection Technology: CAGE CLAMP®
• Actuation Type: Lever
• Strip Length: 11 mm
• Insulation Material: Polycarbonate (PC)
• Color: Transparent / Orange
• Operating Temperature Range: -20 to +85 °C
• Flammability Rating: UL 94 V-2
• Dimensions (L x W x H): 35.5 x 8.9 x 8.1 mm
• Pack Quantity: 600 pieces
• Approvals: VDE, UL, CSA, ENEC

Recommendations

For reliable and efficient wiring, use WAGO 221 series connectors. Always ensure proper strip length and full conductor insertion. Suitable for use with solid and stranded wires up to 4 mm².
