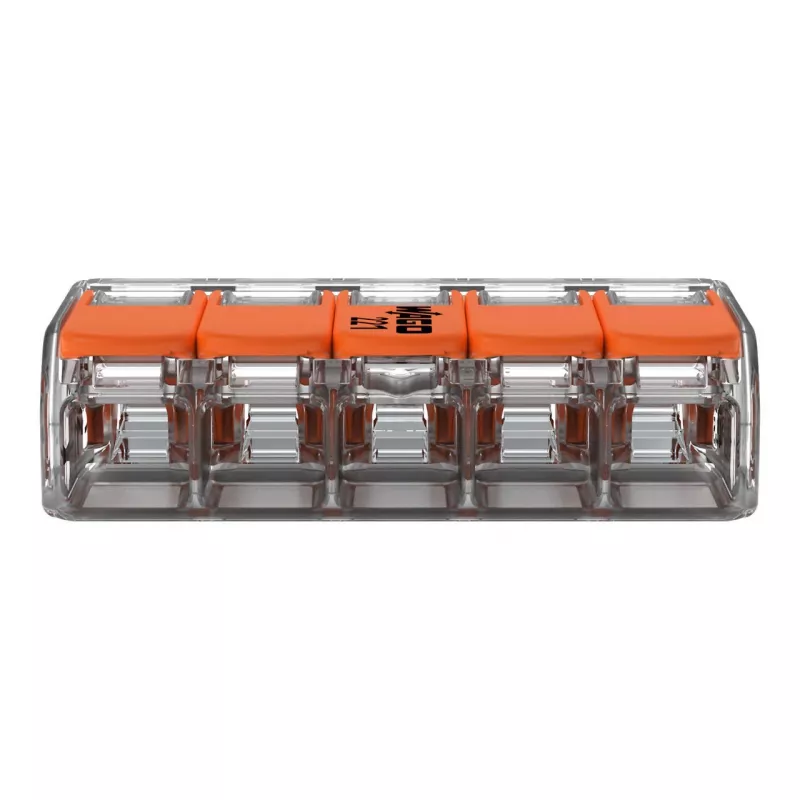

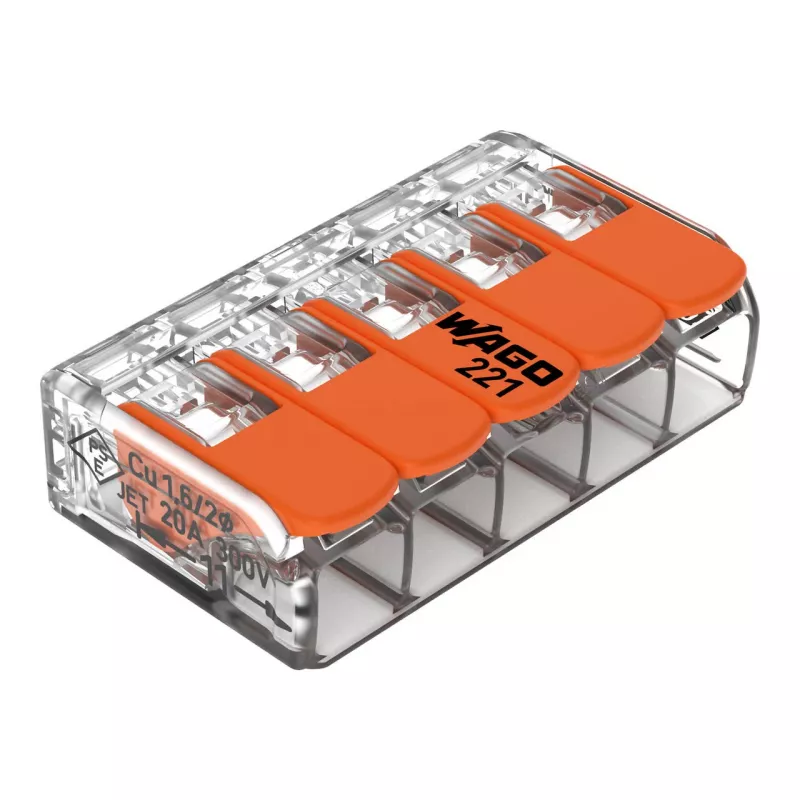

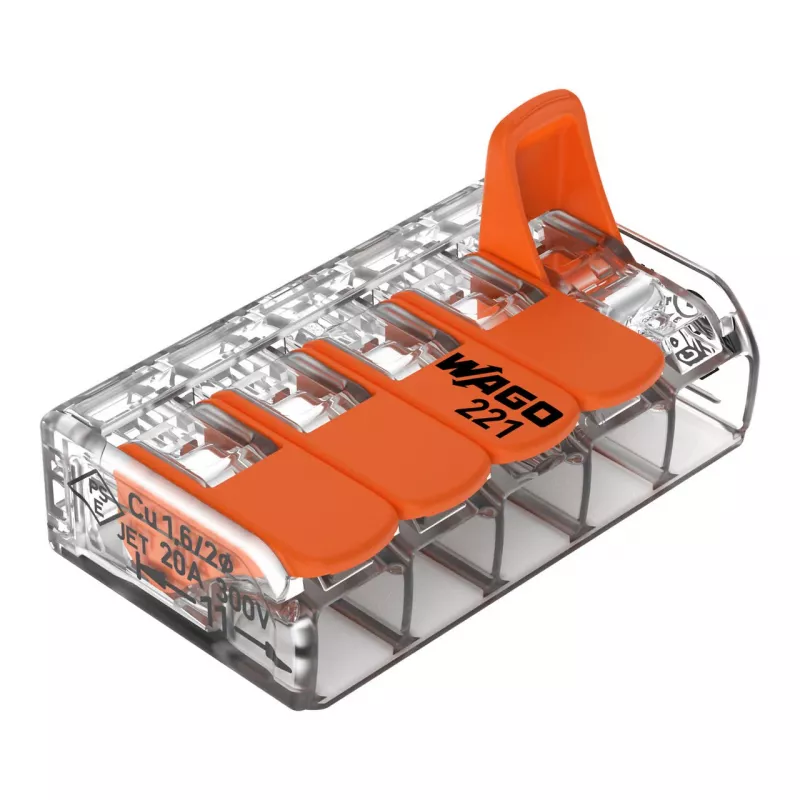

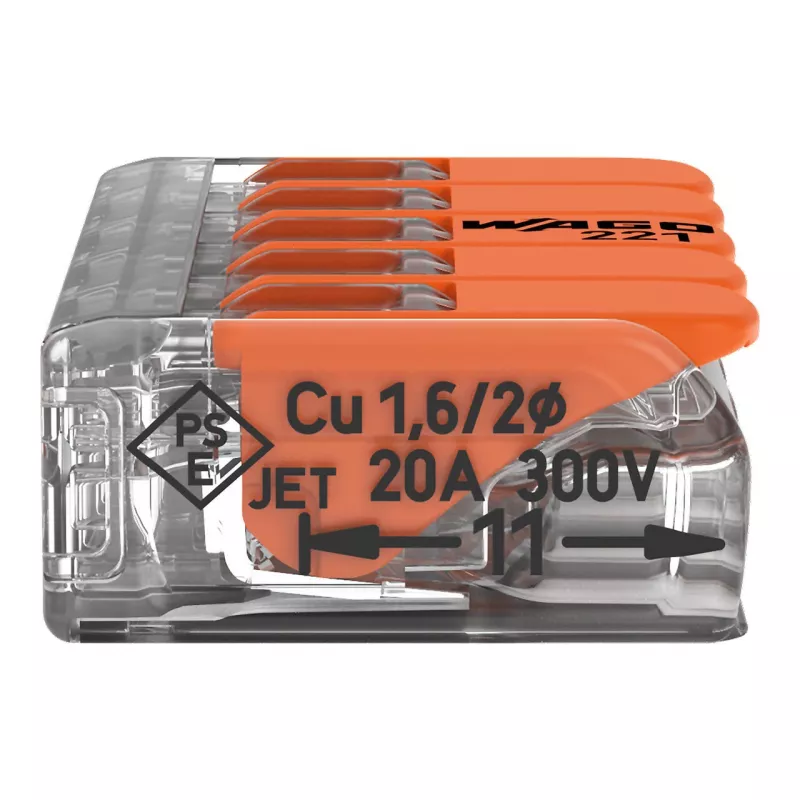

WAGO 221-415 COMPACT morsetto di collegamento 5 conduttori 4 mm², confezione da 25

The WAGO 221-415 COMPACT splicing connector joins 5 conductors up to 4 mm² without tools using CAGE CLAMP® technology and an operating lever. It handles solid, stranded, and fine-stranded wires from 0.14 mm² to 4 mm² (24–12 AWG) and is rated for 450 V and 32 A.

Advantages

Transparent housing allows visual inspection of the connection, and the orange levers provide clear actuation. The connector is reusable and supports quick, maintenance-free installation.

Suitable for

• Junction boxes and distribution boxes
• Lighting installations
• Building wiring and industrial control panels

Key specifications

• Connector type: Splicing connector
• Series: WAGO 221 COMPACT
• Number of conductors: 5
• Conductor cross-section: 0.14–4 mm² (24–12 AWG)
• Rated voltage: 450 V
• Rated current: 32 A
• Connection technology: CAGE CLAMP®
• Actuation: Operating lever
• Strip length: 11 mm / 0.43 inch
• Operating temperature: -20 °C to +85 °C
• Housing material: Polycarbonate
• Colour: Transparent housing, orange levers
• Dimensions (single unit): 29.9 x 29.9 x 8.3 mm
• Pack quantity: 25 pieces

Recommendations

For reliable, tool-free splicing in confined spaces, the WAGO 221-415 COMPACT is an excellent choice. Its transparent body and reusable design simplify inspection and rework.
