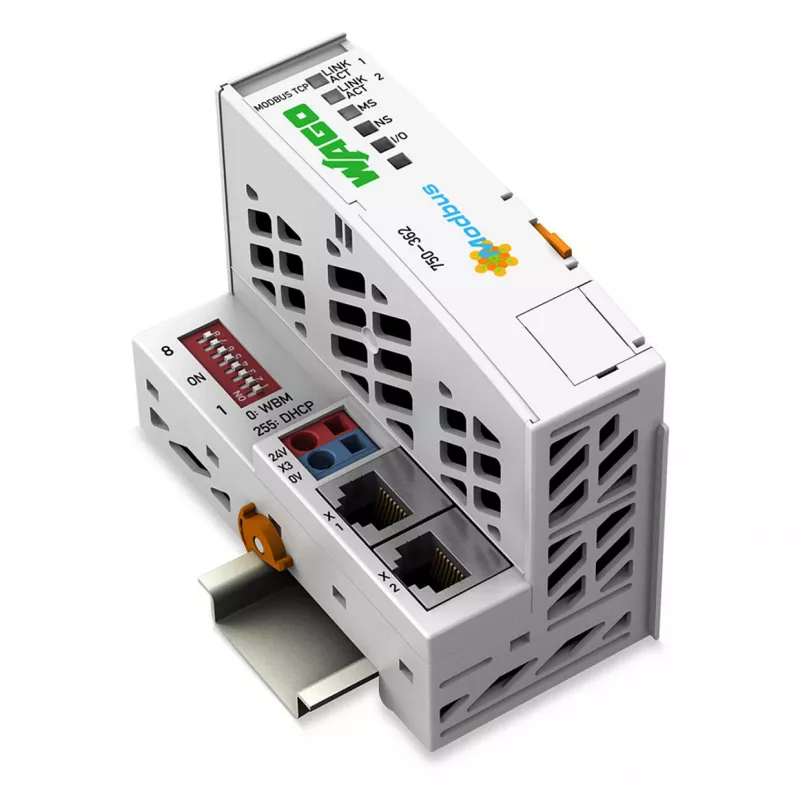

WAGO 750-362 Accoppiatore di bus di campo Modbus TCP - 4ª generazione

The WAGO 750-362 is a 4th generation fieldbus coupler for Modbus TCP, designed for seamless integration into industrial automation networks. It provides reliable communication between field devices and higher-level control systems via Ethernet.

Advantages

High-performance Modbus TCP coupler with two RJ-45 ports for daisy-chaining; supports up to 64 I/O modules; robust DIN-rail mounting; comprehensive web-based management and diagnostics.

Suitable for

• Industrial automation and control systems
• Building automation
• Process control
• Machine building

Key specifications

• Fieldbus protocol: Modbus TCP

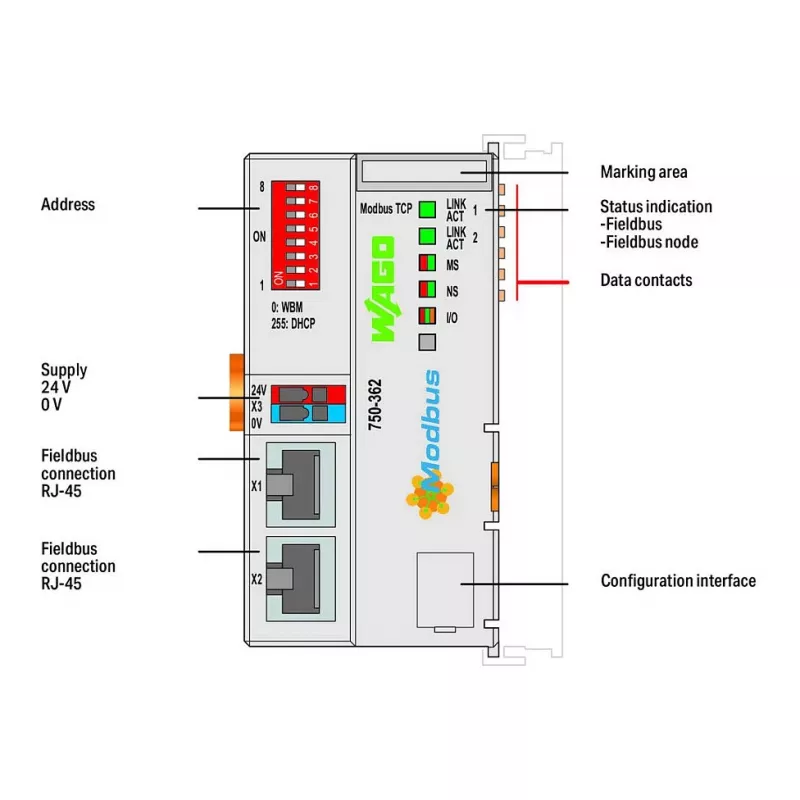

• Ethernet interfaces: 2 x RJ-45, 10/100 Mbit/s

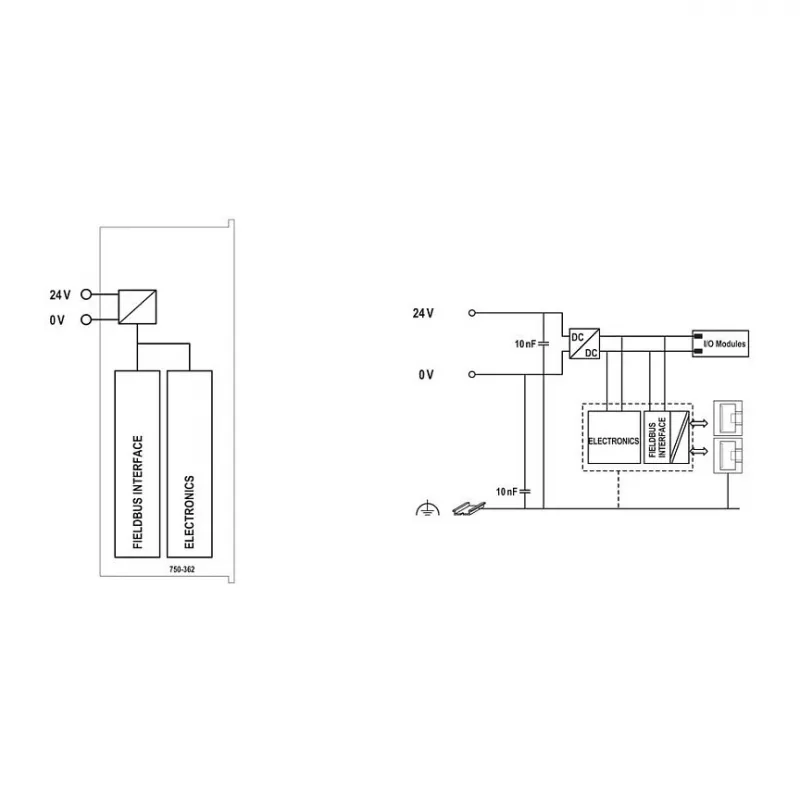

• Supply voltage: 24 VDC (18 ... 30 V)
• Max. I/O modules: 64
• Internal bus supply current: 1700 mA
• Input current typ.: 500 mA at 24 V
• Mounting: DIN-rail 35 mm
• Operating temperature: 0 ... 55 °C
• Protection class: IP20
• Housing material: Polycarbonate, Polyamide 6.6
• Configuration: Web-based management, WAGO-I/O-CHECK
• Supported services: HTTP, BootP, DHCP, DNS, SNTP, FTP, SNMP
• Status indicators: LEDs for Power, Fieldbus, I/O

Recommendations

For optimal performance, use with WAGO I/O modules and a regulated 24 VDC power supply. Ensure proper grounding and shielding according to EMC guidelines.
