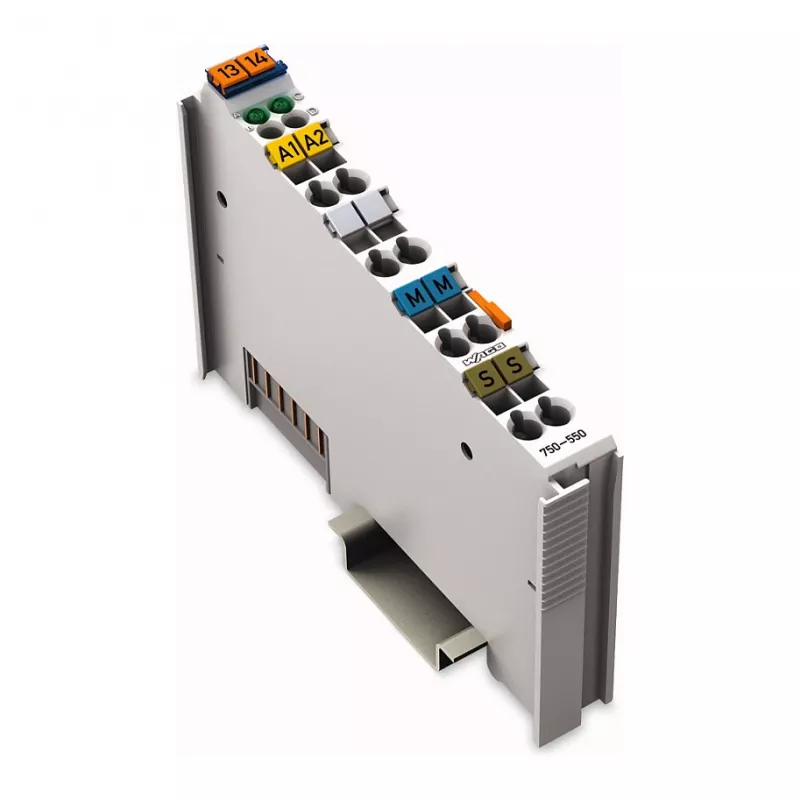

WAGO 750-550 modulo di uscita analogica a 2 canali 0-10V, grigio chiaro

Deliver precise analog voltage signals in industrial automation with the WAGO 750-550, a 2-channel analog output module engineered for 0–10 V control tasks. Its 12-bit resolution and ±0.2% accuracy ensure reliable signal integrity for actuators, valves, and drives.

Overview

Part of the WAGO-I/O-SYSTEM 750, this module provides two galvanically isolated analog outputs with short-circuit and overload protection per channel. CAGE CLAMP® connection technology allows tool-free wiring of solid or stranded conductors from 0.08 to 2.5 mm², reducing installation time and ensuring vibration-resistant connections.

What stands out

• Two independent 0–10 V output channels with 12-bit resolution
• 500 V system/field isolation for safe operation in mixed-voltage environments
• Short-circuit and overload protection on every channel
• Tool-free CAGE CLAMP® terminals accept 0.08–2.5 mm² conductors
• Compact 9 mm width saves space on the DIN rail

Technical details

• Output signal: Voltage, 0–10 V DC
• Resolution: 12 bits
• Accuracy: < ±0.2% of full scale (typical)
• Isolation: 500 V system/field
• Connection technology: CAGE CLAMP®
• Conductor cross-section: 0.08–2.5 mm²

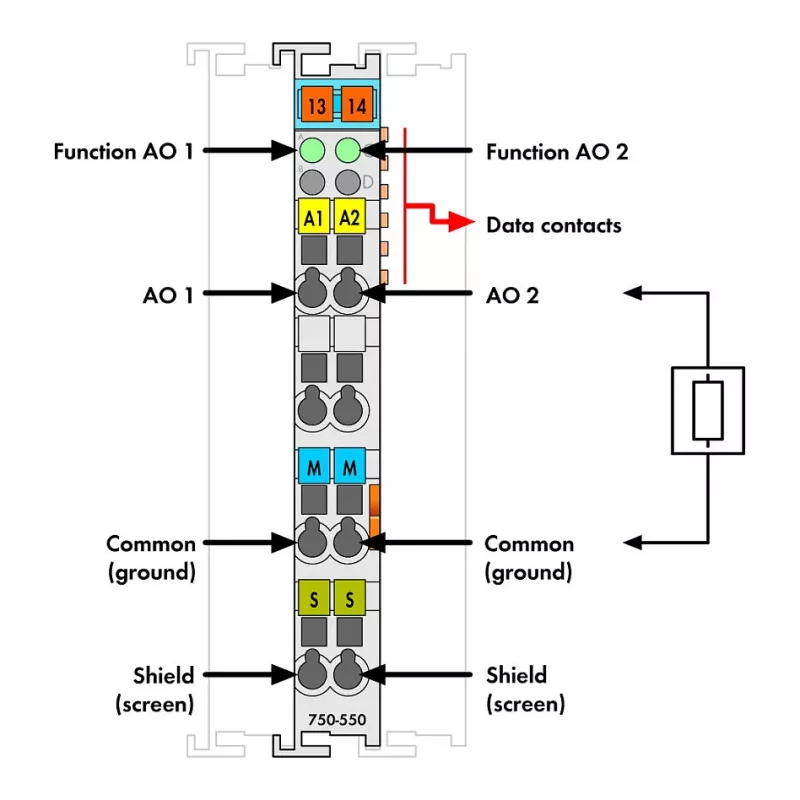

• Wiring type: 4-wire
• System power supply: 24 VDC via system bus
• Internal current consumption: 30 mA
• Field supply current consumption: max. 100 mA per channel
• Data width: 2 x 16-bit data (output)
• Operating temperature: 0 to +55 °C
• Mounting: DIN-35 rail
• Housing color: Light gray

Our verdict

The WAGO 750-550 is a dependable choice for distributed analog output applications, combining high accuracy, robust protection, and space-saving design.
