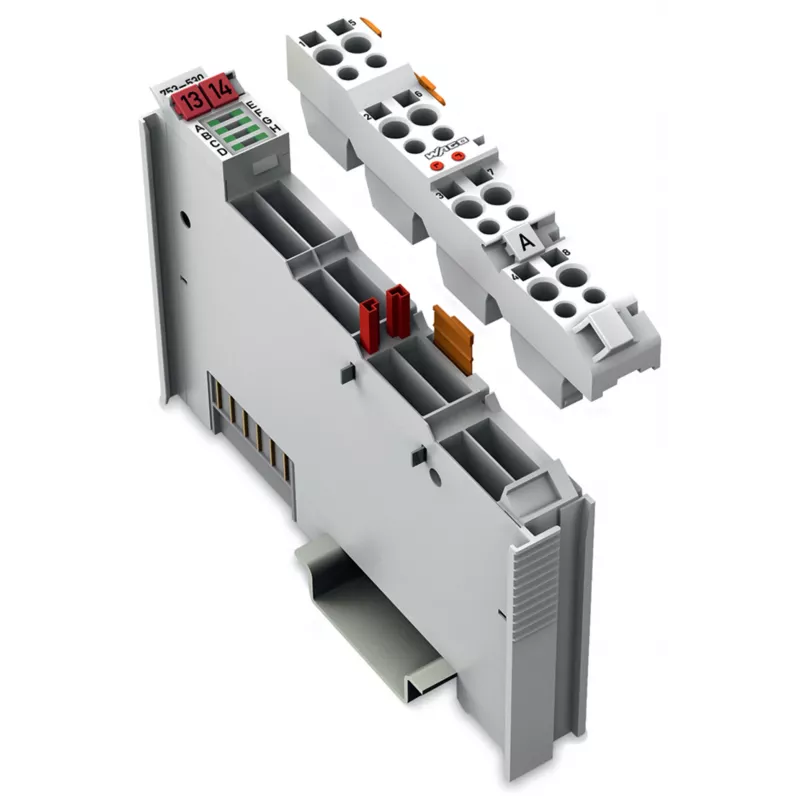

WAGO 753-530 modulo di uscita digitale, 8 canali, 24 VDC, 0,5 A, PNP, CAGE CLAMP, guida DIN

The WAGO 753-530 is a high-performance digital output module designed for industrial automation applications. With 8 channels, each capable of switching up to 0.5 A at 24 VDC, this module provides reliable control of actuators, indicators, and other field devices. Its compact design (12 x 100 x 69 mm) and DIN-rail mounting make it ideal for space-constrained control cabinets.

Advantages

• 8 digital outputs with PNP transistor technology
• High switching frequency up to 1 kHz
• Integrated short-circuit and overload protection
• LED status indication per channel for easy diagnostics
• CAGE CLAMP® connection technology for fast, vibration-proof wiring
• Powered via system bus, reducing wiring effort

Suitable for

• Automation of machinery and production lines
• Building automation systems
• Process control applications
• Replacement or expansion of existing WAGO 750/753 series I/O systems

Key specifications

• Number of channels: 8
• Output type: Digital, transistor (PNP)
• Output voltage: 24 VDC
• Max output current per channel: 0.5 A
• Total output current: 4 A
• Isolation voltage: 500 V (system/field)
• Switching frequency: 1 kHz
• Connection technology: CAGE CLAMP®
• Mounting type: DIN-rail 35 mm
• Short-circuit protection: Yes
• Overload protection: Yes
• Status indication: LED per channel
• Power supply: Via system bus
• Operating temperature: 0 to 55 °C
• Module type: Digital output module
• Bit width: 8-bit

Recommendations

For optimal performance, pair this module with a compatible WAGO bus coupler or controller. Ensure proper system bus power supply to support the total output current. Always follow local electrical codes and manufacturer guidelines for installation.
