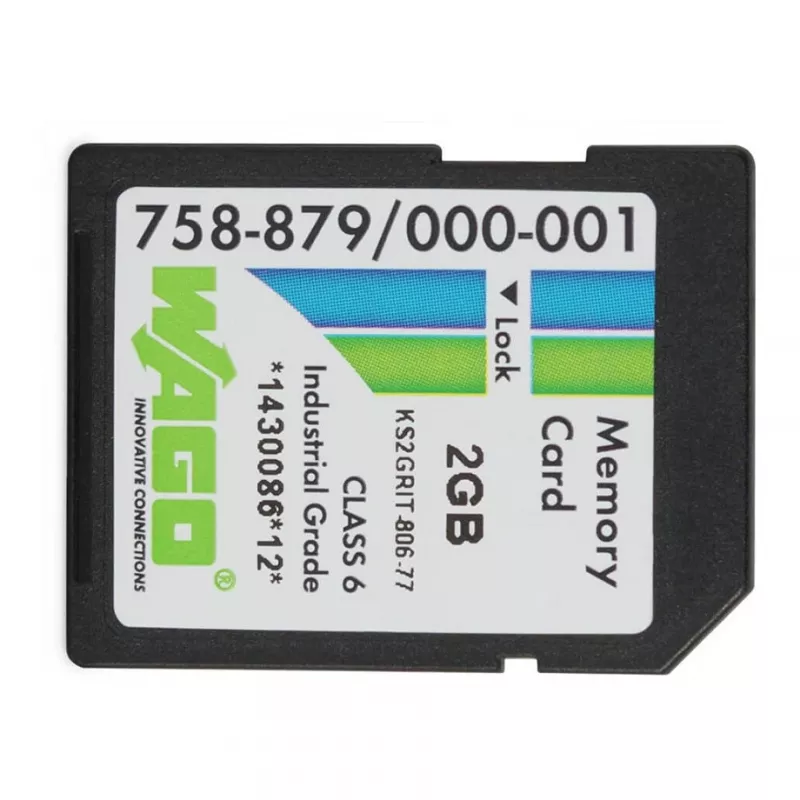

WAGO 758-879/000-001 - 2 GB - SD - NAND - 20 MB/s - 17 MB/s - nero

The WAGO 758-879/000-001 is a high-quality industrial-grade SD memory card designed for use with WAGO PFC controllers. With a storage capacity of 2 GB and SLC NAND flash memory, it offers reliable data storage and fast read/write speeds of 20 MB/s and 17 MB/s respectively. This black memory card is built to withstand harsh industrial environments, with an operating temperature range of -40 to +85 °C and high shock and vibration resistance. It is RoHS and REACH certified, ensuring compliance with environmental standards.

Advantages

Industrial-grade reliability for critical automation applications. SLC NAND technology ensures long endurance and data retention. Wide temperature range and robust construction make it suitable for demanding environments.

Suitable for

• WAGO PFC100 and PFC200 controllers
• Industrial automation and PLC systems
• Data logging and program storage in harsh conditions

Key specifications

• Storage Capacity: 2 GB
• Card Type: SD (Standard Capacity)
• Flash Memory Type: SLC NAND
• Max Read Speed: 20 MB/s
• Max Write Speed: 17 MB/s
• Color: Black
• Operating Temperature: -40 to +85 °C
• Storage Temperature: -40 to +85 °C
• Supply Voltage: 3.3 V
• Shock Resistance: 1000 G (max. 0.5 ms)
• Vibration Resistance: 20 G (10 Hz ... 2000 Hz)
• Data Retention: 10 years
• Error Correction Code (ECC): Yes
• Form Factor: Standard SD Card
• Certifications: RoHS, REACH

Recommendations

For optimal performance, use this memory card with compatible WAGO controllers. Ensure proper insertion and formatting before first use. This product is designed for industrial applications and may not be suitable for consumer electronics.
