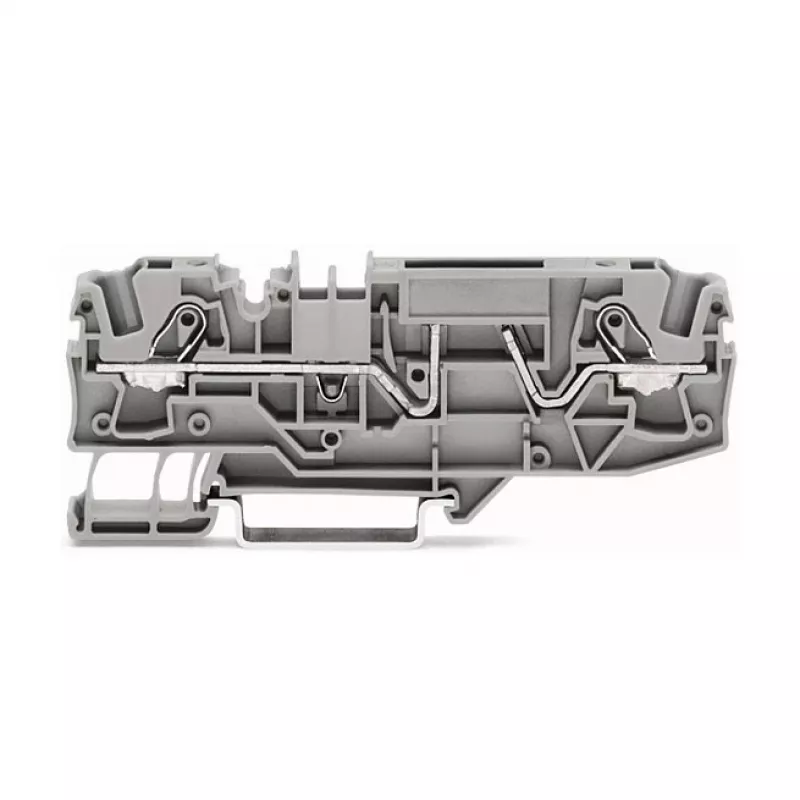

WAGO morsetto portafusibile a più conduttori 2 conduttori grigio 2006-1681

The WAGO 2006-1681 fuse terminal block is a high-quality, 2-conductor component designed for secure and reliable fuse protection in industrial and commercial electrical installations. Featuring the innovative CAGE CLAMP® connection technology, it ensures fast, vibration-proof, and maintenance-free wiring. This grey terminal block accepts miniature metric fuses (5 x 20 mm) and is rated for 800 V and 6.3 A, making it suitable for a wide range of applications.

Advantages

• CAGE CLAMP® connection for tool-free, secure wiring
• Compact design saves space on DIN-35 rail
• Clear marking and color coding for easy identification
• High temperature resistance and robust polyamide housing

Suitable for

• Industrial control panels
• Building automation systems
• Machine and plant engineering
• Power distribution and protection circuits

Key specifications

• Connection Technology: CAGE CLAMP®
• Number of Conductors: 2
• Fuse Type: Miniature Metric Fuse 5 x 20 mm
• Nominal Voltage (IEC): 800 V
• Nominal Current (IEC, with fuse): 6.3 A
• Nominal Cross Section: 6 mm² (AWG 10)
• Solid Conductor Size: 0.25 - 6 mm² (22 - 10 AWG)
• Fine-Stranded Conductor Size: 0.25 - 6 mm² (22 - 10 AWG)
• Stripping Length: 10 - 12 mm
• Mounting Type: DIN-35 Rail
• Color: Grey
• Insulating Material: Polyamide (PA 66)
• Operating Temperature: -35 to +85 °C
• Pollution Degree: 3
• Rated Surge Voltage: 8 kV
• Number of Potentials: 1
• Actuation Type: Operating Tool
• Connection Position: Side-entry

Recommendations

For optimal performance, use with WAGO operating tools and appropriate miniature fuses. Ensure proper mounting on a DIN-35 rail and adhere to local electrical codes.
