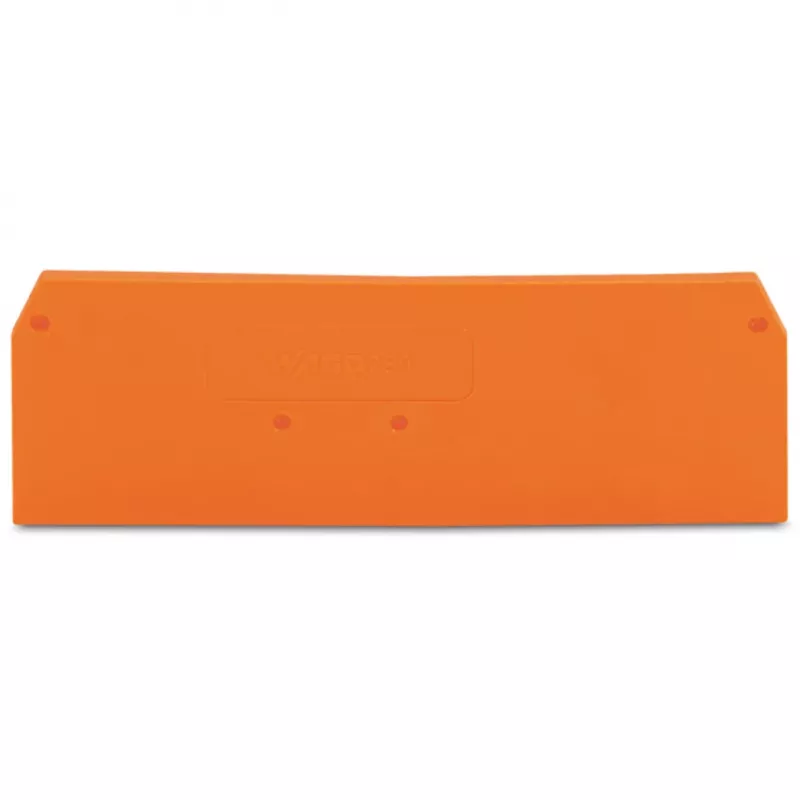

WAGO piastra terminale/intermedia 280-315 arancione

The WAGO 280-315 End/Intermediate Plate is an essential accessory for the WAGO 280 Series terminal blocks, designed to provide electrical isolation and visual separation between adjacent terminal blocks. Crafted from high-quality Polyamide 66 (PA 66) with a UL 94 V-0 flammability rating, this plate ensures reliable performance in demanding industrial environments. Its snap-on mounting method allows for quick and secure installation onto DIN rails, making it a versatile solution for control cabinets and junction boxes.

Advantages

This end/intermediate plate offers clear visual identification of circuit groups, enhancing safety during maintenance and troubleshooting. The orange color provides high visibility, reducing the risk of misconnection. Its halogen-free and RoHS-compliant construction supports environmentally friendly installations.

Suitable for

• Electrical isolation in WAGO 280 Series terminal block assemblies
• Visual separation of different circuits or voltage levels
• Use in control panels, distribution boards, and industrial automation systems

Key specifications

• Product Type: End/Intermediate Plate
• Series Compatibility: WAGO 280 Series Terminal Blocks
• Color: Orange
• Material: Polyamide 66 (PA 66)
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -35 to +105 °C
• Mounting Method: Snap-on
• Thickness: 1.5 mm
• Height (from DIN rail): 32.5 mm
• Depth (from DIN rail): 64 mm
• Function: Electrical isolation and visual separation
• RoHS Status: Compliant
• Halogen-Free: Yes
• Insulation Group: I (IEC 60664)
• Country of Origin: Germany

Recommendations

For optimal performance, use this end/intermediate plate with WAGO 280 Series terminal blocks. Ensure proper snap-on installation onto a standard DIN rail. Suitable for applications requiring reliable isolation and clear circuit identification.
