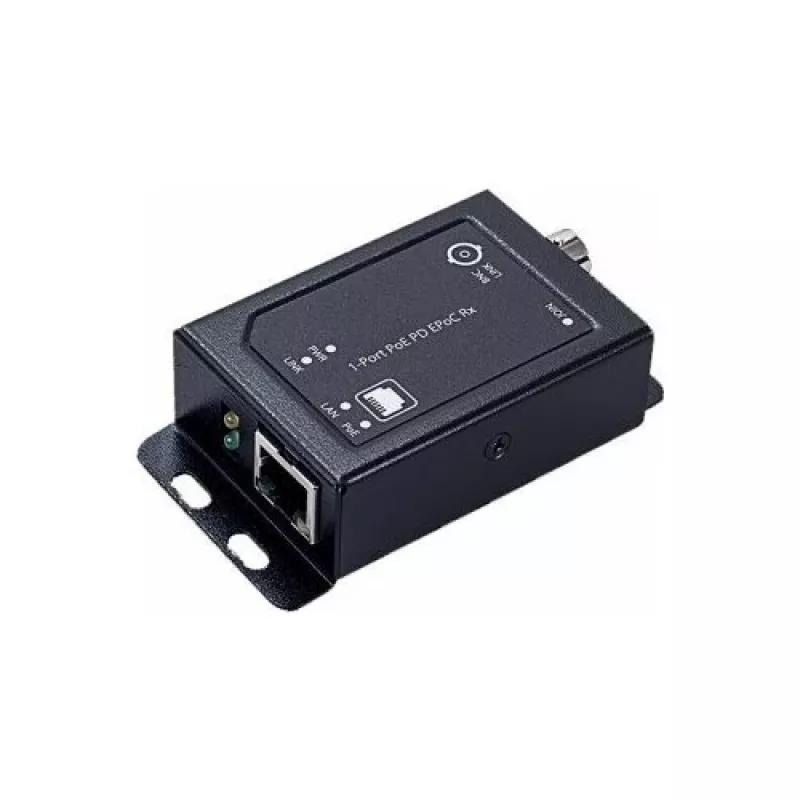

Wantec 2wIP E Adattatore PoE-BNC Switch Side per Power over PoE

The Wantec 2wIP E Adapter PoE-BNC Switch Side is a high-performance IP over Coax extender designed to transmit Ethernet and Power over PoE over coaxial cable. This switch-side unit connects to your network switch via RJ45 and converts the signal to BNC, enabling long-distance transmission up to 800 meters over RG6 coax. It supports 10/100 Mbps Fast Ethernet and IEEE 802.3af/at PoE, providing both data and power to a remote camera-side adapter. Ideal for extending IP cameras or other network devices in legacy coax installations, this metal-housed adapter offers plug-and-play installation with LED indicators for power and link status.

Advantages

Extends network reach up to 800m over existing coax, eliminating the need for new cabling. PoE-powered from the switch, no local power supply required. Rugged metal housing ensures durability in demanding environments. Plug-and-play design for quick deployment.

Suitable for

• Extending IP cameras over coaxial cable in surveillance systems
• Upgrading analog CCTV systems to IP without rewiring
• Connecting remote network devices where Ethernet cable length is insufficient

Key specifications

• Product Type: IP over Coax Extender (Switch Side)
• Connectivity Technology: Wired
• Input Interface: 1x RJ45 (Ethernet)
• Output Interface: 1x BNC (Coaxial)
• Ethernet Standard: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
• PoE Standard: IEEE 802.3af/at (PoE/PoE+)
• Data Transfer Rate: 10/100 Mbps
• Max. Coax Cable Length (RG59): 500 m
• Max. Coax Cable Length (RG6): 800 m
• Power Input: Power over Ethernet (PoE) from network switch
• Power Output: PoE over Coax to remote adapter
• LED Indicators: Power, Link/Activity
• Housing Material: Metal
• Operating Temperature: -10°C to 50°C
• Installation: Plug & Play

Recommendations

For optimal performance, use with the Wantec 2wIP E Adapter PoE-BNC Camera Side (sold separately). Ensure your network switch supports PoE (802.3af/at) to power this adapter. For distances beyond 800m, consider using a signal booster or fiber optic solution.
