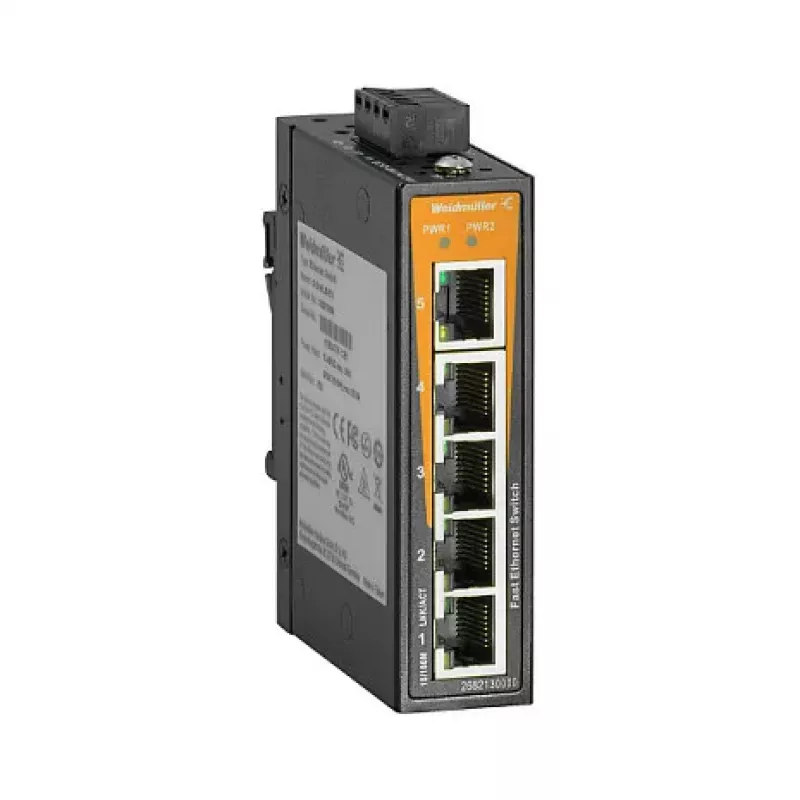

WEIDMUELLER IE-SW-EL05-5TX Switch industriale Fast Ethernet unmanaged, 5x RJ45, guida DIN

The WEIDMUELLER IE-SW-EL05-5TX is a compact, unmanaged Fast Ethernet industrial switch designed for reliable network connectivity in harsh environments. With 5 RJ45 ports supporting 10/100 Mbps, this switch provides plug-and-play operation, making it ideal for expanding industrial networks without complex configuration. Its rugged metal housing, IP30 protection, and wide operating temperature range ensure dependable performance in demanding applications.

Advantages

Robust and reliable: The switch features a metal housing with IP30 protection, suitable for industrial environments. It supports redundant power input (12-48 V DC) for increased uptime. Energy-efficient design with low power consumption (max 1.44 W). Plug-and-play installation with no software required.

Suitable for

• Industrial automation networks
• Factory floor connectivity
• Machine-to-machine communication
• Remote monitoring systems
• Transportation and infrastructure

Key specifications

• Network standard: Fast Ethernet (10/100 Mbps)
• Number of ports: 5 x RJ45
• Management type: Unmanaged
• Mounting: DIN rail
• Input voltage: 12-48 V DC (redundant)
• Operating temperature: -10 to 60 °C
• Storage temperature: -40 to 85 °C
• Housing material: Metal
• IP protection class: IP30
• Switching capacity: 1 Gbps
• MAC address table: 1K entries
• Buffer memory: 512 Kbit
• Flow control: IEEE 802.3x (full-duplex), back-pressure (half-duplex)
• LED indicators: Power, Link/Activity per port
• Power consumption: Max. 1.44 W

Recommendations

For optimal performance, use shielded twisted-pair (STP) cables in high-interference environments. The switch can be powered via a redundant power supply for critical applications. Ensure proper ventilation when mounting in enclosed spaces.
