WEISS DRS48 Fascetta doppia per tubo DRS 48 (3023)

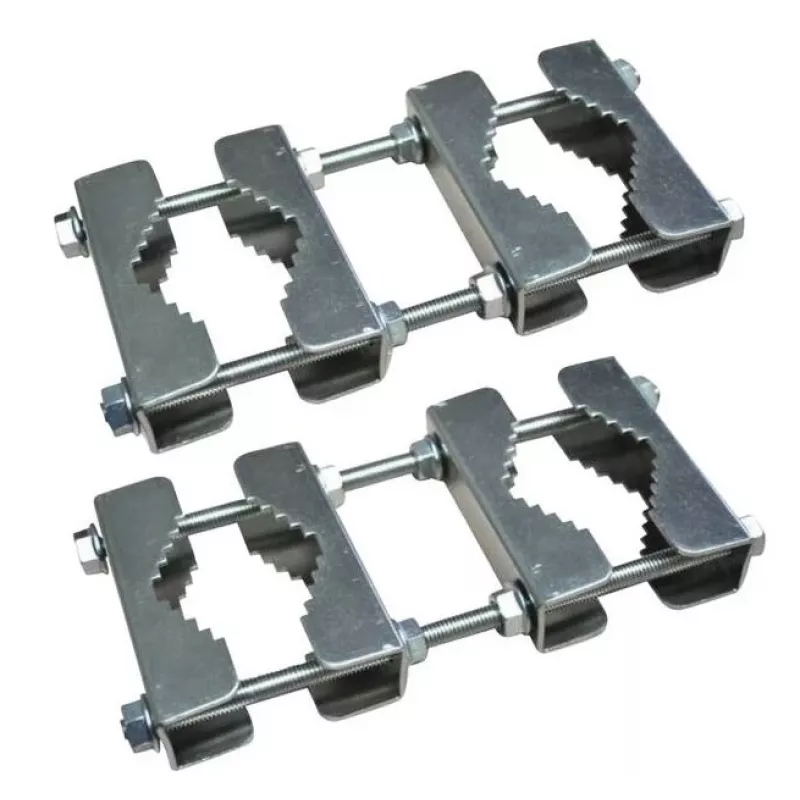

The WEISS DRS48 Double Pipe Clamp securely fastens two parallel pipes with outer diameters from 15 mm to 18 mm. Its galvanized steel construction provides standard corrosion resistance, making it suitable for a wide range of installation environments.

Advantages

This clamp features a robust steel body with galvanized surface treatment, ensuring durability and resistance to corrosion. The double design allows simultaneous mounting of two pipes, reducing installation time and hardware requirements.

Suitable for

• Fastening parallel pipes in plumbing, heating, and industrial applications
• Pipes with outer diameter between 15 mm and 18 mm
• Environments with temperatures from -30°C to +100°C

Key specifications

• Type: Double pipe clamp
• Material: Steel, galvanized
• Pipe diameter: 15–18 mm
• Mounting hole diameter: 8.5 mm (for M8 screw)
• Overall dimensions: 80 × 20 × 40 mm

Recommendations

For secure installation, use an M8 screw appropriate for the mounting surface. Ensure the pipe diameter is within the specified range to avoid excessive stress on the clamp.
