WEIß WHS350048FZ supporto a parete acciaio 350mm (39018)

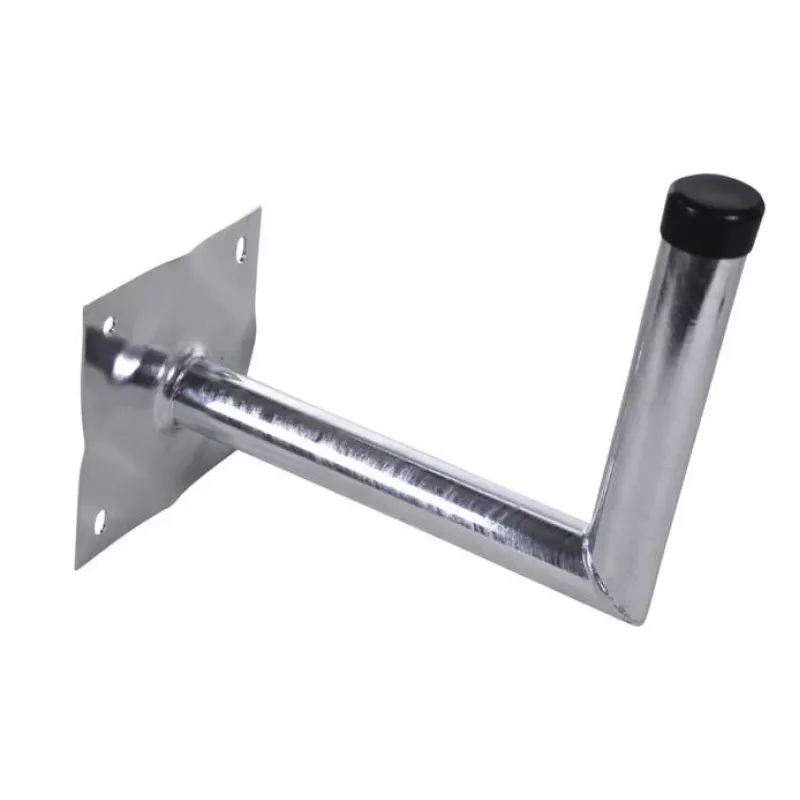

Wall bracket made of steel with hot-dip galvanized finish, offering high corrosion resistance for indoor and outdoor use. Supports heavy loads up to 75 kg per bracket with a 350 mm depth from the wall.

Advantages

Hot-dip galvanized steel provides excellent corrosion resistance, making it suitable for humid or outdoor environments. The bracket's robust construction and 75 kg load capacity ensure reliable support for shelving and heavy items. Elongated wall-side mounting holes allow for easy alignment during installation.

Suitable for

• Heavy-duty shelving in workshops, garages, and warehouses
• Outdoor wall mounting where weather resistance is required
• Supporting shelves, countertops, or equipment with significant weight

Key specifications

• Material: Steel
• Finish: Hot-dip galvanized (FZ)
• Depth from wall: 350 mm
• Height against wall: 200 mm
• Profile width: 40 mm
• Material thickness: 5 mm
• Load capacity per bracket: 75 kg
• Wall-side mounting holes: 3 elongated holes (approx. 11 x 20 mm)
• Shelf-side mounting holes: 2 round holes (approx. 11 mm diameter)
• Colour: Metallic silver / grey

Recommendations

For secure mounting, use appropriate screws and wall anchors suitable for the wall material. Ensure both brackets are level and aligned before final tightening.
