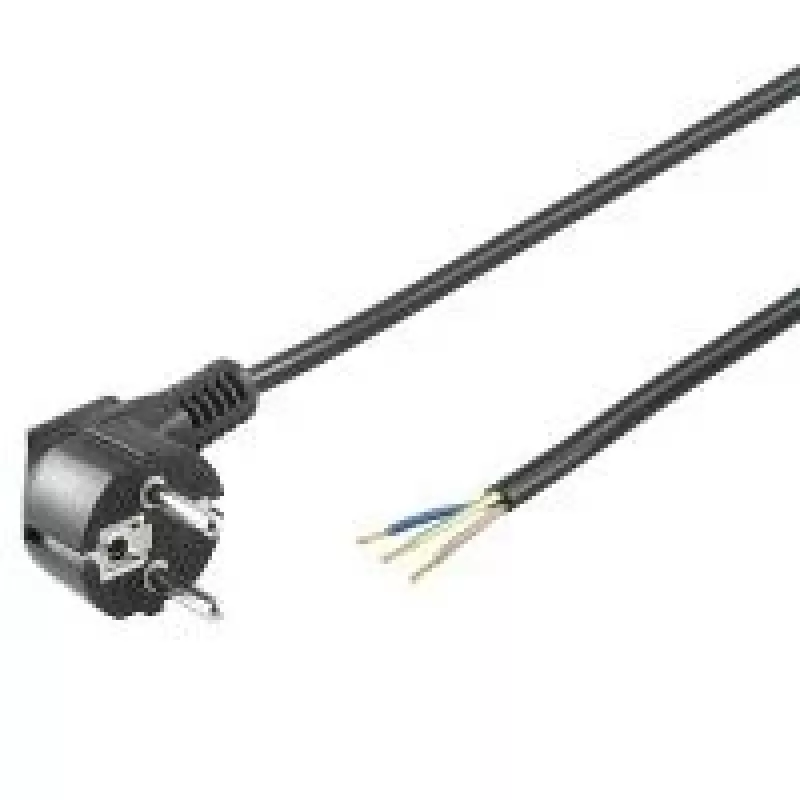

Wentronic Goobay Cavo di alimentazione Schuko angolare, estremità aperta, 3 m, nero 96033

When you need a custom-length power connection for repairs, DIY projects, or self-assembly, this 3-metre cable with an angled Schuko plug and open wire ends gives you the freedom to wire it exactly as required. The 90° angled plug keeps the cable close to the wall, saving space behind furniture or appliances.

Who is it for

Electricians, technicians, and advanced DIYers who build or repair electrical equipment and need a reliable, high-quality cable with a standard CEE 7/7 plug on one end and bare conductors on the other for custom termination.

Main features

• Angled CEE 7/7 (Schuko) plug, 90° orientation for flush mounting in tight spaces
• Open cable end for individual wiring, ideal for self-assembly and repairs
• 3 m length, H05VV-F cable type with 3 conductors, 1.5 mm² cross-section
• Rated for 250 V AC, 16 A, suitable for a wide range of applications
• PVC jacket and insulation, copper conductors for reliable conductivity

Specifications

• Cable type: H05VV-F
• Number of conductors: 3
• Conductor cross-section: 1.5 mm²
• Connector 1: CEE 7/7 (Schuko), male, angled (90°)
• Connector 2: Open end
• Cable length: 3 m
• Rated voltage: 250 V AC
• Rated current: 16 A
• Jacket material: PVC
• Conductor material: Copper
• Insulation material: PVC
• Operating temperature range: -5 °C to +70 °C
• Product series: Goobay Power

Tips

Always ensure the cable is disconnected from power before wiring the open ends. Use appropriate connectors or terminals and follow local electrical codes. The angled plug is particularly useful behind wall-mounted TVs or kitchen appliances where space is limited.
