Wiha tronchese laterale per elettronica Z 41 1 03 138mm ESD 26818

With induction-hardened cutting edges rated at 64 HRC, the Wiha Electronic Side Cutter Z 41 1 03 delivers precise flush cuts on soft wires up to 1.0 mm diameter in electronics work.

Overview

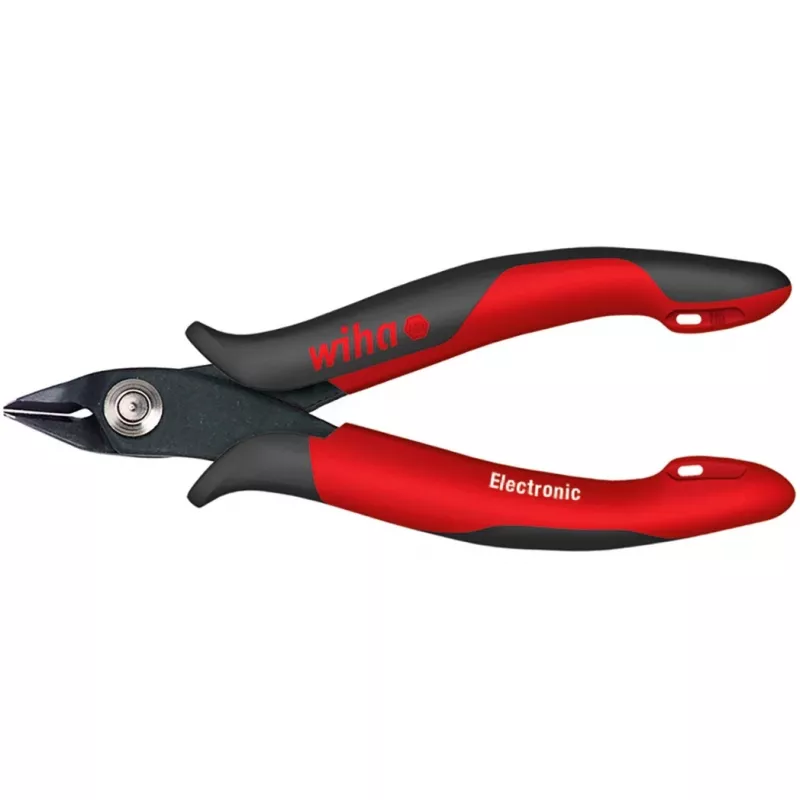

The Wiha Electronic Side Cutter Z 41 1 03 is a precision tool engineered for flush cutting of soft wires in electronics applications. Its pointed head and box joint provide stability and access in tight spaces, while the opening spring reduces hand fatigue during repetitive tasks. The polished head is rust-protected, and the ESD-safe dissipative handles meet IEC 61340-5-1, protecting sensitive components from electrostatic discharge.

What stands out

• Induction-hardened cutting edges (approx. 64 HRC) for long-lasting sharpness
• Flush cut (without bevel) for clean, precise cuts on soft wires
• ESD-safe dissipative handles compliant with IEC 61340-5-1
• Opening spring for effortless, repetitive cutting
• Box joint for smooth, precise operation

Technical details

• Overall length: 138 mm
• Head length (L3): 17 mm
• Head width (W3): 11 mm
• Head thickness (T1): 7 mm
• Material: High-quality C 60 tool steel
• Cutting capacity (soft wire): Ø 1.0 mm
• Standard: DIN ISO 9654
• Surface finish: Polished head, rust-protected

Our verdict

A professional-grade side cutter that combines precision, durability, and ESD safety for electronics assembly and repair.
