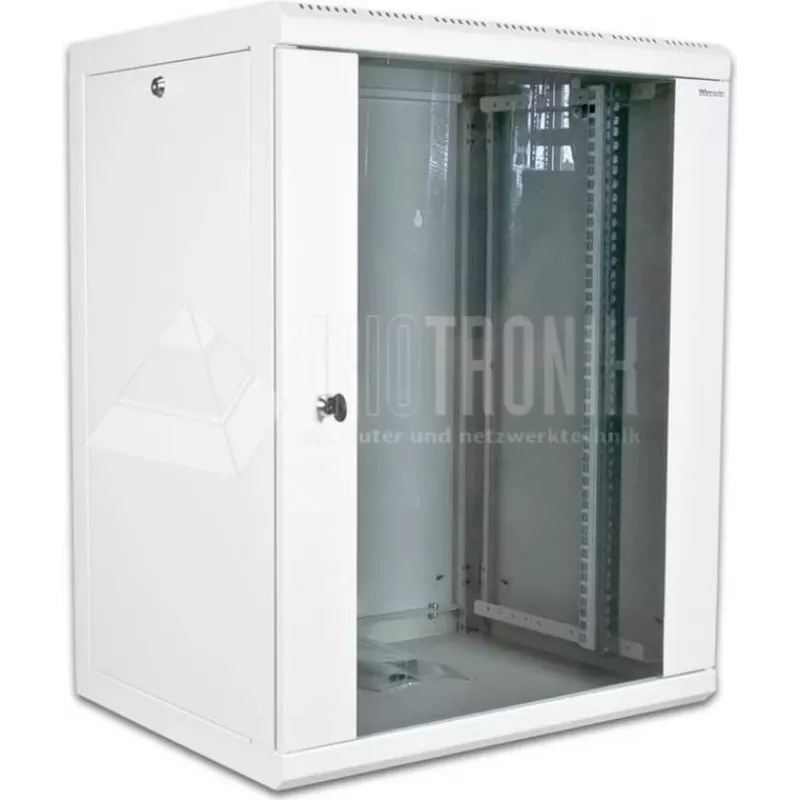

Wirewin case a parete 19 pollici, monoblocco, 600x560mm, 9U (WCAB 600X560X9U)

The WCAB 600X560X9U from Wirewin is a single-section wall-mount cabinet that combines a compact footprint with a 9U capacity, making it a practical choice for small network installations where floor space is limited. Its 600 mm width and 560 mm depth provide room for standard 19-inch equipment while keeping the cabinet close to the wall.

Highlights

• 9U of rack space for networking gear
• Wall-mount design frees up floor area
• Tempered glass front door with steel frame
• Removable, lockable side panels for easy access
• Adjustable 19-inch mounting rails
• Load capacity of 60 kg

In daily use

The cabinet is pre-assembled, so it can be mounted and put into service quickly. The front door and side panels are secured with a key lock, helping to prevent unauthorized access. Cable entry points on the top and bottom with brush strips allow clean cable routing while keeping dust out. Passive ventilation slots are built in, and the cabinet is ready for optional fan units if active cooling is needed.

Full specifications

• Rack standard: 19-inch
• Rack units: 9U
• External dimensions (W x D x H): 600 x 560 x 470 mm
• Material: SPCC cold rolled steel
• Front door: tempered glass with steel frame
• Side panels: removable, lockable
• Cable entry: top and bottom with brush strips
• Ventilation: passive slots, fan-ready cutouts
• Load capacity: 60 kg
• Protection rating: IP20
• Colour: light grey (RAL 7035)
• Surface finish: powder coated
• Locking: key lock for front door and side panels
• Mounting rails: 19-inch, depth adjustable
• Compliance: RoHS, CE

Final note

With its solid steel construction and practical features, this cabinet is a dependable enclosure for small networking setups.
