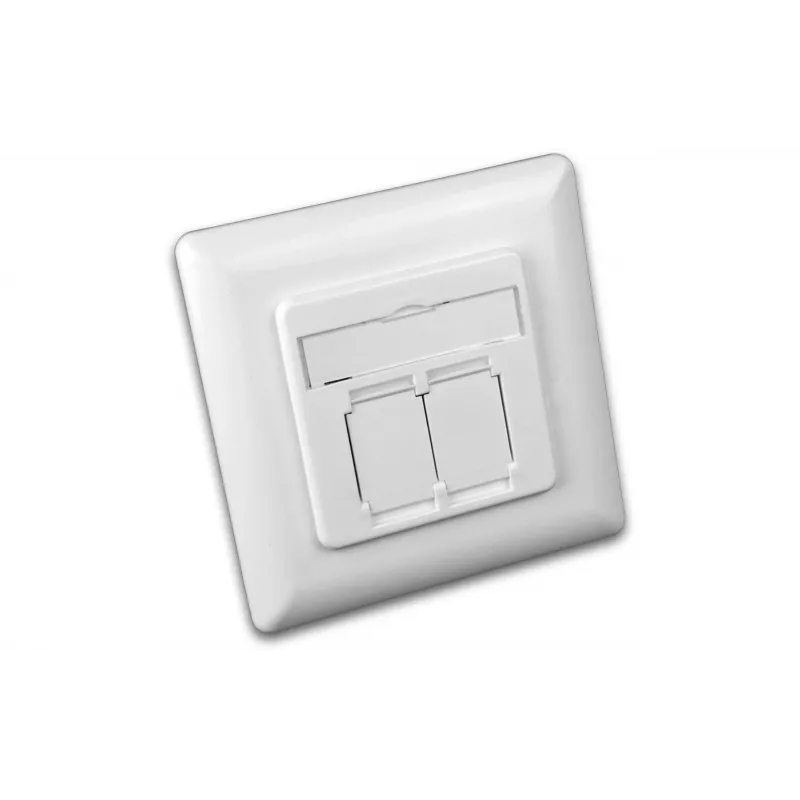

Wirewin DD-TRIO-K5E UP2 WS presa dati da incasso Cat5e schermata, 2x RJ45, LSA, bianco puro

Network installers and electricians often need a reliable, shielded Cat5e outlet for flush-mount boxes in offices, schools, and residential buildings. The Wirewin DD-TRIO-K5E UP2 WS provides two RJ45 ports in a pure white housing, with LSA terminals for quick, tool-free termination.

Key specifications

• Category 5e performance, up to 100 MHz, Gigabit Ethernet ready
• Fully shielded metal housing with gold-plated contacts
• 2x RJ45 ports with integrated dust shutters
• LSA (Krone) IDC terminals for solid wire AWG 22-24
• Flush-mount design for standard wall boxes
• Pure white colour (RAL 9010 equivalent)

Why choose it

This outlet combines robust shielding with easy installation. The LSA terminals accept standard punch-down tools, and the central plate fits common European flush-mount boxes. The dust shutters keep contacts clean when ports are unused.

Ideal use cases

• Structured cabling in office workstations
• Classroom and conference room network points
• Residential Ethernet installations
• Retrofit projects where existing flush boxes are present

Good to know

The outlet supports TIA/EIA 568 A/B wiring schemes and is compatible with solid copper conductors. A cover frame is included for a finished look.
