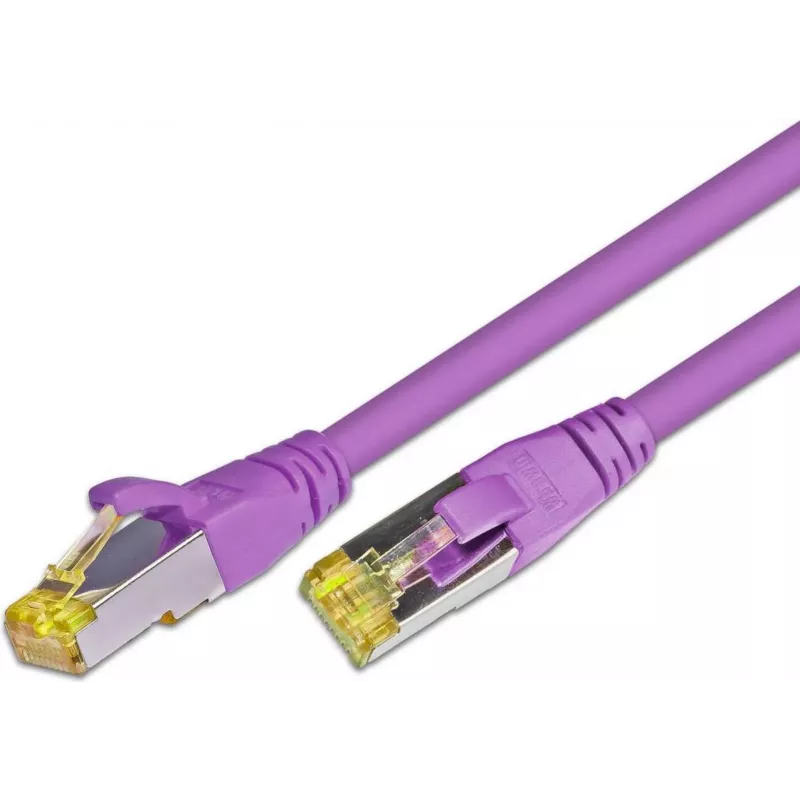

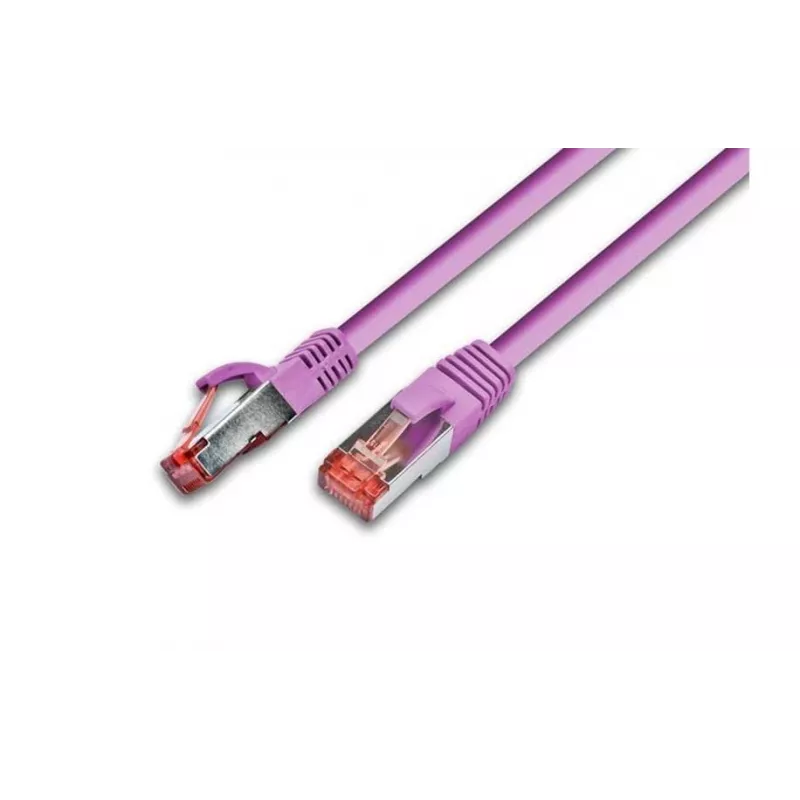

Wirewin PKW-PIMF-KAT6A cavo di rete rosa 50 m Cat6a S/FTP (S-STP) PKW-PIMF-KAT6 50.0 MG

High-speed data networks demand reliable cabling that can handle 10 Gigabit Ethernet without signal degradation. This 50-meter Cat6a patch cable with S/FTP shielding and PIMF pair isolation ensures minimal crosstalk and maximum performance, even in electrically noisy environments.

Who is it for

Network administrators, data center technicians, and advanced home users who need a long, high-performance cable for 10GBASE-T connections, Power over Ethernet, or structured cabling runs.

Main features

• Cat6a performance: supports 10 Gigabit Ethernet up to 500 MHz bandwidth
• S/FTP shielding: braided overall shield plus foil per twisted pair (PIMF) for superior EMI rejection
• Bare copper conductors, 23 AWG, ensure excellent conductivity and flexibility
• Gold-plated RJ45 connectors on both ends for corrosion resistance and reliable contacts
• Pink PVC jacket for easy identification and organization
• PoE support: PoE, PoE+, and 4PPoE (PoE++) for powering devices

Specifications

• Cable length: 50 m
• Cable type: Cat6a S/FTP (S-STP)
• Shielding: PIMF (pairs in metal foil) + braided overall shield
• Conductor: bare copper, 23 AWG
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Jacket: PVC, pink
• Max data rate: 10 Gbps
• Bandwidth: 500 MHz
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Operating temperature: -20°C to 60°C

Tips

For best performance, avoid sharp bends and keep the cable away from power lines. Use cable ties or Velcro straps to manage the 50-meter length neatly.
