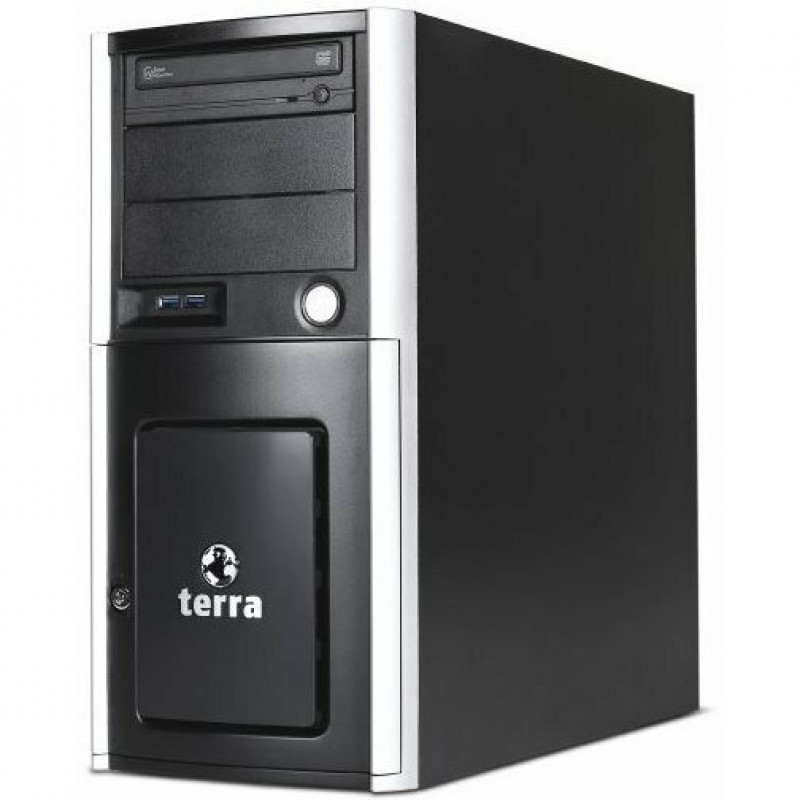

Wortmann TERRA SERVER 3030 G6 server Tower - Intel Xeon 6337P, 32GB DDR5 ECC RAM, 2x 960GB SATA SSD

The Terra Server 3030 G6 is a tower server powered by an Intel Xeon 6337P processor with 6 cores and a frequency of 3.5 GHz. It comes with 32 GB of DDR5 ECC memory and two 960 GB SATA SSDs, providing a total storage capacity of 1920 GB. This server is designed for small to medium-sized businesses seeking a reliable and expandable server solution.

Key features

• Intel Xeon 6337P 6-core processor
• 32 GB DDR5 ECC memory, expandable to 128 GB
• 2 x 960 GB SATA SSDs installed
• RAID 1 support
• Dual Gigabit Ethernet (Intel I210-AT2)
• Asus P13R-E motherboard with Intel C266 chipset
• Broadcom MegaRAID 9560-8i controller
• Remote administration support
• Pedestal/tower chassis
• 750 W power supply

Specifications

• Brand: TERRA
• Processor: Intel Xeon 6337P, 3.5 GHz, 6-core, 18 MB L3 cache
• Processor socket: LGA1700
• Motherboard chipset: Intel C266
• Memory: 32 GB DDR5 ECC UB RAM, 4 slots, dual-channel, maximum 128 GB
• Storage: 2 x 960 GB SSD SATA 6Gb/s, total 1920 GB
• Internal drive bays: 4 x 3.5"/2.5"
• RAID levels: RAID 1
• Optical drive: Optional
• Ethernet LAN: Yes, 2 x 1 GbE (RJ45), Intel I210-AT2
• LAN controller: Intel I210-AT2
• Graphics: Aspeed AST2600, 64 MB memory, VGA port
• Interfaces: 1x VGA, 2x LAN (RJ-45), 1x Mgmt LAN, 5x USB 3.2 Gen2 (1x internal), 2x USB 3.2 Gen1 (2x front), 2x USB 2.0, optional 1x serial
• Expansion slots: Slot 1: PCIe 4.0 x8 @ x4; Slot 2: PCIe 4.0 x8 @ x4; Slot 3: PCIe 5.0 x8 @ x8; Slot 4: PCIe 5.0 x16 @ x16 (automatic switch to x8 if slot 3 occupied)
• Drive bays: 3x 5.25"
• Power supply: 750 W, 100-240 V~, 50-60 Hz
• Redundant power supply support: Optional
• Cooling: Active
• Chassis type: Pedestal / Tower
• Rack mounting: Tower
• Dimensions (H x W x D): 44 cm x 20 cm x 57 cm
• Operating system: No operating system
• Compatible operating systems: Windows Server 2025, Windows Server 2022
• Certification: CE, production according to ISO9001 in Germany
• Operating temperature: 10 °C - 35 °C (recommended: 20 °C - 22 °C)
• Recommended humidity: 10-75% (non-condensing)
• Mouse included: Optional
• Keyboard: Optional
• Remote administration: Yes
• Localization: International
