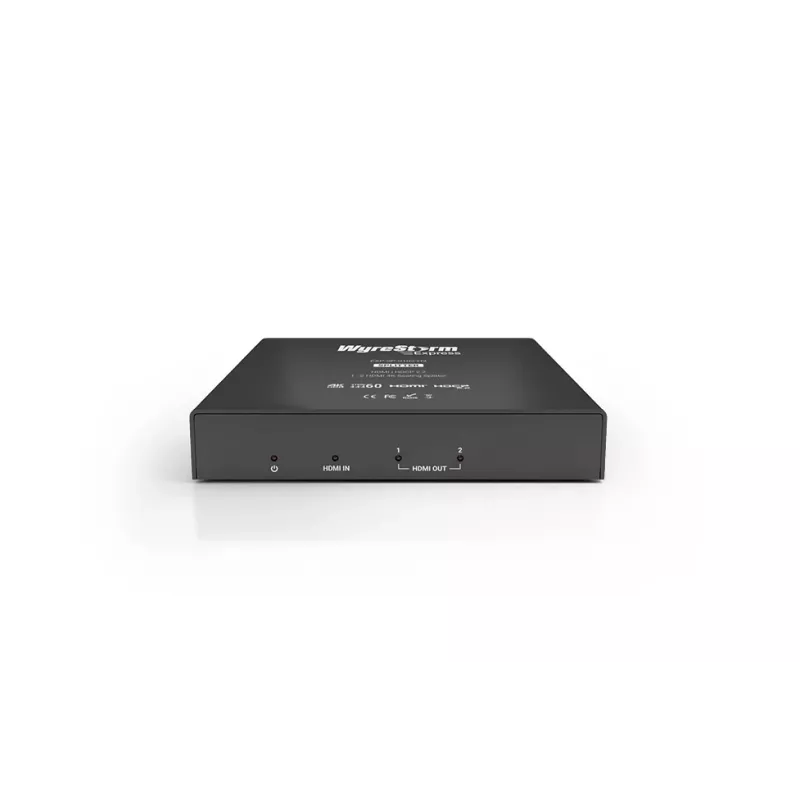

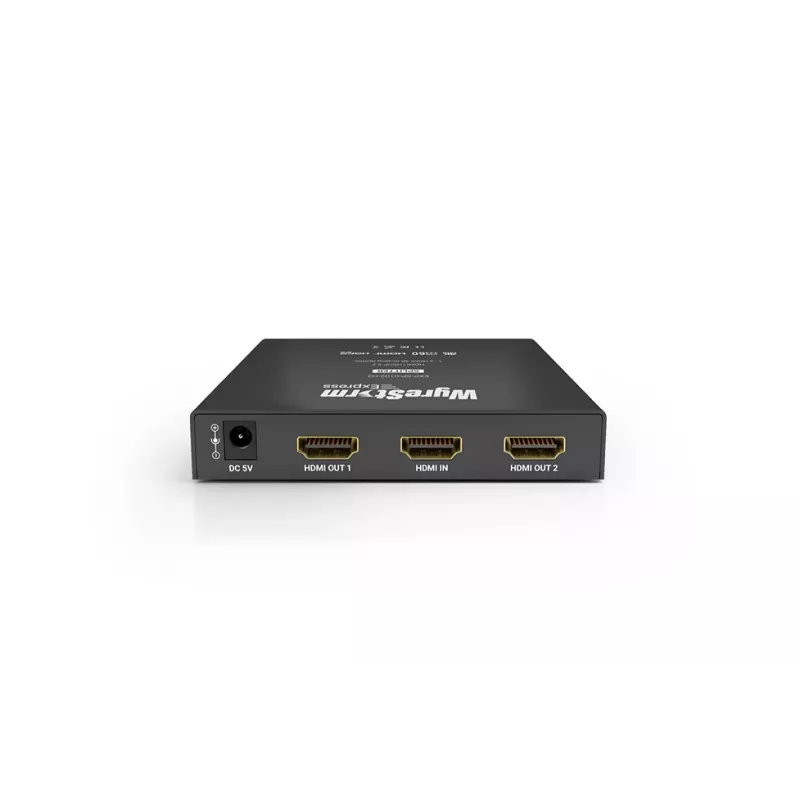

Wyrestorm Express EXP-SP-0102-H2 splitter HDMI 2.0 1x2 4K60 18Gbps HDR

The Wyrestorm Express EXP-SP-0102-H2 is a high-performance HDMI 2.0 splitter that distributes a single 4K UHD source to two displays simultaneously. Designed for professional AV installations, it supports resolutions up to 3840x2160 @60Hz 4:4:4 with 18Gbps bandwidth, HDR10, HLG, and Dolby Vision pass-through. The compact metal chassis ensures reliable operation in desktop or rack environments.

Advantages

This splitter delivers pristine signal integrity with HDCP 2.2 compliance and smart EDID management, ensuring seamless compatibility with a wide range of source devices and displays. Its low power consumption (<2W) and wide operating temperature range make it suitable for 24/7 use.

Suitable for

• Home theater systems requiring dual display output
• Digital signage and commercial AV distribution
• Conference rooms and education environments
• Gaming setups with multiple monitors

Key specifications

• Input: 1 x HDMI Type A
• Output: 2 x HDMI Type A
• HDMI Version: 2.0
• HDCP: 2.2 (backward compatible with 1.x)
• Max Resolution: 4K UHD (3840x2160) @60Hz 4:4:4
• Data Bandwidth: 18 Gbps
• HDR Support: HDR10, HLG, Dolby Vision pass-through
• Audio Formats: LPCM 2/5.1/7.1, Dolby Digital/Plus/TrueHD, DTS/HD Master Audio, Dolby Atmos, DTS:X
• Color Depth: 8-bit, 10-bit, 12-bit
• EDID Management: Smart EDID (Automatic/Selectable)
• Power Supply: 5V DC, 1A
• Power Consumption: <2W
• Chassis Material: Metal
• Operating Temperature: 0 to 45°C (32 to 113°F)
• Compliance: CE, FCC, RoHS
• Form Factor: Compact, Desktop

Recommendations

For optimal performance, use high-quality HDMI cables such as WyreStorm Express cables. Maximum input/output cable length: 15m at 4K@30Hz, 8m at 4K@60Hz.
