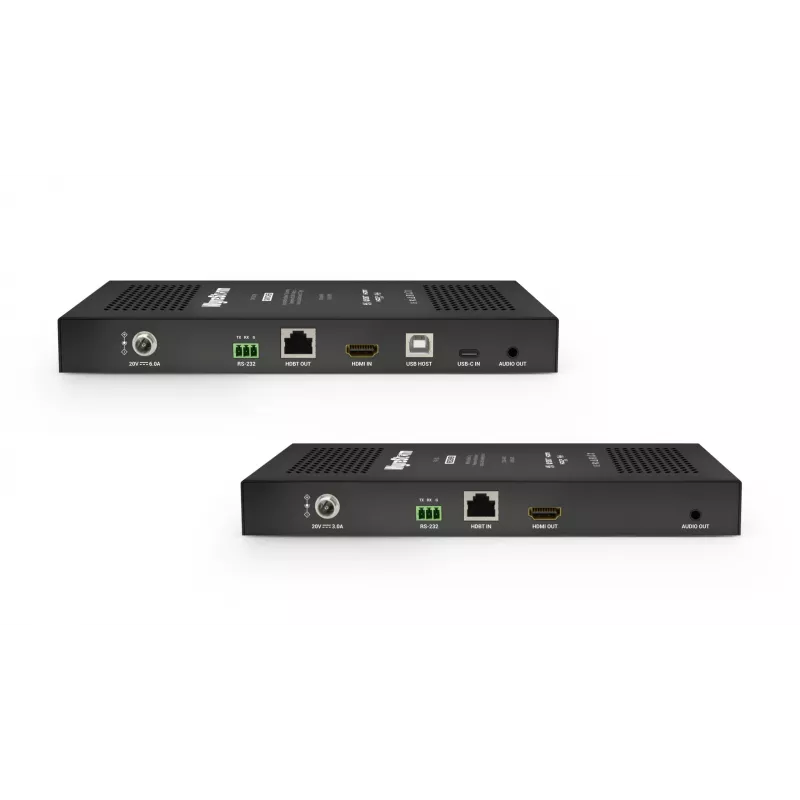

Wyrestorm SWX-100-HDBT3 - Kit trasmettitore e ricevitore HDBaseT 3.0 4K60Hz

The Wyrestorm SWX-100-HDBT3 is a high-performance HDBaseT 3.0 extender kit that transmits uncompressed 4K UHD video at 60Hz with 4:4:4 chroma subsampling up to 100 meters over a single Cat6A/7 cable. It delivers 18Gbps bandwidth, HDR10/HLG/Dolby Vision support, and multi-channel audio including Dolby Atmos and DTS:X. With PoH, bidirectional IR/RS-232, 1Gbps Ethernet pass-through, and USB 2.0 KVM extension, this kit is ideal for professional AV installations, conference rooms, and home theaters requiring reliable long-distance signal extension.

Advantages

Experience zero-latency transmission of 4K60 4:4:4 video with HDCP 2.3 compliance, ensuring compatibility with the latest sources and displays. The HDBaseT 3.0 standard provides robust performance over standard network cabling, reducing installation costs and complexity. Power over HDBaseT allows either the transmitter or receiver to be powered from the other end, simplifying deployment. Bidirectional control and Ethernet pass-through integrate seamlessly into existing control systems, while USB 2.0 extension supports KVM functionality for remote keyboard, mouse, and touchscreen control.

Suitable for

• Corporate boardrooms and conference rooms requiring 4K presentation over long distances
• Educational institutions needing reliable AV distribution between lecterns and projectors
• Home theater setups where source equipment is located away from the display
• Digital signage applications in retail, hospitality, and public spaces
• Medical or industrial environments requiring remote KVM control and high-resolution imaging

Key specifications

• HDBaseT 3.0 technology with 18Gbps bandwidth
• Supports 4K UHD 60Hz 4:4:4, HDR10, HLG, Dolby Vision
• Transmission distance up to 100m (328ft) over Cat6A/7
• HDMI 2.0b and HDCP 2.3 compliant
• Bidirectional IR and RS-232 pass-through
• 1Gbps Ethernet pass-through and USB 2.0 KVM extension
• Power over HDBaseT (PoH) for single-end powering
• Supports multi-channel audio: Dolby Atmos, DTS:X, LPCM 7.1
• Near-zero latency for real-time applications
• Transmitter inputs: 1x HDMI, 1x USB-B, 1x IR In, 1x RS-232
• Receiver outputs: 1x HDMI, 2x USB-A, 1x IR Out, 1x RS-232

Recommendations

For optimal performance, use shielded Cat6A or Cat7 cables and ensure proper grounding. When extending USB devices, connect the transmitter's USB-B port to the host computer and use the receiver's USB-A ports for peripherals. Configure PoH by powering only one end of the link to avoid conflicts. Always verify HDCP compatibility with source and display devices to prevent handshake issues.
