Zalman Z10 DUO Case per PC Midi Tower nero

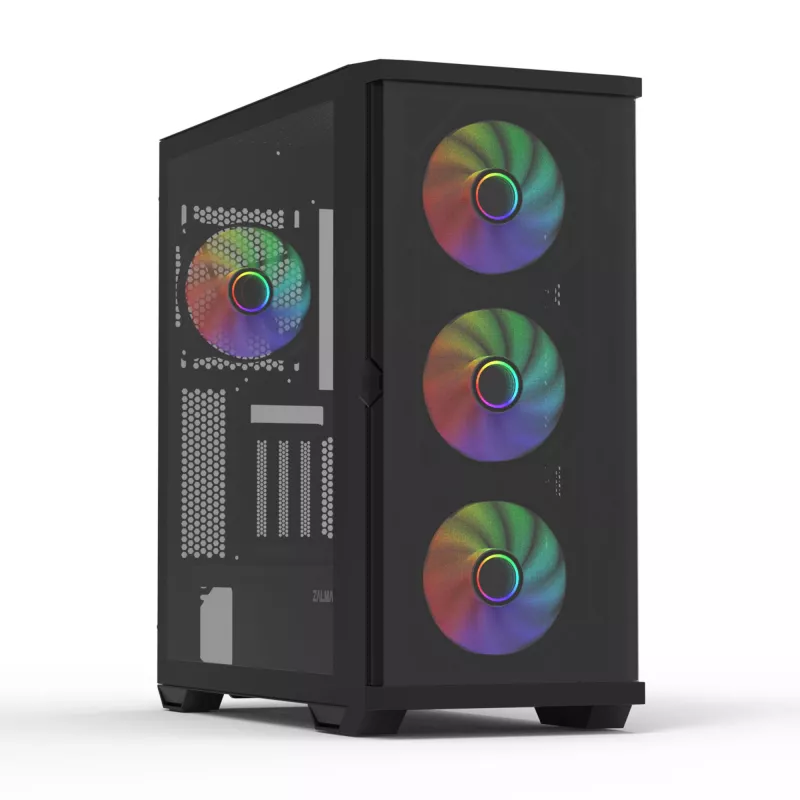

The Zalman Z10 DUO Midi Tower Black is a PC case engineered to balance component compatibility and airflow. Its front panel accommodates three 120 mm fans for intake, and additional mounting positions support both 120 mm and 140 mm fan sizes. The case places the power supply at the bottom to improve internal cable routing and component layout. With tempered glass on the side, steel construction and a compact footprint (220 mm W × 481 mm D × 488 mm H), the chassis suits common ATX, Mini-ATX and Mini-ITX motherboards while leaving space for storage and cooling hardware.

Advantages

The case offers efficient airflow through a front triple-fan configuration and flexible support for extra 120 mm or 140 mm fans. A bottom-mounted power supply position frees up upper chamber space and helps with cable management. Tempered glass side panel provides component visibility without compromising structural rigidity, while steel and plastic elements keep the overall weight reasonable at approximately 9 kg. Built-in front USB 3.2 Gen 1 Type-A ports provide convenient high-speed access for peripherals.

Suitable for

• Building a compact gaming PC with ATX or Mini-ITX motherboard
• Systems that require multiple conventional 3.5" and 2.5" drives
• Users who want visible internals via a tempered glass side window
• Cooling-focused builds that rely on front intake fans and additional top/rear exhaust

Key specifications

• Form factor: Midi Tower
• Supported motherboard sizes: ATX, Mini-ATX, Mini-ITX
• Front fan support: three 120 mm (preconfigured) and additional 120 mm/140 mm positions
• Drive bays: two 3.5" bays and two 2.5" bays
• Side panel: tempered glass
• Front panel ports: 2 × USB 3.2 Gen 1 Type-A
• Power supply position: bottom-mounted (PSU not included)
• Materials: steel, tempered glass, plastic
• Exterior color: black
• Weight: ~9 kg
• External dimensions (W×D×H): 220 mm × 481 mm × 488 mm

How to use

Install the compatible motherboard (ATX, Mini-ATX, or Mini-ITX) on the provided standoffs, then mount the power supply in the bottom chamber and route cables through the available cutouts to the main compartment. Place storage drives into the 3.5" and 2.5" bays and secure them according to the drive cage design. Fit graphics cards and other expansion cards into appropriate PCI slots. Ensure front fans are connected to fan headers or a fan controller and arrange airflow with intake at the front and exhaust at the rear/top. Attach the tempered glass side panel last to inspect clearances and cable routing before powering the system.

Recommendations

For optimal thermal performance, use the three included front 120 mm fans as intake and add at least one exhaust fan at the rear or top. Choose a PSU length compatible with the bottom-mounted position and allow space for cable management. Regularly clean front filters and maintain unobstructed airflow paths to preserve cooling efficiency and component longevity.
