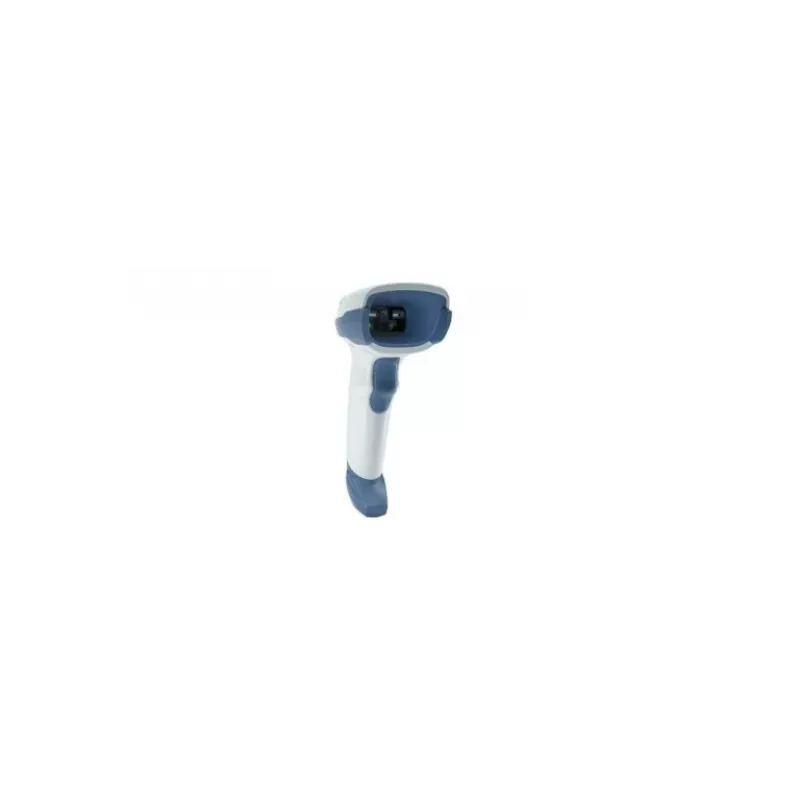

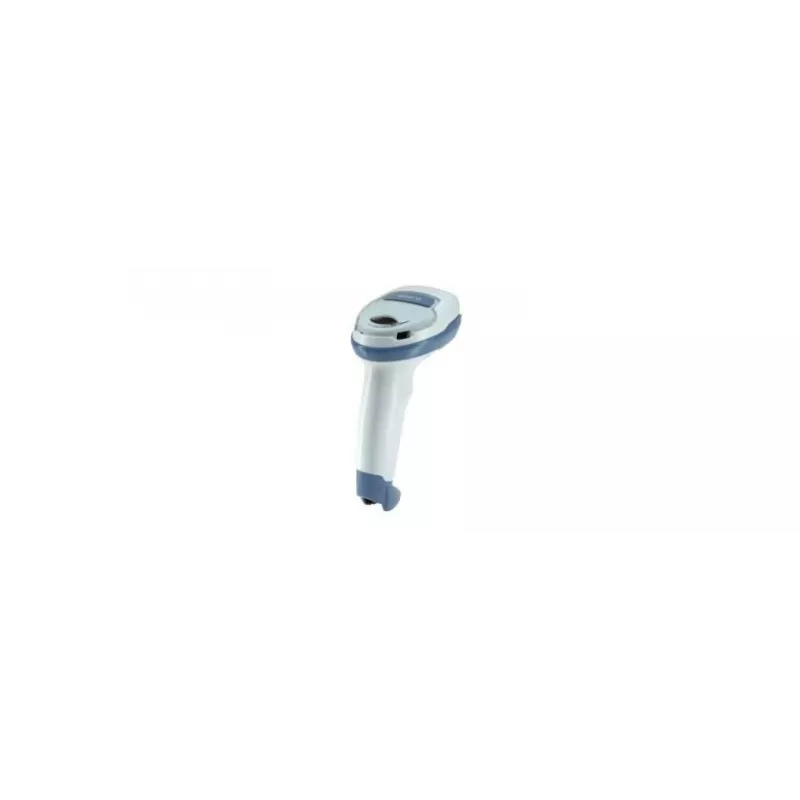

Zebra DS2208-HC Lettore di codici a barre a mano 1D/2D LED bianco

The Zebra DS2208-HC handheld bar code reader is purpose-built for healthcare settings, offering affordable, reliable capture of both 1D and 2D barcodes. Pre-configured for clinical workflows and equipped with an LED sensor, the scanner reads patient wristbands, medication vials, IV bags and specimen trays with fast, accurate performance. Wired connectivity options (USB, RS-232, keyboard wedge) and auto-host detect cables simplify integration into existing systems. With an IP52 rating, compact size and a weight of 161.6 g, the DS2208-HC is suited for extended use in busy clinical environments.

Advantages

The DS2208-HC combines 1D and 2D scanning capability in a single handheld device, enabling capture of common hospital barcodes without changing equipment. Its LED sensor delivers consistent read performance across printed and electronic barcodes. Multiple wired interface options and auto-host detect reduce setup time and compatibility issues. The IP52 dust and water protection rating and lightweight design support durability and comfort during routine clinical use.

Suitable for

• Scanning patient wristbands
• Medication and vial barcode capture
• Inventory and supply tracking in clinical areas
• Specimen and lab tray identification

Key specifications

• Scanner type: 1D/2D
• Sensor type: LED
• Connectivity: Wired (USB, RS-232, keyboard wedge)
• Ingress protection: IP52
• Weight: 0.1616 kg
• Product colour: White
• Supported 1D symbologies: U.P.C., MSI, EAN-8, EAN-13, EAN-5, EAN-2, EAN-128, Code 93, Code 39, Code 128, Code 11, Codabar, UPC-A, UPC-E

How to use

Connect the DS2208-HC using the appropriate cable to your host system; the scanner will auto-detect the host interface. Aim the imager at the barcode and press the trigger to capture the code; the LED sensor will read 1D and 2D codes from printed labels and screens. No additional configuration is required for standard healthcare deployments if using the pre-configured settings shipped from the factory.

Recommendations

For consistent read rates, keep the scanner window clean and allow sufficient distance so the entire barcode fits inside the aiming area. Use the wired interface that matches your host system (USB for most modern terminals) and verify scanner operation after initial connection. Follow hospital infection-control procedures when handling and cleaning the device.
