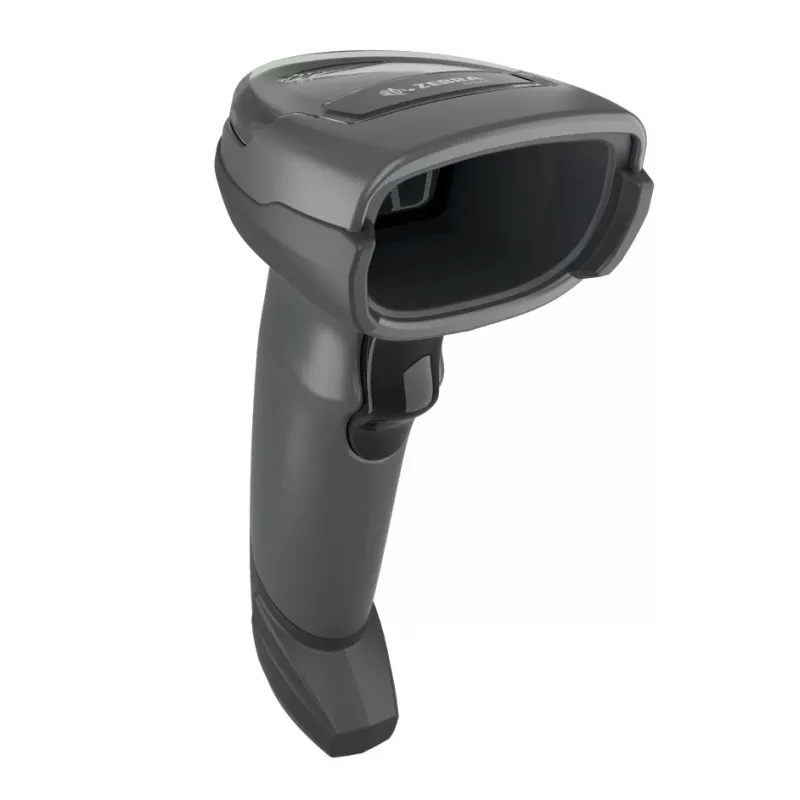

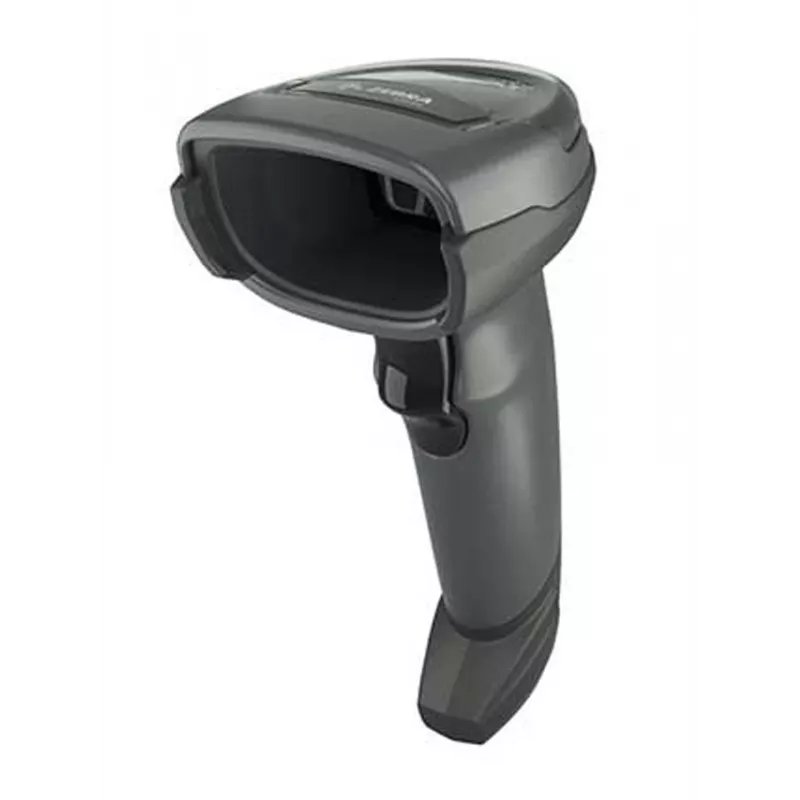

Zebra DS4608-HD lettore di codici a barre palmare 1D/2D LED nero

Versatility That Does More for Your Whole Store

Shrink lines and deliver an in-store experience that keeps customers coming back again and again. The feature-rich DS4600 Series for Retail helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. Bulky items in a shopping cart, a customer’s driver’s license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewelry department, data from a travel document, the DS4600 Series does more for your whole store.

Capture Barcodes Up to 28 Inches Away

Bulky and heavy items won’t slow down your checkout lines. With an industry-leading 28-inch scan range on UPC codes and bright aim dot, it’s easy for checkout associates to scan items in a shopper’s cart without leaving the cashwrap.

One Scanner for Your Whole Store

No matter what kind of data you need to capture, the DS4600 Series is ready for the job. Scan barcodes on a mobile phone. Capture tiny barcodes on jewelry tags, or DotCode and dotted DataMatrix barcodes through cellophane. Read wide barcodes on packages. Collect data from IDs. Parse driver’s license information. And much more.

Fastest Scanning Performance in Its Class

Empower every associate to scan like your best associate. An 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most challenging barcodes.

Do More Throughout Your Whole Store

With the DS4600 Series for Retail, you get a wide range of productivity-enhancing innovation to streamline more transactions and tasks throughout the store. Intelligent Document Capture not only captures images of documents, but automatically orients, de-skews and brightens the image for optimum clarity. Scan multiple barcodes with a single trigger pull, or automatically single out and scan one barcode on a field of many. You can capture data from travel documents with OCR. And there’s optional support for U.S. driver’s license parsing and EAS tag deactivation.

Zebra DS4608-HD. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52. Power source type: USB, Power consumption: 340 mA. Weight: 161.9 g, Width: 98 mm, Depth: 165 mm

How to use

Connect the DS4608-HD to a host computer or POS terminal via the wired USB interface and install any required drivers or configuration software. Aim the scanner at the barcode and pull the trigger; the integrated aiming dot and PRZM imaging will capture barcodes across a wide range of sizes and conditions. For document or ID capture, position the document within the field of view and trigger a capture; the scanner’s Intelligent Document Capture will automatically adjust the image orientation and clarity. Configure optional parsing features (such as driver’s license parsing or OCR) through the scanner management software if needed.

Recommendations

Use the DS4608-HD at the recommended operating distance for the barcode type being scanned — long-range for UPC codes (up to 28 inches) and closer distances for very small or densely printed 2D codes. Keep the scan window clean and avoid strong direct light on the barcode for best results. Regularly update scanner firmware and use Zebra’s configuration utilities to enable features like license parsing, OCR or EAS tag deactivation when required by your workflow.
