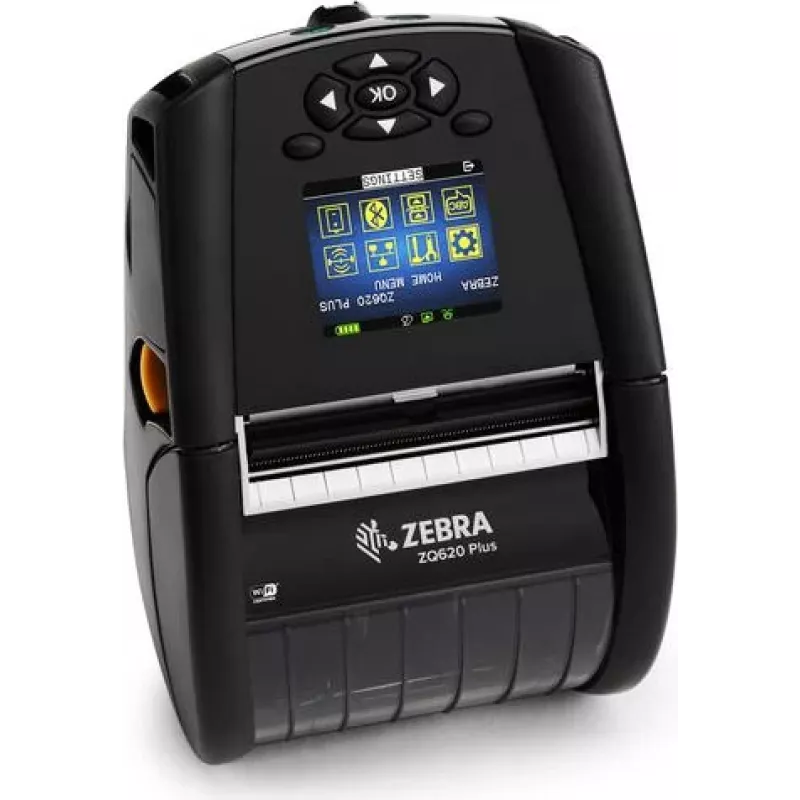

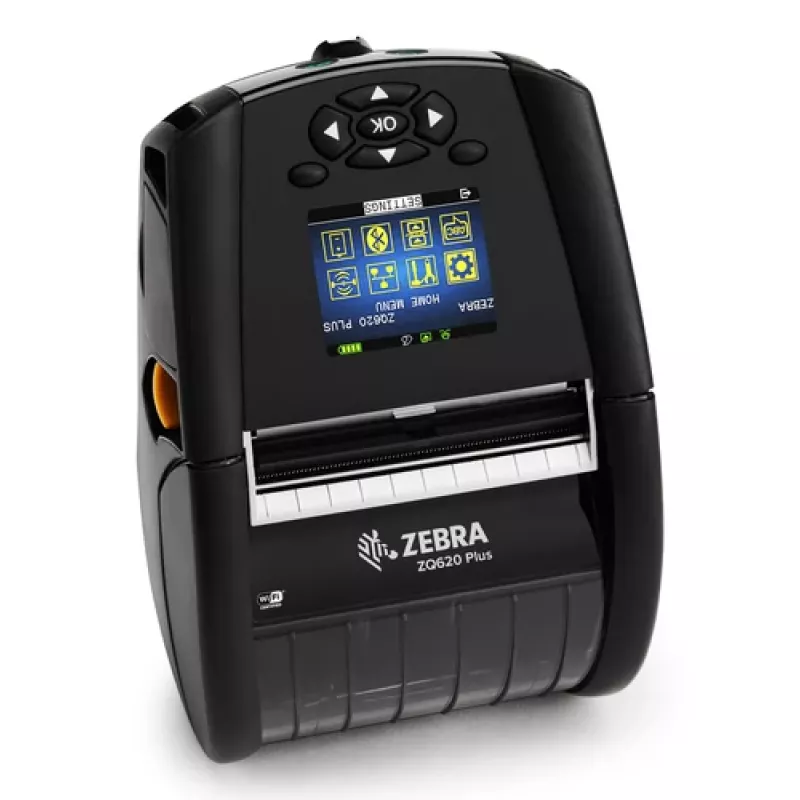

ZEBRA Etichettatrice ZQ620 TD

The ZEBRA ZQ620 raises the bar for mobile label printing by pairing a rugged, IP43-rated chassis with fast 115 mm/s output and a generous 72 mm print width—making it a standout choice for field service, retail, and logistics teams that need reliable, high-quality labels on the move. Unlike bulkier competitors, it combines a color LCD, dual-band Wi-Fi, and Bluetooth 4.1 in a compact, drop-resistant design that survives 1.8 m falls to concrete.

Highlights

• Direct thermal technology with 203 dpi resolution for crisp text, barcodes, and graphics.
• Fast print speed up to 115 mm/s (4.5 ips) and wide 72 mm media support for versatile labeling.
• Dual connectivity: 802.11ac Wi-Fi, Bluetooth 4.1 Classic & Low Energy, and USB 2.0 Type-C.
• Rugged durability: IP43 rating (IP54 with soft case), MIL-STD 810G compliant, multiple 1.8 m drops.
• User-friendly color LCD and Link-OS platform for easy setup and management.
• Long-lasting removable 3250 mAh Li-Ion smart battery for all-day operation.

In daily use

From warehouse picking to curbside delivery, the ZQ620 keeps pace with demanding workflows. Its black mark and gap sensors handle die-cut, continuous, linerless, and receipt media from 25.4 mm to 80 mm wide, while the 256 MB RAM and 512 MB Flash ensure smooth processing of complex label formats. The color display simplifies status monitoring and configuration, reducing downtime and training time for your team.

Full specifications

• Print technology: Direct thermal
• Maximum resolution: 203 x 203 DPI
• Maximum print width: 72 mm (2.83 in)
• Maximum print length: 813 mm (32 in)
• Print speed: 115 mm/s (4.5 ips)
• Connectivity: Wi-Fi 802.11ac, Bluetooth 4.1 Classic & Low Energy, USB 2.0 Type-C
• Memory: 256 MB RAM, 512 MB Flash
• Processor: 400 MHz 32-bit ARM
• Operating system: Link-OS
• Display: Color LCD
• Battery: Removable 3250 mAh (7.4V) Li-Ion smart battery
• Drop specification: Multiple 1.8 m (6 ft.) drops to concrete
• IP rating: IP43 (IP54 with soft case)
• Durability: MIL-STD 810G compliant for drops and vibrations
• Media types: Direct thermal roll-fed, die-cut or continuous labels, linerless labels, receipt paper
• Media width: 25.4 mm to 80 mm (1.0 in to 3.15 in)
• Barcode symbologies: 1D and 2D
• Sensors: Black mark and gap media sensors

Final note

Engineered for the realities of mobile work, the ZEBRA ZQ620 delivers dependable performance shift after shift—backed by Zebra's proven reliability and a feature set that adapts to your evolving labeling needs.
