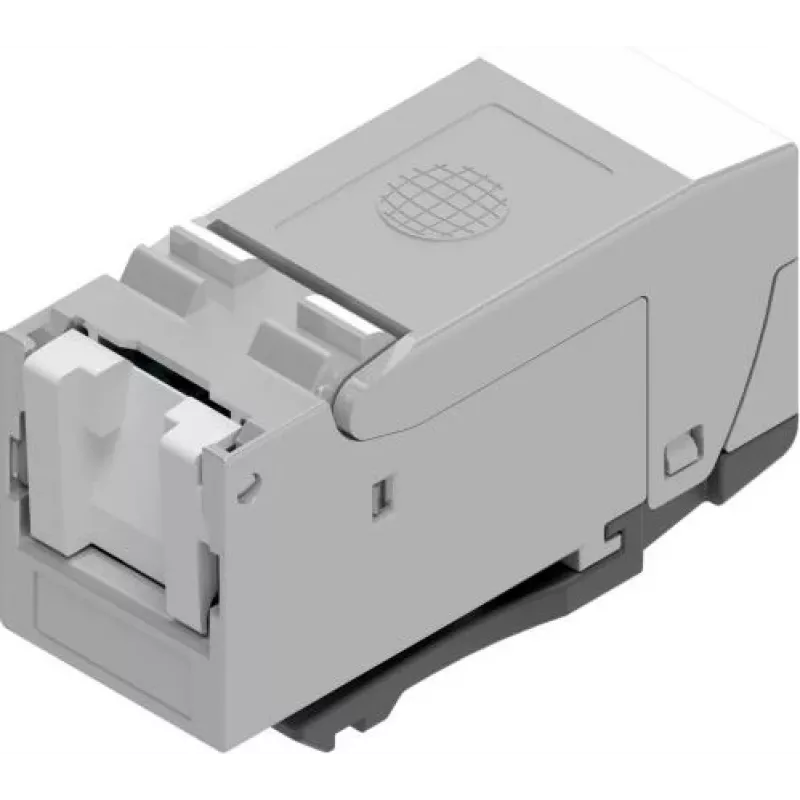

ZVK EasyLan fixLink Pro+ RJ45 Keystone modulo schermato Cat.8.1 - confezione da 1

The ZVK EasyLan fixLink Pro+ CKFAK002P+EP is a high-performance shielded RJ45 Keystone Module designed for Category 8.1 networks. It supports data transmission rates up to 40 Gigabit Ethernet (40GBASE-T) and frequencies up to 2000 MHz, making it ideal for demanding data center and enterprise applications. The tool-free IDC termination ensures quick and easy installation without special tools.

Advantages

This keystone module offers exceptional shielding against electromagnetic interference (EMI) thanks to its die-cast zinc housing and shielded design. It supports Power over Ethernet (PoE, PoE+, and 4PPoE) for flexible device powering. The gold-plated contacts (50µm) ensure reliable connectivity and durability, with over 750 mating cycles and 200 termination cycles. Backward compatibility with Cat.6A, Cat.6, and Cat.5e ensures seamless integration into existing networks.

Suitable for

• Data centers requiring high-speed 40G connections
• Enterprise networks with Cat.8.1 infrastructure
• Structured cabling systems for future-proof installations
• Applications needing shielded connectivity to reduce crosstalk and EMI

Key specifications

• Product Type: RJ45 Keystone Module
• Network Category: Category 8.1 (Cat.8.1)
• Shielding: Shielded (FTP/STP compatible)
• Connector Type: RJ45 Female
• Termination Type: Tool-free IDC
• Data Transmission Rate: Up to 40 Gigabit Ethernet (40GBASE-T)
• Frequency Range: Up to 2000 MHz (2 GHz)
• Wire Gauge Support: AWG 22-26 solid and stranded
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3bt Type 3 & 4)
• Housing Material: Die-cast zinc
• Contact Plating: Gold-plated (50µm)
• Mounting Standard: Keystone (20.0 x 14.5 mm cutout)
• Wiring Scheme: T568A and T568B
• Standards Compliance: ISO/IEC 11801-1, EN 50173-1, TIA-568.2-D
• Operating Temperature: -10°C to +60°C
• Durability: >750 mating cycles (RJ45), >200 termination cycles (IDC)

Recommendations

For optimal performance, use with Cat.8.1 shielded patch cables and ensure proper grounding. This module is ideal for high-speed data transmission in professional environments.
