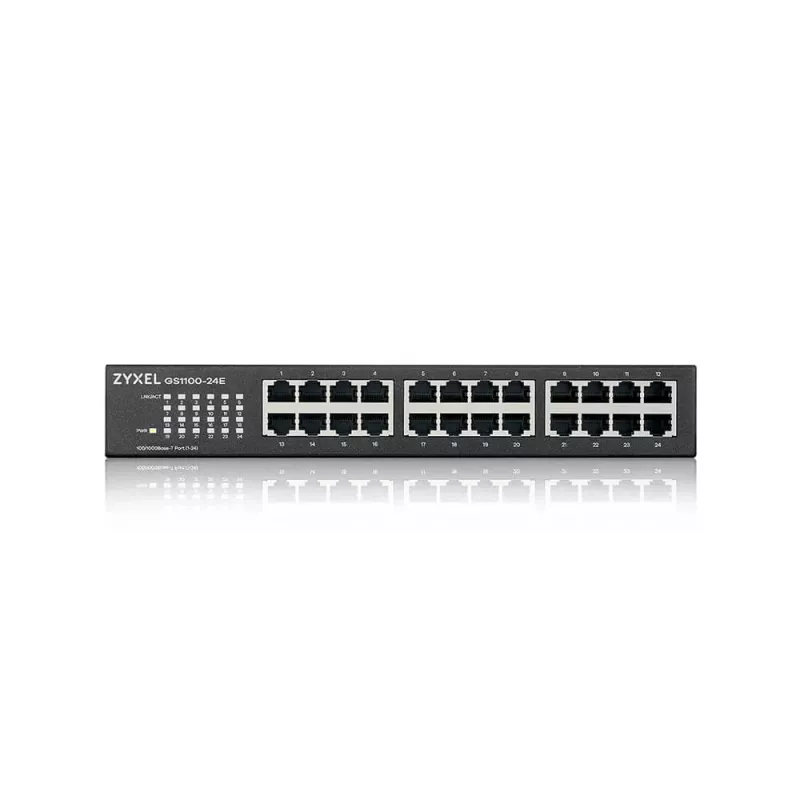

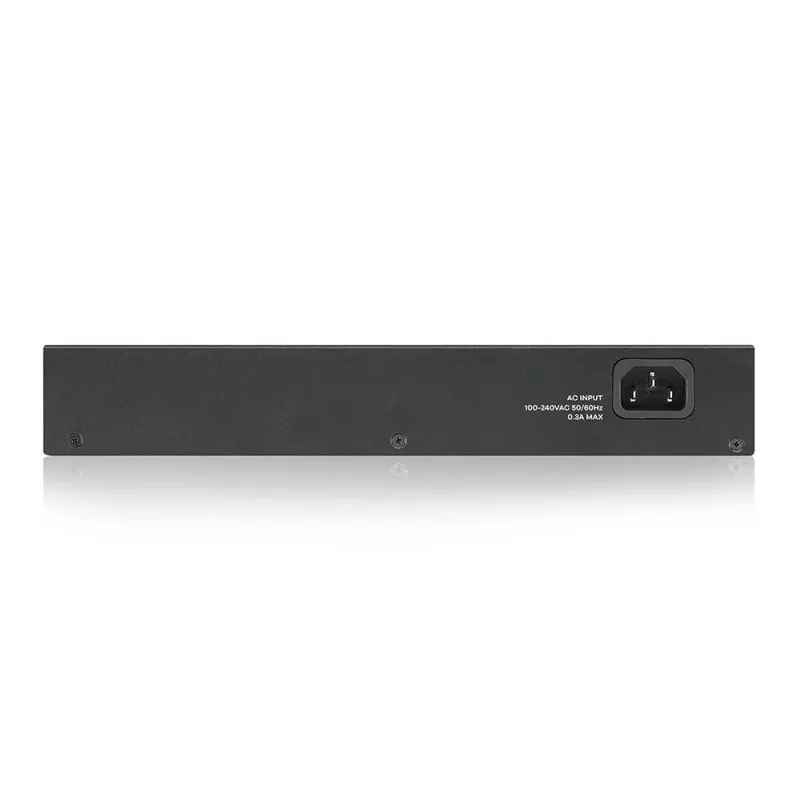

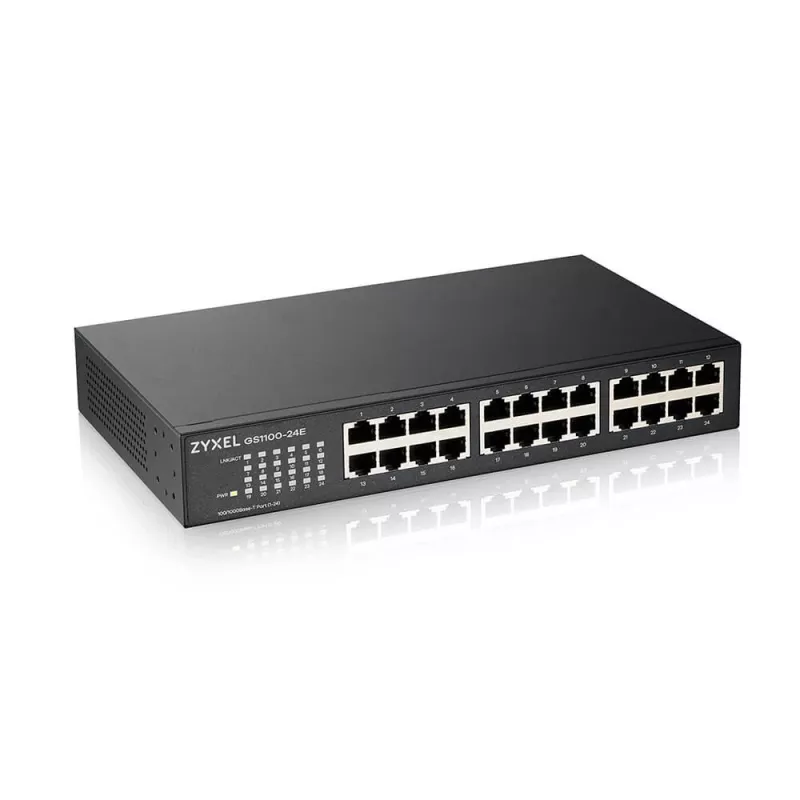

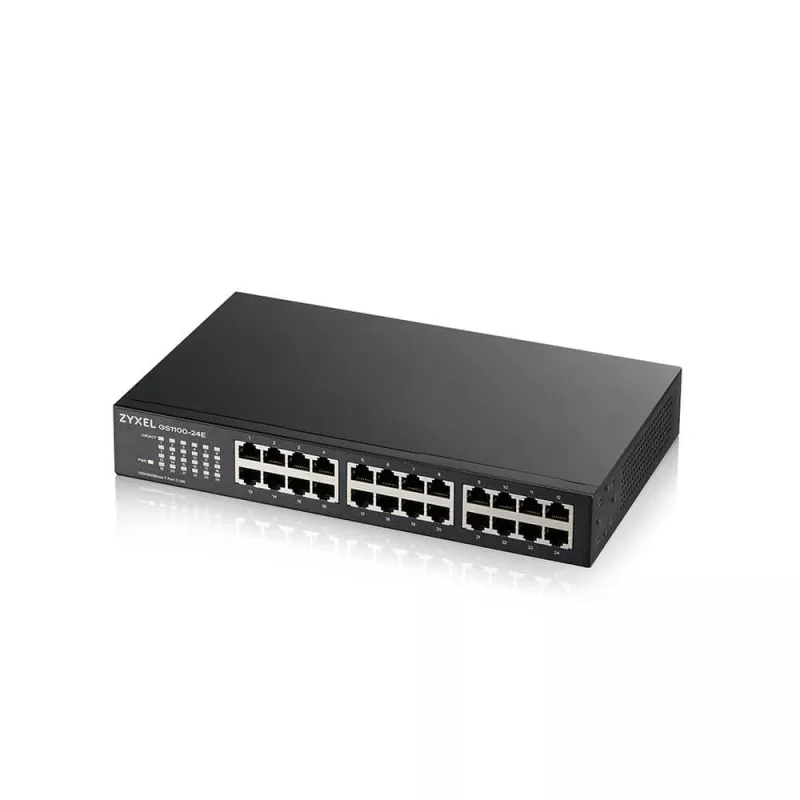

Zyxel GS1100-24E Unmanaged Gigabit Ethernet (10/100/1000) nero

The GS1100 unmanaged switch provides instant plug-and-play Gigabit connectivity with auto-negotiation and auto MDI/MDI-X, requiring no additional configuration. It supports 802.1p prioritization and jumbo frames to maintain smooth voice and video traffic in small office networks. Available in 8-, 16- and 24-port models, and with a PoE+ option, the GS1100 Series adapts to different office deployment needs.

Advantages

Plug-and-play setup enables quick installation without technical configuration. Fanless design ensures whisper-quiet operation suitable for small or quiet offices. Energy Efficient Ethernet (IEEE 802.3az) and Zyxel power-saving features reduce power consumption by detecting link status and cable length. The GS1100-10HP model supports PoE+ (IEEE 802.3at) with up to 30 W per port to power IP phones, surveillance cameras and wireless access points.

Key specifications

• Ports: available in 8, 16 and 24 ports
• Connectivity: Gigabit Ethernet with auto-negotiation and auto MDI/MDI-X
• PoE: GS1100-10HP supports PoE+ (IEEE 802.3at) up to 30 W per port
• QoS: 802.1p prioritization
• Frame support: jumbo frames
• Power-saving: Energy Efficient Ethernet (IEEE 802.3az) and cable-length/link-status detection
• Operation: fanless design; GS1100-10HP uses external power adapter

How to use

Connect the switch to power and attach network cables to the desired Gigabit ports; the device will negotiate link speed and MDI/MDI-X automatically. For PoE models, connect PoE-powered devices to the PoE-capable ports to receive power and network connectivity without additional adapters. No management interface or configuration is required for basic use; ensure devices are connected to appropriate ports and that the power adapter is used for the GS1100-10HP.

Recommendations

Place the fanless switch in a ventilated area away from direct heat sources. For PoE deployments, verify total power budget and compatible device requirements when using the GS1100-10HP to ensure reliable operation.
