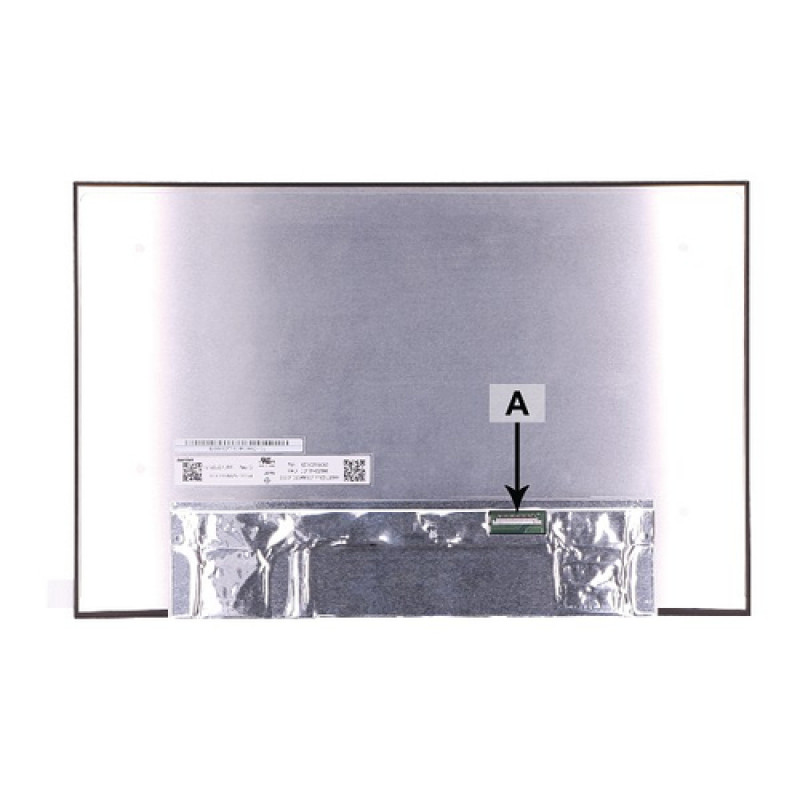

2-power 14,0 pollici WUXGA 1920x1200 5MM EDP IPS (2P-LP140WU2(SP)(M1))

When a laptop display cracks or fades, the 2-POWER 14.0" WUXGA panel restores crisp visuals and reliable performance. This replacement screen is built for technicians and DIY repairers working on ultrabooks and business notebooks that use a 30-pin eDP interface. With a 1920x1200 resolution and IPS technology, it delivers sharp text and consistent colours from wide angles, making it suitable for office productivity, web browsing, and multimedia tasks.

Key specifications

• Display size: 14.0 inches
• Resolution: 1920 x 1200 (WUXGA)
• Panel type: IPS (In-Plane Switching)
• Aspect ratio: 16:10
• Interface: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 300 cd/m²
• Contrast ratio: 800:1
• Response time: 25 ms
• Viewing angles: 178° horizontal / 178° vertical
• Backlight: LED
• Surface finish: Matte (anti-glare)
• Panel thickness: 5 mm
• Colour gamut: 45% NTSC
• Touchscreen: No
• Power consumption: ~3.5 W

Why choose it

This panel uses IPS technology for accurate colour reproduction and wide viewing angles, so the image remains clear even when viewed from the side. The matte coating reduces reflections, making it easier to work in bright environments. Its 16:10 aspect ratio provides extra vertical space compared to standard 16:9 panels, which is useful for documents and web pages. The 30-pin eDP connector is a common standard, and the panel is compatible with a wide range of laptops that use this interface (specific brackets or cables may be required).

Ideal use cases

• Replacing a damaged or faulty 14.0-inch laptop screen
• Upgrading a laptop with a lower-resolution panel to WUXGA
• Repairing business notebooks and ultrabooks that require a 30-pin eDP connection
• DIY projects where a matte, anti-glare display is preferred

Good to know

Before ordering, verify that your laptop uses a 30-pin eDP connector and supports a 14.0-inch panel with a 5 mm thickness. The panel does not include a touchscreen or mounting brackets; reuse the existing brackets or purchase compatible ones. Installation requires careful handling of the delicate connector and cable. The panel is tested for quality and is backed by 2-POWER's reputation for reliable replacement parts.
