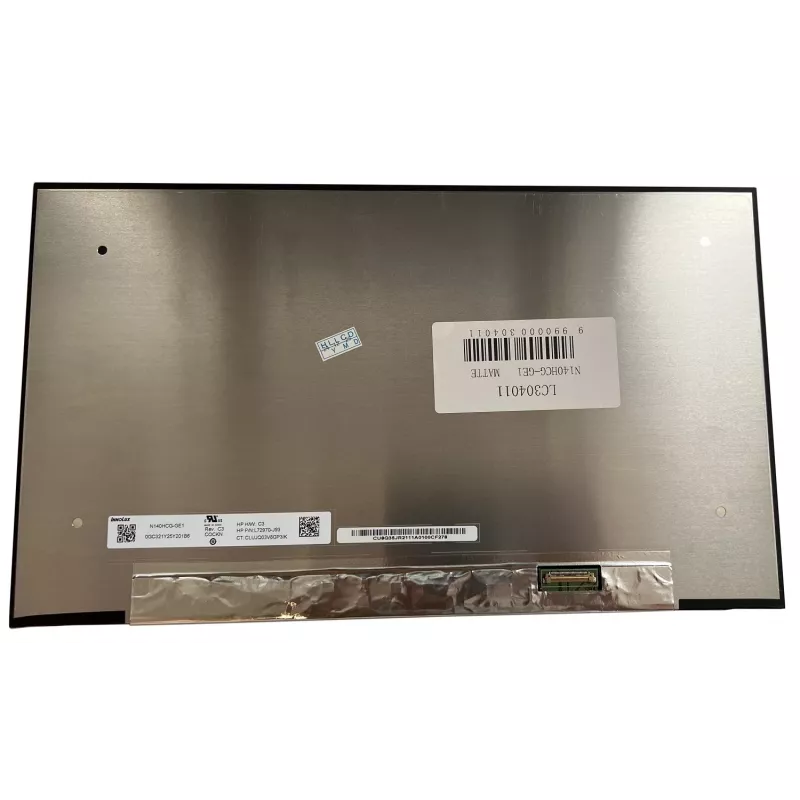

AUO LC304011 14,0" Full HD IPS pannello display opaco, 30-Pin eDP, 60Hz

The AUO LC304011 is a 14.0-inch Full HD display panel built around an IPS (In-Plane Switching) matrix, which sets it apart from typical TN-based screens by delivering wider viewing angles and more consistent colour from off-centre positions. Its matte anti-glare surface reduces reflections, making it suitable for bright indoor environments, while the 30-pin eDP connector positioned on the right side simplifies integration into compatible laptop chassis.

Highlights

• 14.0-inch IPS panel with 1920 x 1080 (Full HD) resolution and 16:9 aspect ratio
• Matte anti-glare finish minimises distracting reflections
• 30-pin eDP connector located on the right side (viewed from the back)
• LED backlight with a typical brightness of 250 cd/m²
• 60 Hz refresh rate and 30 ms typical response time

In daily use

This panel is intended as a replacement or upgrade for laptops that require a 14.0-inch Full HD display with a right-side 30-pin eDP interface. The IPS technology provides 170° horizontal and vertical viewing angles, so the image remains stable when the screen is viewed from the side. The matte coating helps maintain readability under overhead lighting or near windows, and the panel supports 16.7 million colours for everyday productivity and multimedia tasks.

Full specifications

• Display diagonal: 14.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS
• Surface finish: Matte (anti-glare)
• Backlight type: LED
• Connector type: 30-pin eDP
• Connector position: Right (viewed from the back)
• Aspect ratio: 16:9
• Brightness: 250 cd/m² (typical)
• Response time: 30 ms (typical)
• Colour gamut: 45% NTSC (typical)
• Viewing angles: 170° horizontal / 170° vertical
• Display colours: 16.7 million
• Technology: TFT active matrix
• Power consumption: 4 W (typical)

Final note

The AUO LC304011 combines a Full HD IPS panel with a practical right-side eDP connector and matte finish, offering a straightforward replacement option for compatible 14.0-inch laptops.
