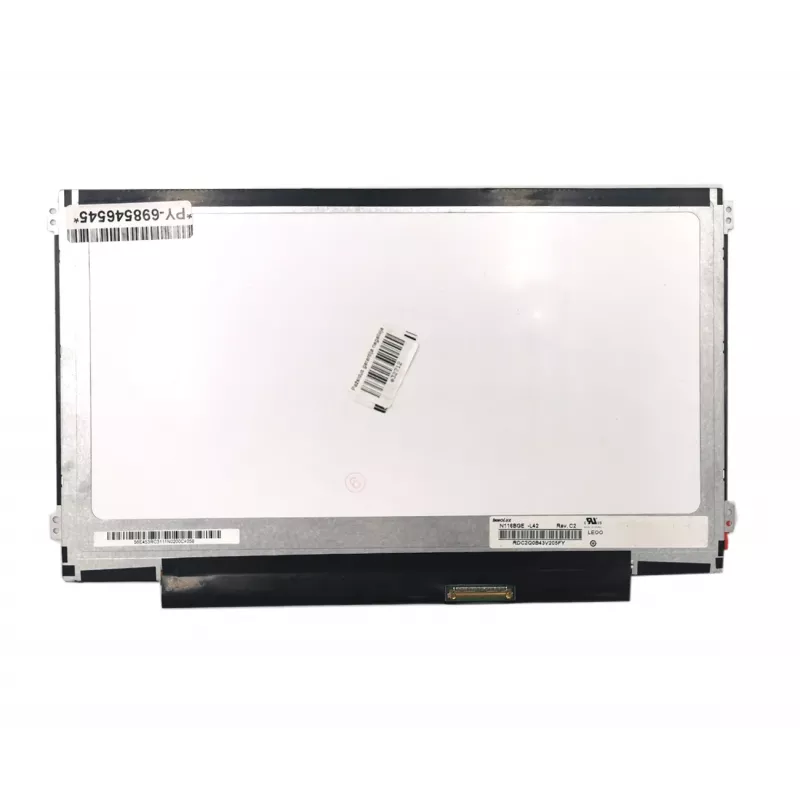

AUO schermo 11,6 pollici, 1366x768, 60Hz, lucido, 40 pin, destro

Replace a damaged or faulty laptop display with this 11.6-inch AUO panel, designed to restore clear visuals without the cost of a new device. The LC300648 delivers a bright, glossy picture with a 1366x768 resolution, making it a practical choice for everyday computing, web browsing, and office tasks.

Who is it for

This panel is ideal for technicians, repair shops, and DIY users who need a compatible replacement screen for laptops or small displays. It fits systems that require a 40-pin LVDS connection with the connector positioned on the right side when viewed from the rear.

Main features

• 11.6-inch TFT active matrix LCD with LED backlight
• WXGA resolution (1366x768) for clear, sharp text and images
• Glossy surface finish for vibrant colours and high contrast
• 40-pin LVDS data connector, right-side position
• 60 Hz refresh rate for smooth motion
• TN panel type with 200 cd/m² brightness and 400:1 contrast ratio
• Universal OEM replacement compatibility

Specifications

• Screen size: 11.6 inches
• Resolution: 1366 x 768 (WXGA HD)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Surface finish: Glossy
• Backlight type: LED
• Display technology: TFT Active Matrix LCD
• Data connector: 40-pin LVDS
• Connector position: Right (from panel rear view)
• Panel type: TN (Twisted Nematic)
• Brightness: 200 cd/m²
• Contrast ratio: 400:1
• Response time: 8 ms
• Color gamut: 45% NTSC
• Pixel density: ~135 PPI
• Condition: New

Tips

Before ordering, verify that your original screen has the same size, resolution, connector type, and connector position. Handle the panel by its edges and avoid touching the surface to prevent damage. Test the screen before final assembly.
