2-power 2P-LP156WH(TP)(SH) - Display - 39,6 cm (15,6 pollici) - WXGA

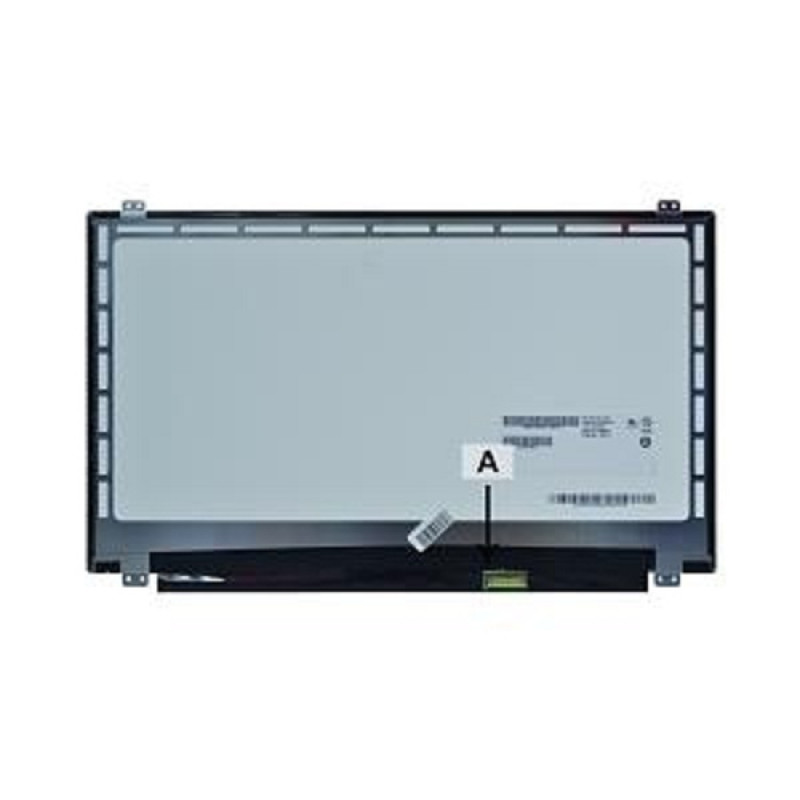

A cracked or dim laptop screen can render your device unusable, but replacing it doesn't have to be complicated. The 2-Power 2P-LP156WH(TP)(SH) is a 15.6-inch WXGA LED touchscreen panel that restores crisp visuals and responsive touch to compatible laptops. With a 1366 x 768 resolution and 16:9 aspect ratio, it delivers clear images for everyday tasks, while the glossy TN surface provides vibrant colors and a responsive touch experience. The 30-pin eDP connector ensures a straightforward installation, and the side bracket mounting matches many standard laptop chassis. Whether you're a technician repairing a client's machine or a DIY enthusiast bringing your own laptop back to life, this panel offers a cost-effective solution without sacrificing reliability.

Who is it for

This display is ideal for IT professionals, repair shops, and individual users who need to replace a faulty 15.6-inch touchscreen on a laptop. It suits those who require a universal panel compatible with various models that use a 30-pin eDP interface and side brackets. If you value a bright, glossy display with touch functionality and a standard WXGA resolution, this panel is a practical choice.

Main features

• 15.6-inch WXGA (1366 x 768) resolution with 16:9 aspect ratio
• LED backlight with 220 cd/m² brightness for clear viewing
• Glossy TN panel with touchscreen support

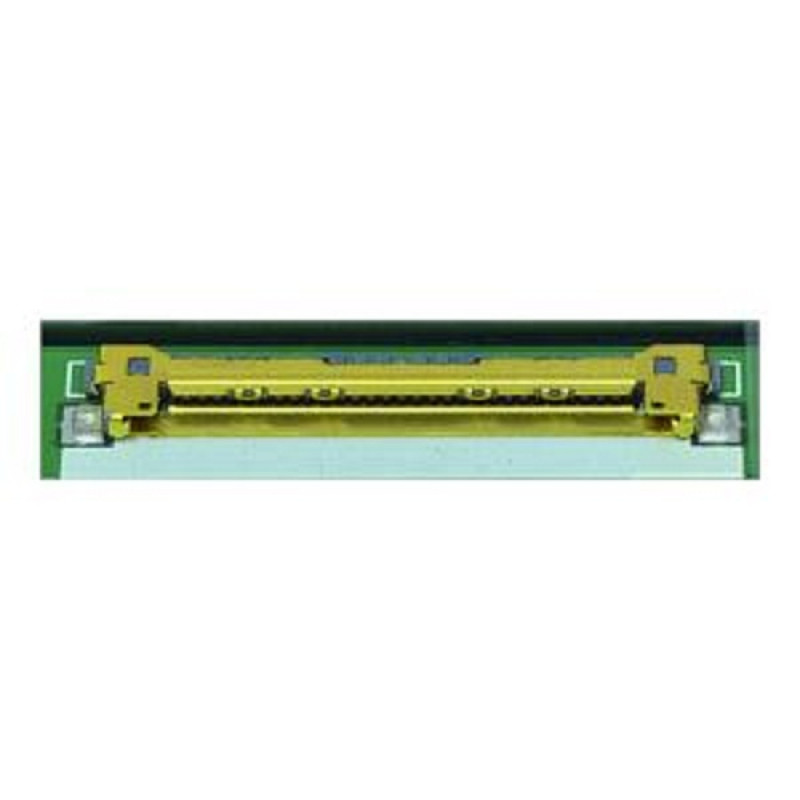

• 30-pin eDP connector for modern laptops
• Side bracket mounting for easy installation
• 60 Hz refresh rate and 8 ms response time for smooth visuals
• Viewing angles: 45° horizontal, 45° vertical (top), 20° vertical (bottom), 45° vertical (bottom)

Specifications

• Brand: 2-Power
• Model: 2P-LP156WH(TP)(SH)
• Display size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Backlight: LED
• Touchscreen: Yes
• Surface finish: Glossy
• Panel technology: TN
• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Response time: 8 ms
• Viewing angles: 45/45/20/45 degrees (H/V)
• Mounting: Side brackets
• Condition: New

Tips

Before ordering, verify that your laptop uses a 30-pin eDP connector and side bracket mounting. Check the original panel's resolution and size to ensure compatibility. Handle the panel by its edges to avoid fingerprints or damage to the touch surface. For best results, have a professional install the display if you are not experienced with laptop repairs.
