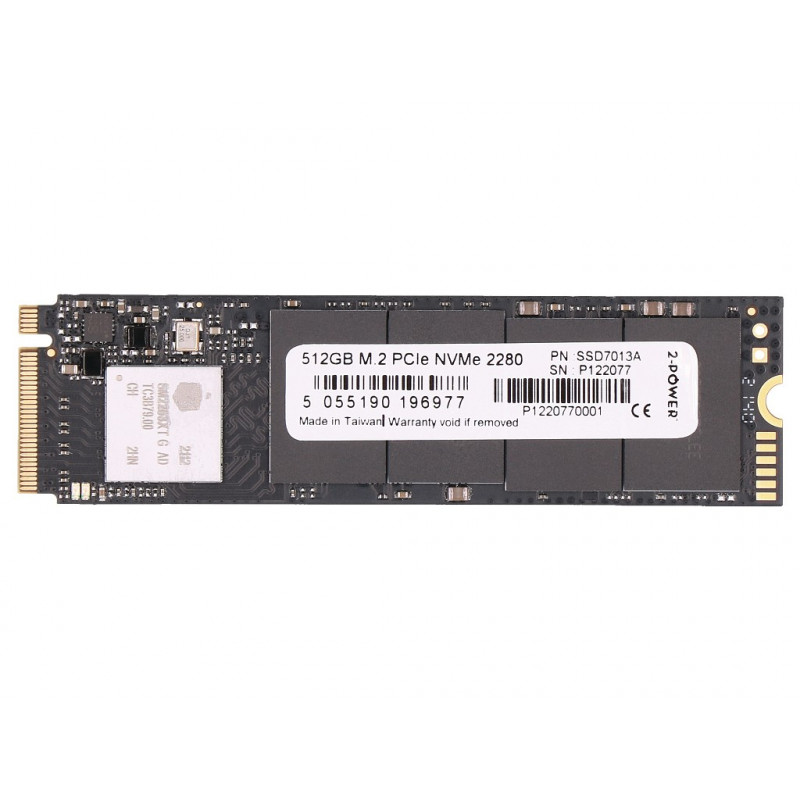

2-Power SSD 512GB M.2 PCIe NVMe 2280 - controller - m.2 NVMe (2P-WDS480G2G0C)

Blazing-fast 3000 MB/s sequential reads transform load times and file transfers. This 2-Power 512GB M.2 PCIe NVMe 2280 SSD leverages PCIe Gen3 x4 and NVMe 1.3 to deliver up to 200,000 random read IOPS, making it a serious upgrade for demanding workloads.

Overview

The 2-Power 2P-WDS480G2G0C packs 512GB of 3D TLC NAND into a compact M.2 2280 form factor. It connects via PCIe Gen3 x4 and communicates through the NVMe 1.3 protocol, eliminating SATA bottlenecks. With sequential write speeds up to 2000 MB/s and random write performance up to 250,000 IOPS, it accelerates boot times, application launches, and large file operations.

What stands out

• PCIe Gen3 x4 interface with NVMe 1.3 for ultra-low latency
• Up to 3000 MB/s sequential read and 2000 MB/s sequential write
• High endurance: 250 TBW and 1.5 million hours MTBF
• Supports TRIM, S.M.A.R.T., and Host Memory Buffer (HMB)
• Wide operating temperature range from 0°C to 70°C

Technical details

• Capacity: 512 GB
• Form factor: M.2 2280
• Interface: PCIe Gen3 x4
• Protocol: NVMe 1.3
• NAND flash: 3D TLC
• Sequential read: up to 3000 MB/s
• Sequential write: up to 2000 MB/s
• Random read (4KB, QD32): up to 200,000 IOPS
• Random write (4KB, QD32): up to 250,000 IOPS
• TBW: 250 TB
• MTBF: 1,500,000 hours
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Shock resistance: 1500G/0.5ms
• Vibration resistance: 20G (7-2000Hz)
• TRIM support: Yes
• S.M.A.R.T. support: Yes
• Host Memory Buffer (HMB): Yes
• Warranty: 3-year limited

Our verdict

The 2-Power 512GB M.2 NVMe SSD delivers exceptional speed and reliability for its class. With robust endurance and advanced features like HMB and S.M.A.R.T., it is an excellent choice for upgrading laptops, desktops, and compact systems where performance and durability matter.
