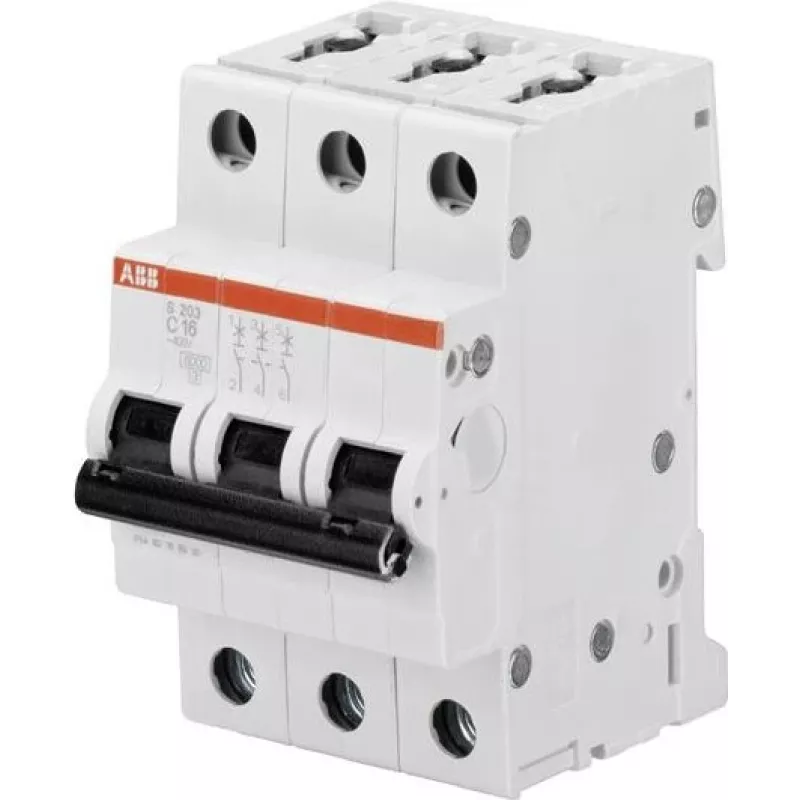

ABB 2CDS253001R0024 interruttore automatico magnetotermico tripolare 2A curva C 6kA

Electrical overloads and short circuits can cause serious damage to wiring and connected equipment. The ABB 2CDS253001R0024 miniature circuit breaker (MCB) provides reliable protection by automatically interrupting the current flow when a fault is detected. With a 2 A rated current and C tripping characteristic, it is ideal for circuits with moderate inrush currents, such as lighting and control circuits.

Who is it for

This MCB is designed for electricians, panel builders, and maintenance professionals who need a dependable protection device for residential, commercial, and light industrial installations. It is suitable for DIN rail mounting in distribution boards and control panels.

Main features

• 3-pole configuration for three-phase circuits
• 2 A rated current with C-curve tripping (5-10 times rated current for magnetic trip)
• 6 kA rated breaking capacity according to IEC/EN 60898-1
• Dual standards compliance: IEC/EN 60898-1 and IEC/EN 60947-2
• Screw terminals accept rigid conductors up to 25 mm² and flexible up to 16 mm²
• IP20 protection on terminals (IP40 with enclosure cover)
• Wide operating temperature range from -25°C to +55°C
• High endurance: 20,000 mechanical cycles and 10,000 electrical cycles

Specifications

• Brand: ABB
• Model: 2CDS253001R0024
• MPN: 2CDS253001R0024
• EAN: 4016779523448
• Rated current (In): 2 A
• Number of poles: 3
• Tripping characteristic: C
• Rated operational voltage: 230/400 V AC, 48 V DC per pole
• Rated short-circuit breaking capacity (Icn): 6 kA (IEC/EN 60898-1)
• Rated ultimate short-circuit breaking capacity (Icu): 10 kA (IEC/EN 60947-2)
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal type: Screw terminals
• Degree of protection: IP20 terminals, IP40 with cover
• Electrical endurance: 10,000 AC cycles
• Mechanical endurance: 20,000 cycles
• Standards: IEC/EN 60898-1, IEC/EN 60947-2
• Energy limiting class: 3
• Connection capacity: 25 mm² rigid, 16 mm² flexible
• Operating temperature: -25°C to +55°C
• Pollution degree: 3
• Insulation voltage (Ui): 440 V AC

Tips

When installing, ensure the upstream protection is coordinated with the MCB's breaking capacity. For circuits with high inrush currents (e.g., motors, transformers), consider a D-curve breaker instead. Always follow local wiring regulations and disconnect power before installation.
