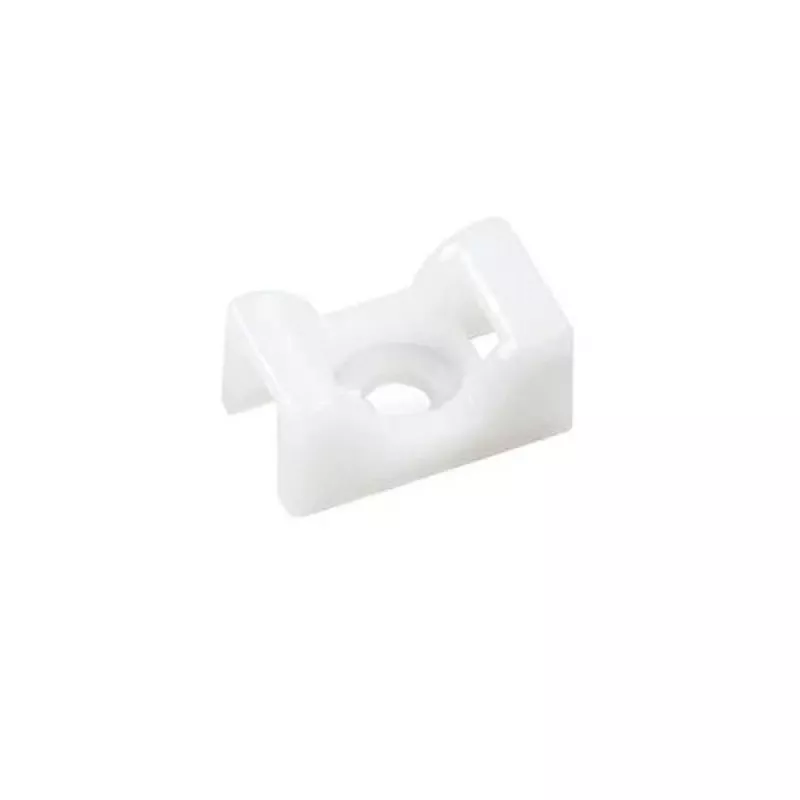

ABB Stotz S&J T&B base di fissaggio per fascette 7,6 mm naturale TC 142 (7TAG009880R0007)

The ABB Stotz S&J T&B Cable Tie Mounting Base TC 142 is a reliable and durable solution for securing cable bundles to various surfaces. Made from high-quality Polyamide 6.6, this natural-colored mounting base offers excellent mechanical strength and temperature resistance. Designed for screw mounting, it provides a secure anchor point for cable ties up to 7.9 mm wide, ensuring organized and tidy cable management in industrial, commercial, and residential applications.

Advantages

High-quality Polyamide 6.6 material ensures long-lasting performance and resistance to harsh environments. The natural color is ideal for applications where aesthetics are not critical, and the UL 94 V-2 flammability rating guarantees safety. Halogen-free and RoHS compliant, this mounting base meets modern environmental standards.

Suitable for

• Securing cable bundles in electrical panels and control cabinets
• Mounting cables along walls, ceilings, and floors in industrial settings
• Organizing wiring in automotive and aerospace applications
• General cable management in commercial buildings and data centers

Key specifications

• Product Type: Cable Tie Mounting Base
• Mounting Method: Screw Mount
• Material: Polyamide 6.6 (Nylon 6.6)
• Color: Natural
• Maximum Cable Tie Width: 7.9 mm
• Base Length: 25.4 mm
• Base Width: 15.9 mm
• Base Height: 6.4 mm
• Screw Hole Diameter: 4.8 mm
• Operating Temperature Range: -40°C to +85°C
• Flammability Rating: UL 94 V-2
• Halogen Free: Yes
• RoHS Compliant: Yes

Recommendations

For best results, use with ABB Ty-Rap cable ties of appropriate width. Ensure the mounting surface is clean and dry before installation. Suitable for indoor use only; for outdoor applications, consider UV-resistant alternatives.
