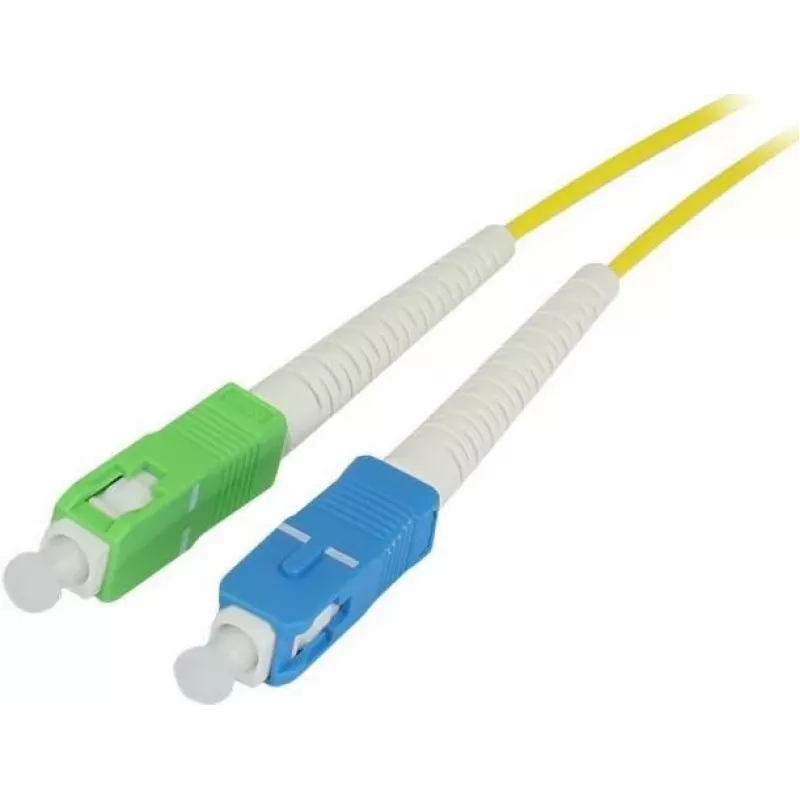

SYNERGY21 cavo patch in fibra ottica 3m SC/APC-SC/APC OS2 singlemode 9/125µm G.657.A2 2mm resistente alle piegature

The SYNERGY21 S215734 is a high-quality single-mode fiber optic patch cable designed for reliable and efficient data transmission in demanding network environments. With a length of 3 meters and SC/APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for FTTH, telecommunications, data centers, and LAN applications. The 9/125µm core/cladding diameter and OS2 fiber class guarantee excellent performance over long distances. The cable features a 2mm outer diameter and a flexible bend protection sleeve, providing durability and ease of installation in tight spaces.

Advantages

This patch cable offers superior signal integrity with typical insertion loss <0.3 dB and return loss >60 dB. The G.657.A2 bend-insensitive fiber allows for tight bends without compromising performance, reducing the risk of signal degradation. The flexible bend protection sleeve at the connector ends prevents kinking and extends cable life. Its compact 2mm diameter makes it easy to route in crowded panels and conduits.

Suitable for

• Fiber-to-the-Home (FTTH) installations
• Telecommunications networks
• Data center interconnects
• Local Area Networks (LAN)
• Any single-mode fiber application requiring SC/APC connectivity

Key specifications

• Cable Type: Fiber Optic Patch Cable, Simplex
• Fiber Mode: Single-Mode
• Fiber Class: OS2
• Core/Cladding Diameter: 9/125 µm
• ITU-T Standard: G.657.A2 (Bend-Insensitive)
• Connector Type: SC/APC to SC/APC
• Number of Fibers: 1
• Cable Length: 3 meters
• Cable Outer Diameter: 2 mm
• Connector Polish: APC (Angled Physical Contact)
• Features: Flexible Bend Protection Sleeve
• Typical Insertion Loss: <0.3 dB
• Typical Return Loss: >60 dB

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard SC/APC ports. Avoid excessive bending beyond the minimum bend radius specified for G.657.A2 fiber.
