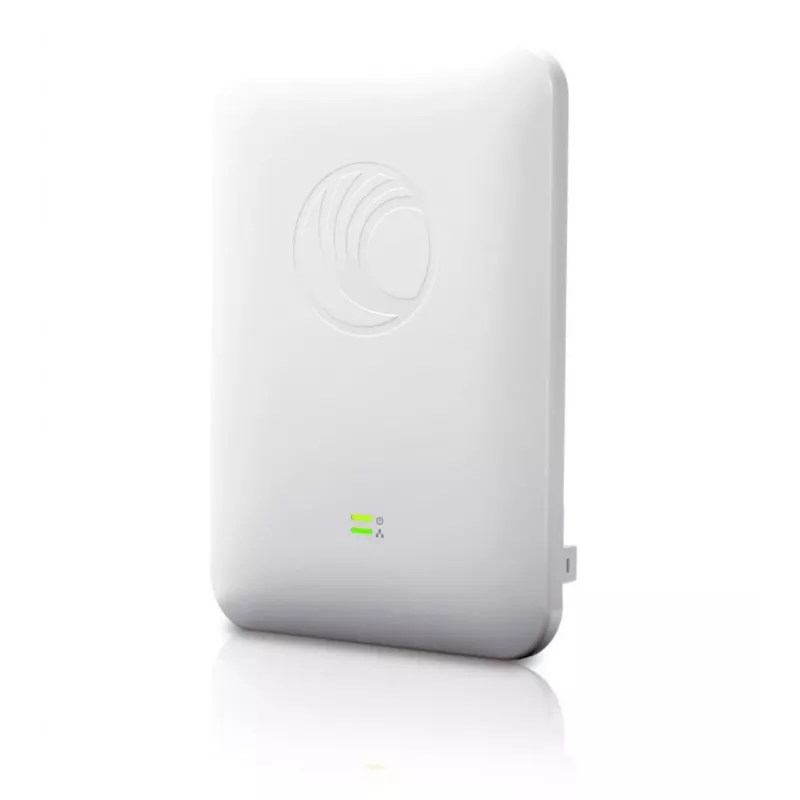

Access point wireless Cambium Networks cnPilot e501S 2,4/5 GHz, 867 Mbit/s, Gigabit Ethernet, bianco

The Cambium Networks cnPilot e501S is a dual-band wireless access point designed for indoor and sheltered outdoor deployments. It operates on 2.4 GHz and 5 GHz bands with a maximum wireless data rate of 867 Mbit/s on 5 GHz and supports legacy 2.4 GHz rates, providing flexible coverage for small and medium businesses or enterprise environments. The unit includes a Gigabit Ethernet port for wired backhaul, enterprise-grade security support including 802.1x RADIUS and multiple EAP methods, and efficient power consumption up to 13 W.

Advantages

The cnPilot e501S offers dual-band operation and an integrated sector antenna to deliver reliable Wi‑Fi coverage with support for up to 256 client associations and up to 16 SSIDs for network segmentation. Built-in support for WPA2 and multiple EAP methods enables secure authentication and per-user VLAN assignment, while Gigabit Ethernet connectivity supports high-throughput wired connections. The device is designed to integrate with enterprise networks and supports a wide set of WLAN and Ethernet standards for compatibility with existing infrastructures.

Suitable for

• Small and medium business indoor wireless coverage
• Enterprise guest and staff network segmentation
• High-density office areas requiring multiple SSIDs and client management
• Environments needing integrated sector antenna coverage

Key specifications

• Wireless bands: 2.4 GHz and 5 GHz
• Maximum wireless data rate: 867 Mbit/s (5 GHz)
• 2.4 GHz rate: up to 300 Mbit/s
• Ethernet: Gigabit Ethernet (10/100/1000 Mbit/s)
• Client capacity: up to 256 client associations
• SSIDs: up to 16 SSIDs
• Integrated sector antenna with approximately 90°–120° coverage
• Security protocols: 802.1x RADIUS, multiple EAP methods, WPA/TKIP, WPA2/AES
• Power consumption: up to 13 W
• Standards support: IEEE 802.11a/b/g/n/ac and relevant Ethernet standards

How to use

Install the cnPilot e501S in a location that provides optimal coverage for the intended client area, observing mounting guidance for sector antenna orientation to cover target zones. Connect the device to your network using the Gigabit Ethernet port for backhaul and supply power according to your site plan. Configure SSIDs, VLANs and security settings through the device management interface or an appropriate network controller, applying 802.1x or WPA2 credentials as required for your authentication and segmentation policies.

Recommendations

Place the access point to minimize physical obstructions between the integrated sector antenna and client devices, separate guest and staff networks using distinct SSIDs and VLANs, and enable appropriate DFS channels and channel planning to reduce interference in dense deployments. For secure environments, use 802.1x RADIUS with strong EAP methods and monitor client associations to balance load across multiple APs.
