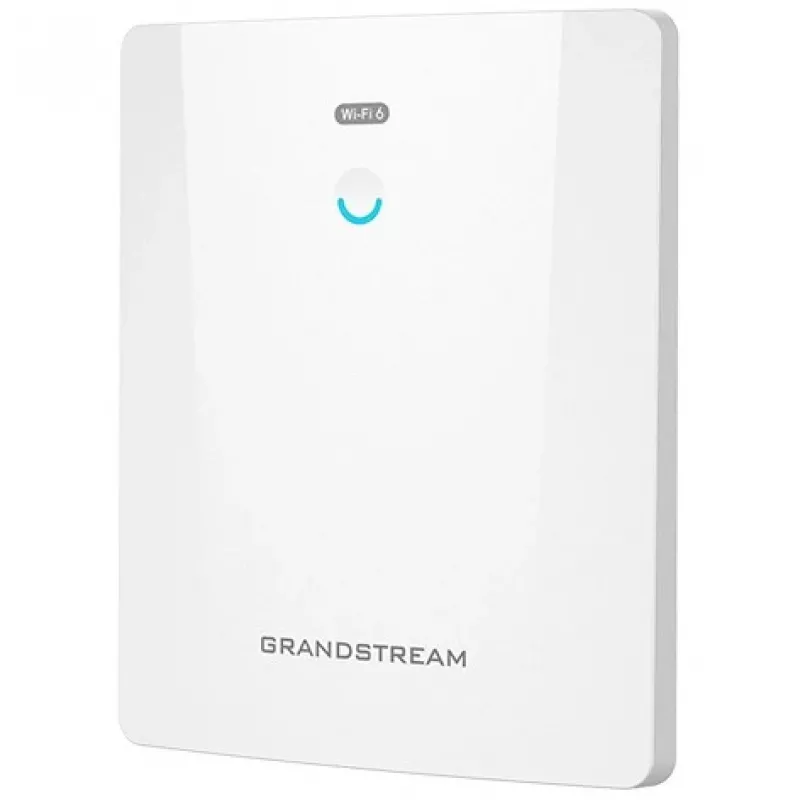

Access point wireless Grandstream GWN7664ELR 2.4 GHz 5 GHz

The Grandstream GWN7664ELR is an enterprise-grade long-range Wi‑Fi 6 (802.11ax) access point designed for medium-to-large businesses and enterprises that require extended outdoor coverage. It supports dual-band operation on 2.4 GHz and 5 GHz with a maximum aggregated data rate up to 6000 Mbit/s, eight integrated antennas, Power over Ethernet (PoE) support, and advanced security including WPA3. Management options include cloud-based GDMS Networking, on-premise GWN Manager, and a built-in embedded controller accessible via the device web interface.

Advantages

The GWN7664ELR provides long-range outdoor coverage with Wi‑Fi 6 performance, enabling higher throughput and improved spectral efficiency in dense environments. With eight antennas and support for IEEE 802.11ax, it delivers greater capacity for concurrent users. Flexible management is available via GDMS Networking (cloud), GWN Manager (on‑premise) or the embedded controller. PoE simplifies deployment and the device includes modern security protocols such as WPA3.

Suitable for

• Outdoor campus and enterprise wireless coverage
• Large public spaces, parks, and stadium perimeter coverage
• High-density user environments requiring long-range connectivity
• Deployments that use centralized cloud or on-premise network management

Key specifications

• Model: Grandstream GWN7664ELR
• Wireless standards: IEEE 802.11ax (Wi‑Fi 6), 802.11ac/n/g/b
• Frequency bands: 2.4 GHz and 5 GHz (dual-band)
• Maximum data transfer rate: 6000 Mbit/s (aggregate)
• Antennas: 8 integrated antennas

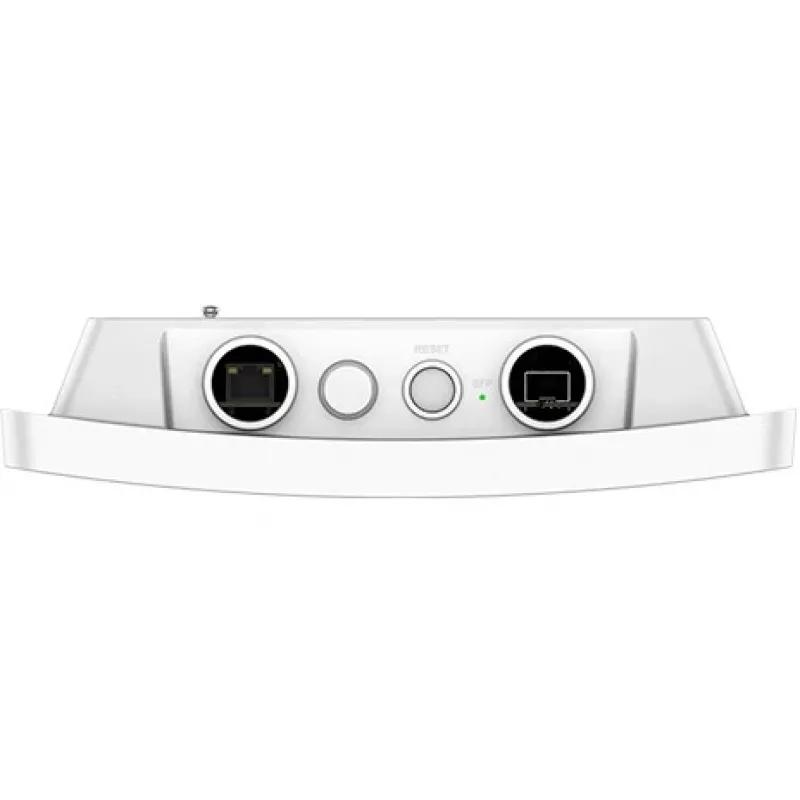

• Ethernet ports: 1 x RJ-45
• Power: Power over Ethernet (IEEE 802.3at) support; max consumption 24 W
• Security: WPA3 and other modern Wi‑Fi security protocols
• Color: White
• Weight: 1.445 kg

How to use

Mount the GWN7664ELR in an appropriate outdoor location following local regulations and the manufacturer’s mounting instructions. Connect the unit to a PoE-capable switch or injector using the RJ-45 Ethernet port for both data and power. Access the device via the embedded web interface for local configuration, or register it with GDMS Networking for cloud management or GWN Manager for on‑premise control. Configure SSIDs, security (WPA3), radio settings and firmware updates according to site requirements.

Recommendations

For optimal long-range outdoor performance, place the access point clear of large obstructions, use elevated mounting where possible, and perform a site survey to determine best placement and channel settings. Use PoE installation and centralized management (GDMS or GWN Manager) to simplify maintenance and updates.
