Accessorio di montaggio per telecamera Axis 5505-181

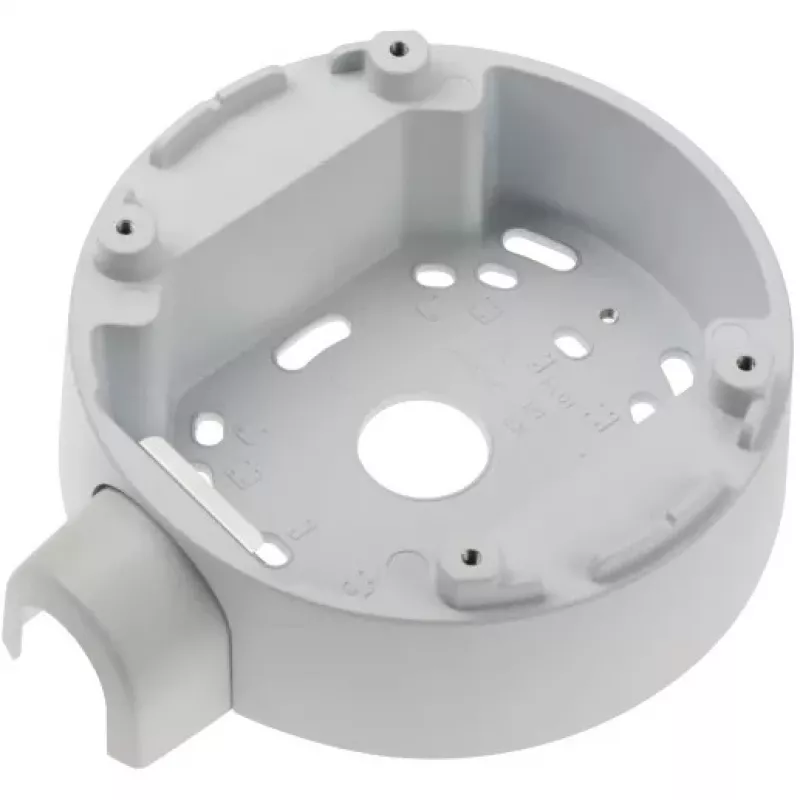

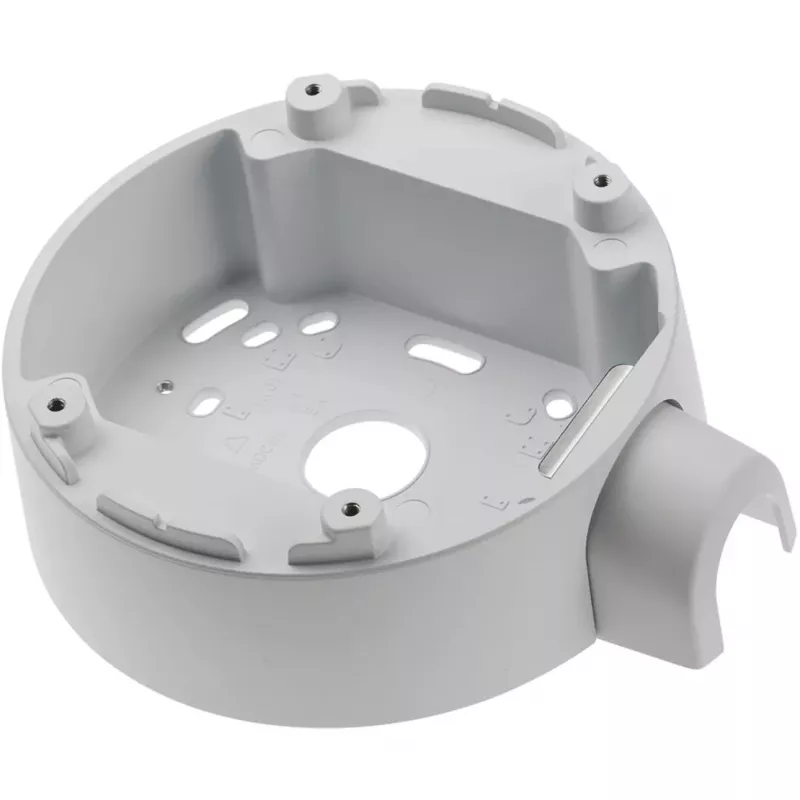

Aluminum vandal resistant IK10-rated back box designed for secure installation of Axis cameras. The Axis 5505-181 mounting accessory has a robust grey finish and dimensions of 151 mm x 151 mm; it is suitable for use both indoors and outdoors and includes an AXIS Conduit Adapter U-shape 30 mm A for conduit connection.

Advantages

The back box is made of aluminum with an IK10 impact-resistance rating, providing protection against vandalism and mechanical impact. Its compact 151 mm x 151 mm footprint fits a range of Axis cameras and mounting setups. The included AXIS Conduit Adapter U-shape 30 mm A simplifies conduit routing and installation, and the unit can be mounted directly on walls, hard ceilings or on standard junction boxes.

Suitable for

• Mounting Axis network cameras requiring a vandal-resistant back box
• Indoor and outdoor surveillance installations
• Wall-mounted or ceiling-mounted camera setups
• Installations needing conduit access (30 mm U-shape adapter)

Key specifications

• Brand: AXIS
• Model / MPN: 5505-181
• Material: Aluminum
• Impact rating: IK10
• Color: Grey
• Dimensions: 151 mm x 151 mm
• Included accessory: AXIS Conduit Adapter U-shape 30 mm A
• Mounting options: Wall, hard ceiling, junction box

How to use

Mount the back box directly to a solid wall, hard ceiling surface or attach it onto a compatible junction box using appropriate fasteners. Route camera cables through the conduit opening and install the AXIS Conduit Adapter U-shape 30 mm A where required to secure conduit connection. Attach the compatible Axis camera to the back box following the camera manufacturer’s mounting instructions, then secure all covers and seals to maintain vandal protection.

Recommendations

Use appropriate corrosion-resistant fasteners for outdoor installations and verify compatibility with the specific Axis camera model before installation. Follow all local electrical and mounting codes and the camera manufacturer’s instructions when routing cables and sealing the enclosure.
