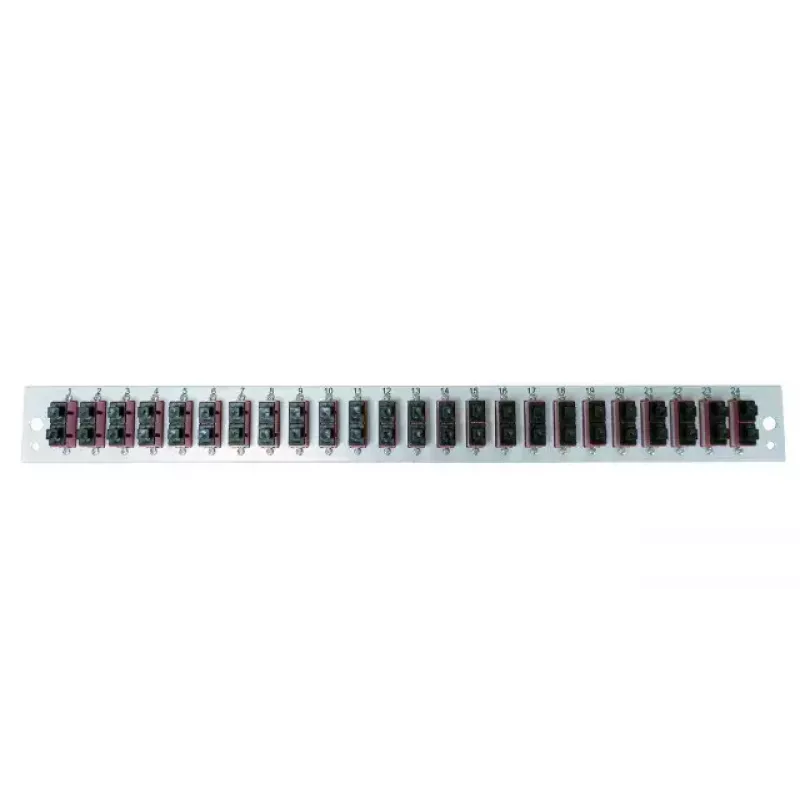

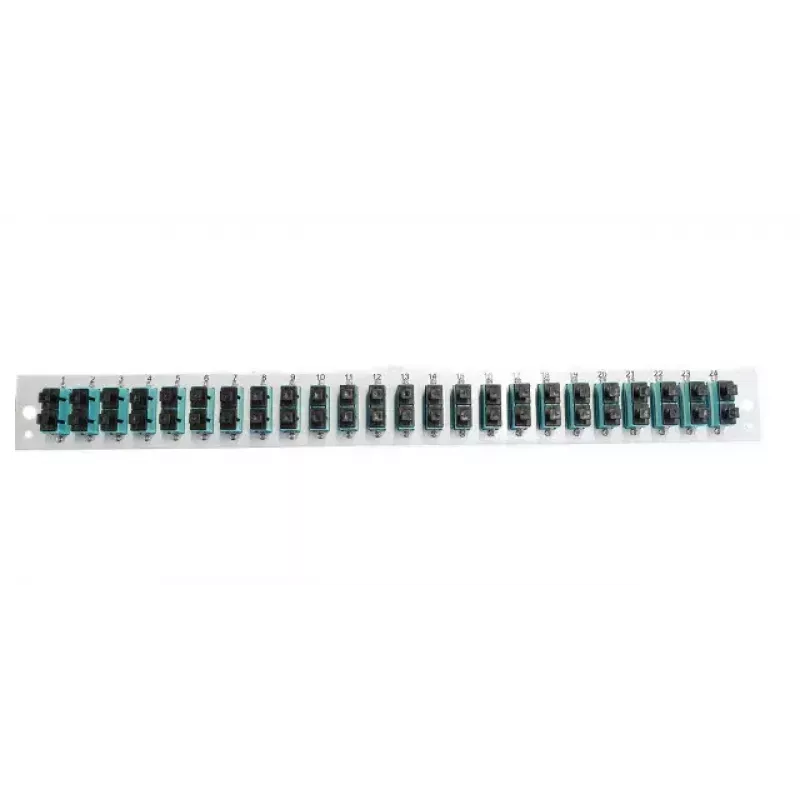

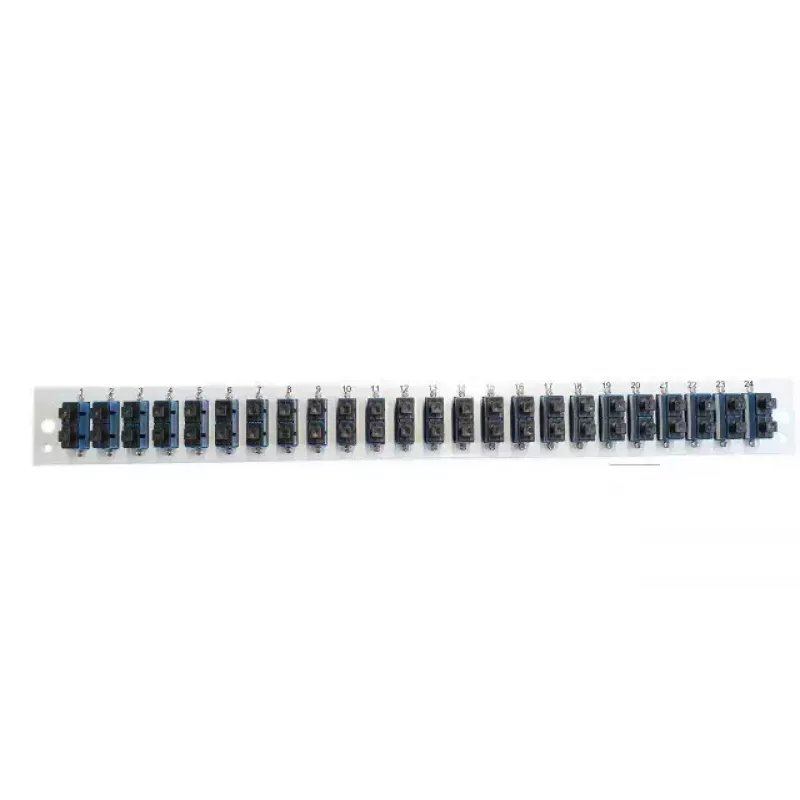

Accessorio per patch panel EFB Elektronik SB-FP-24SC-D-V-OM4 — montaggio rack 1HE, 432×13×43,5 mm, grigio

The EFB Elektronik SB-FP-24SC-D-V-OM4 front panel is an accessory designed for 19" splice boxes and provides space for SC duplex adapters in fiber categories OM3, OM4 and OS2. It is intended for 1U rack installation, with a grey finish and compact dimensions suitable for standard rack-mounted fiber management.

Advantages

This front panel supports up to 24 SC duplex positions, fits a 1U rack mounting footprint and offers a slim profile (432 mm width, 13 mm depth, 43.5 mm height) for efficient use of rack space. The product is compatible with OM3, OM4 and OS2 fiber categories and is supplied by EFB Elektronik under model SB-FP-24SC-D-V-OM4.

Suitable for

• Patching and organization of SC duplex fiber connections in 19" splice boxes
• Data center and telecommunications rack installations requiring OM3/OM4/OS2 support
• Environments needing a 1U, low-profile fiber adapter panel

Key specifications

• Manufacturer: EFB Elektronik
• Model (MPN): SB-FP-24SC-D-V-OM4
• EAN: 4049759258627
• Adapter type: SC duplex
• Supported fiber categories: OM3, OM4, OS2
• Mounting: 19" rack, 1U
• Colour: Grey
• Dimensions (WxDxH): 432 x 13 x 43.5 mm

How to use

Install the front panel into a compatible 19" splice box or rack bay occupying 1U of rack space. Secure the panel according to the splice box manufacturer's instructions, then populate the SC duplex adapter positions with fiber connectors and perform splicing or termination as required. Ensure proper cable routing and strain relief to protect fiber connections.

Recommendations

For reliable performance, use this panel with SC duplex connectors and fiber types OM3, OM4 or OS2 as specified. Follow standard fiber handling and safety procedures, maintain bend radius limits, and confirm connector cleanliness before mating.
