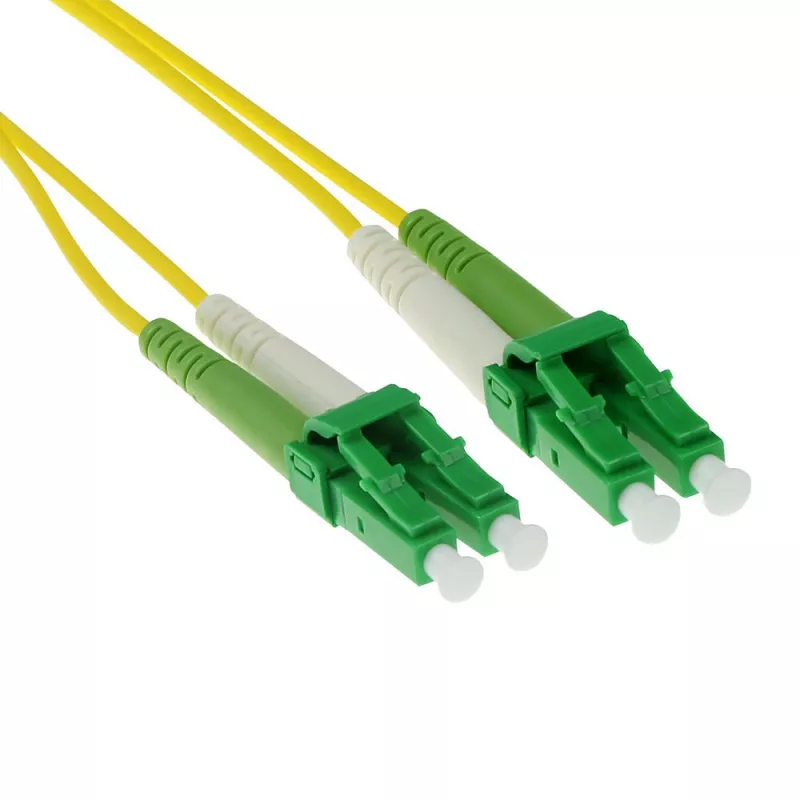

ACT 10 metri LSZH singlemode 9/125 OS2 cavo patch in fibra ottica duplex con connettori LC/APC8

The ACT 10 meter LSZH Singlemode 9/125 OS2 duplex LC/APC8 fiber patch cable is designed for reliable singlemode connectivity in data centers, telecom racks and indoor network installations. The cable uses a 9 µm core (9/125) and OS2 specification for long-distance singlemode transmission. LSZH jacket material reduces smoke and eliminates halogen emissions, making the cable suitable for enclosed spaces where safety and low smoke are important. The product includes LC/APC8 connectors assembled as a duplex pair and is delivered with an individual test report showing insertion loss (IL), return loss (RL) and 100% end-face inspection.

Advantages

Each cable is supplied with an individual IL and RL test report and a 100% inspected end-face, which ensures measured performance. Connectors are finished with APC polish and the fiber uses grade A glass with laser-precision cleaving for consistent optical quality. The LSZH jacket offers low smoke and zero halogen properties suitable for indoor installations, while the duplex LC/APC8 termination supports reliable bidirectional singlemode links.

Suitable for

• Data center uplinks and server connections
• Telecommunication racks and patch panels
• Indoor backbone and horizontal cabling where low smoke emission is required
• Singlemode applications requiring APC connectors and low return loss

Key specifications

• Length: 10 m
• Fiber type: Singlemode 9/125 µm, OS2
• Connector: Duplex LC/APC8
• Jacket: LSZH (Low Smoke Zero Halogen)
• Polish: APC
• Quality control: Individual IL and RL test report; 100% end-face inspection
• Manufacturer: ACT, MPN RL2610, EAN 8716065341133

How to use

Route the duplex LC/APC8 cable between the two devices, taking care to avoid tight bends and mechanical stress that could increase attenuation. Insert each LC/APC connector into the corresponding LC/APC adapter or port ensuring the keyed orientation of APC connectors is respected. Use the provided test report to verify insertion loss and return loss after installation. If re-routing or dressing the cable, maintain the minimum bend radius recommended for singlemode 9/125 fiber.

Recommendations

Store and install the cable in dry indoor environments; avoid exposure to direct sunlight or chemicals. For best performance, clean APC connector end-faces before mating and handle connectors by the boot to prevent end-face contamination or damage.
