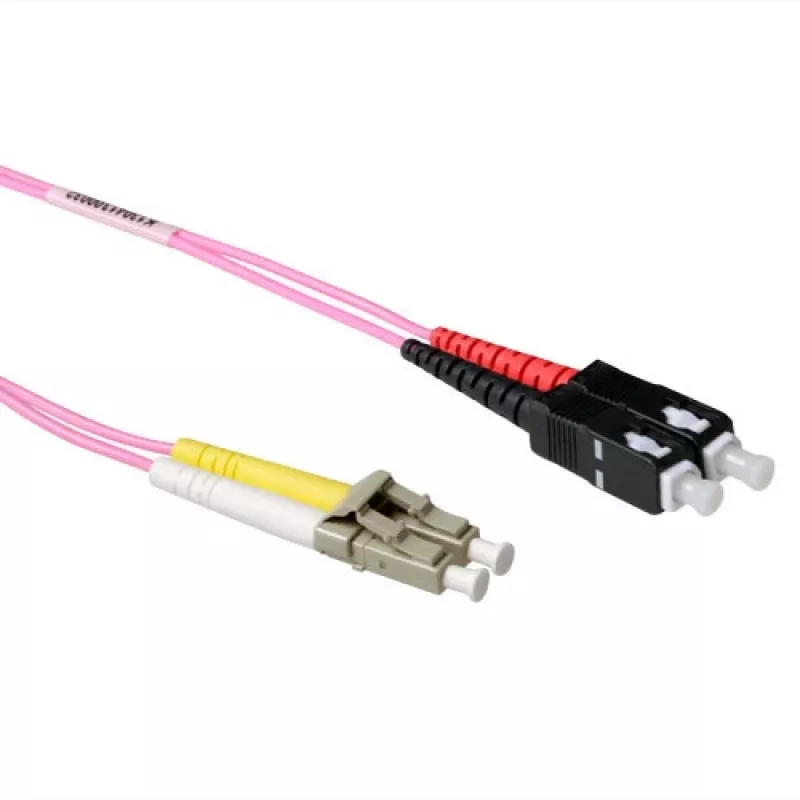

ACT 7 m cavo patch in fibra ottica LSZH multimodale 50/125 OM4 duplex con connettori LC e SC

The ACT 7m Duplex OM4 fiber patch cable with LC and SC connectors is a multimode 50/125 µm LSZH cable designed for high-speed data transmission in networks and data centers. This 7-metre cable provides duplex connectivity with two LC and two SC terminations and uses OM4 grade fiber to support higher bandwidth over multimode links while the LSZH jacket reduces smoke and toxicity in the event of a fire.

Advantages

Each cable receives an individual test report with insertion loss (IL) and return loss (RL) measurements and 100% end-face inspection. Laser-precision cleaving and UPC polish ensure consistent connector quality. The cable uses Grade A‑m OM4 multimode fiber for improved performance and durability.

Suitable for

• Data centers and server rooms
• High-speed multimode network links
• Telecommunications closets and patch panels
• Short- to medium-range backbone and distribution connections

Key specifications

• Length: 7 m
• Fiber type: Multimode OM4 (50/125 µm)
• Connector configuration: Duplex (2x LC – 2x SC)
• Polish type: UPC
• Jacket: LSZH (Low Smoke Zero Halogen)
• Manufacturer: ACT
• MPN: RL8707
• EAN: 8716065308440

How to use

Route the cable avoiding sharp bends and securing it with appropriate cable management to maintain minimum bend radius. Connect LC and SC ends to matching ports on network equipment or patch panels, ensuring connectors are clean before insertion. Verify link performance using the provided test report and, if required, perform an additional loss test after installation.

Recommendations

Inspect connector end-faces before installation and keep dust caps on until connection. Use proper strain relief and avoid compressing the LSZH jacket to preserve optical performance.
