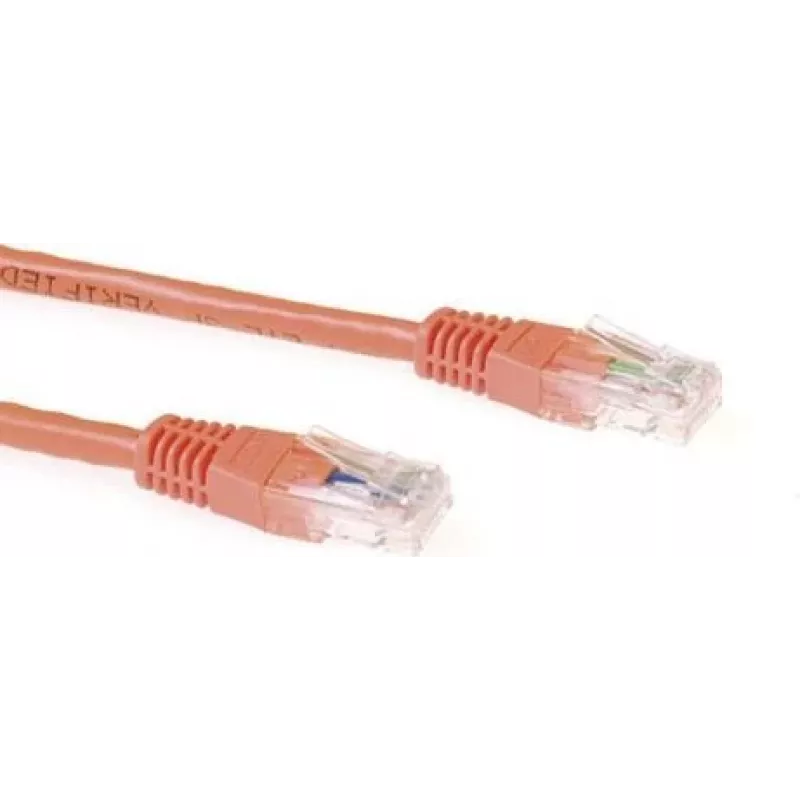

ACT cavo patch CAT6A U/UTP RJ45, 1m, arancione IB4301

Experience 10 Gigabit Ethernet speeds with this 1-meter ACT CAT6A U/UTP patch cable. Engineered with 26 AWG stranded copper conductors and gold-plated RJ45 connectors, it delivers reliable performance up to 500 MHz.

Overview

The ACT IB4301 is a high-performance Cat6a network cable designed for demanding network environments. Its unshielded twisted pair (U/UTP) construction with 8 conductors (4 pairs) ensures minimal crosstalk and supports 10GBASE-T applications. The snagless boot protects the locking tab during installation, while the PVC jacket provides durability.

What stands out

• Supports 10 Gigabit Ethernet for high-speed data transfer
• Gold-plated RJ45 connectors for corrosion resistance and reliable connectivity
• Snagless design prevents accidental disconnection
• Stranded copper conductors offer flexibility for easy routing
• Compliant with TIA/EIA-568B wiring standard

Technical details

• Cable length: 1 m
• Cable category: Cat6a
• Shielding: U/UTP (Unshielded)
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor gauge: 26 AWG
• Jacket material: PVC
• Maximum bandwidth: 500 MHz
• Maximum data transfer rate: 10 Gbps
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Operating temperature: -20°C to 60°C

Our verdict

A reliable and affordable Cat6a patch cable for high-speed network connections, ideal for both home and office use.
