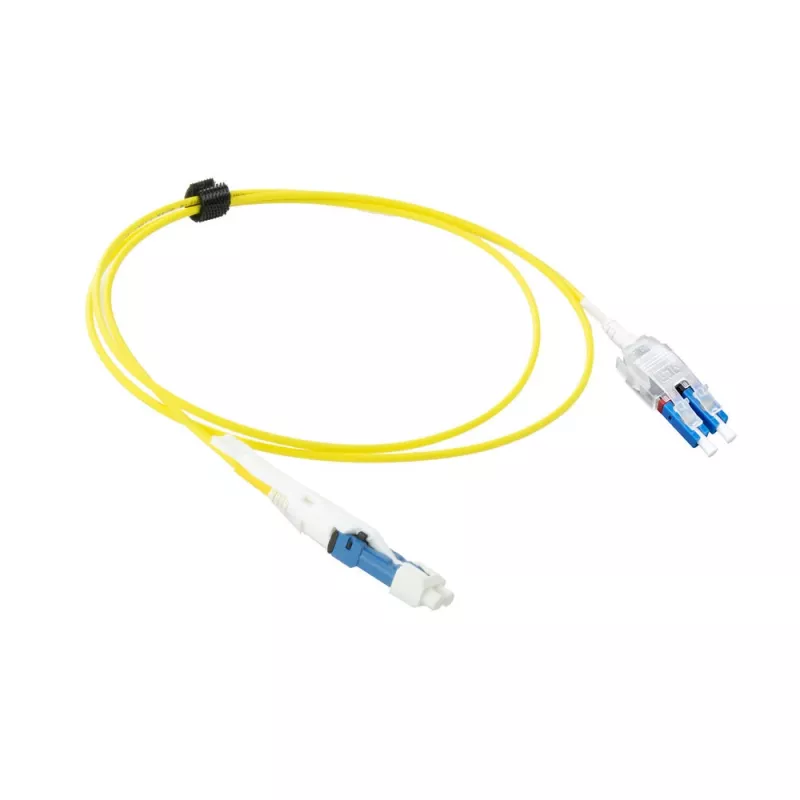

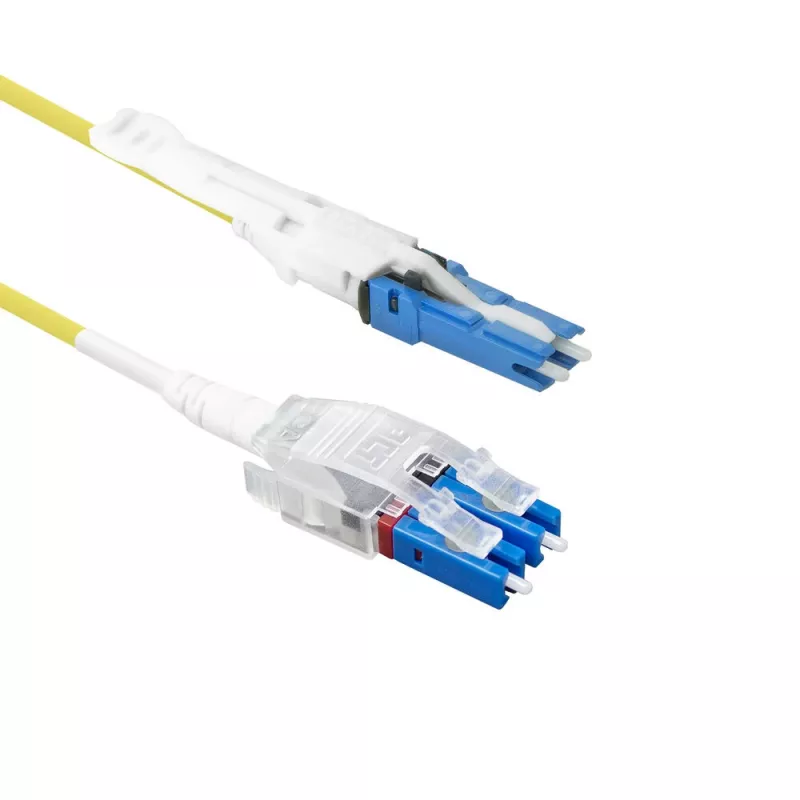

ACT Cavo patch in fibra ottica 10 metri Singlemode 9/125 OS2 Polarity Twist Uniboot Duplex CS - LC

The ACT 10m Singlemode 9/125 OS2 Polarity Twist Uniboot Duplex Fiber Patch Cable CS-LC is a thin, high-density duplex fiber cable with a CS connector on one end and an LC Polarity Twist™ connector on the other. With a 9/125 µm singlemode core and OS2 rating, it is intended for high-performance data transmission in data centers and telecommunications networks. The Polarity Twist™ feature lets you change the LC connector polarity in seconds, while the reduced cable diameter saves rack space and simplifies routing.

Advantages

The cable offers rapid polarity reversal via the LC Polarity Twist™ connector without re-terminating or re-routing, and the CS connector provides compatibility with QSFP and OSFP high-speed optics. Its uniboot duplex design and 60% thinner profile than standard patch cords enable higher port density and neater installations in confined spaces. The singlemode 9/125 OS2 fiber ensures low attenuation for long-distance links.

Suitable for

• Data center interconnects and high-density patch panels
• Connections to QSFP/OSFP modules and transceivers using CS interfaces
• Telecommunications backbone and singlemode fiber links

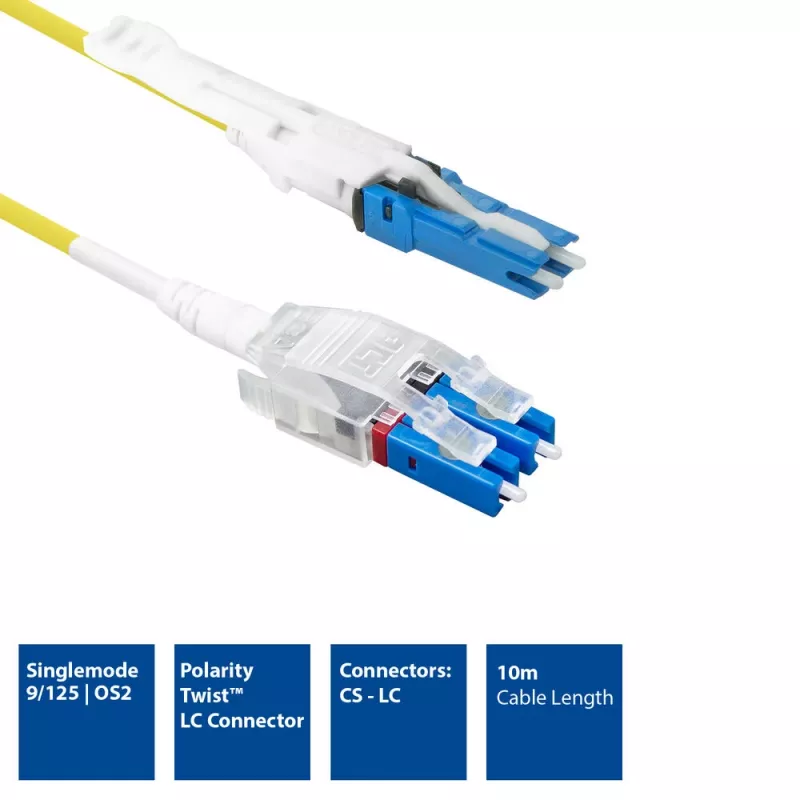

Key specifications

• Length: 10 m
• Fiber type: Singlemode 9/125 µm
• OS standard: OS2
• Connector A: CS
• Connector B: LC Polarity Twist™ (uniboot duplex)
• Design: Polarity-changeable LC, uniboot duplex, high-density (≈60% thinner vs standard)
• Brand: ACT
• Manufacturer part number (MPN): RL1110
• EAN: 8716065529753

How to use

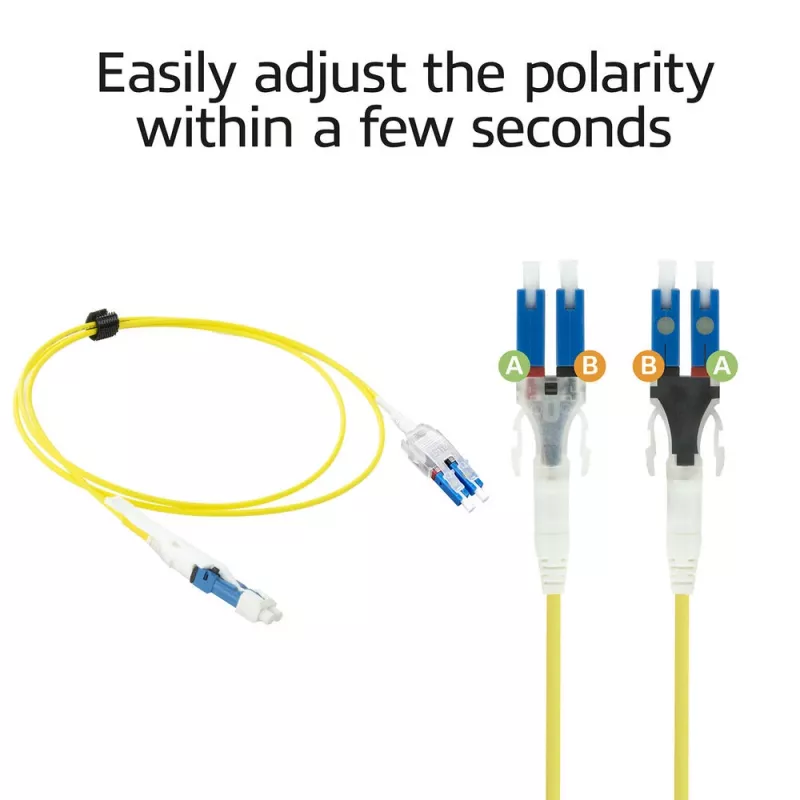

Route the uniboot duplex cable through the cable management path to the patch panel or transceiver. Insert the CS connector into the CS-compatible QSFP/OSFP module and mate the LC Polarity Twist™ connector to the LC adapter or transceiver port. If fiber polarity needs to be swapped, operate the Polarity Twist™ mechanism on the LC connector to reverse transmit/receive orientation within seconds without disconnecting or re-terminating the cable.

Recommendations

Use this cable in high-density racks and optical patch panels where space saving and quick polarity changes are required. Avoid tight bends below the manufacturer’s minimum bend radius and follow standard singlemode handling procedures to prevent contamination or damage to connector endfaces.
