ACT cavo patch in fibra ottica duplex LSZH multimodale 50/125 OM3 con connettori LC e ST da 1,5 metri

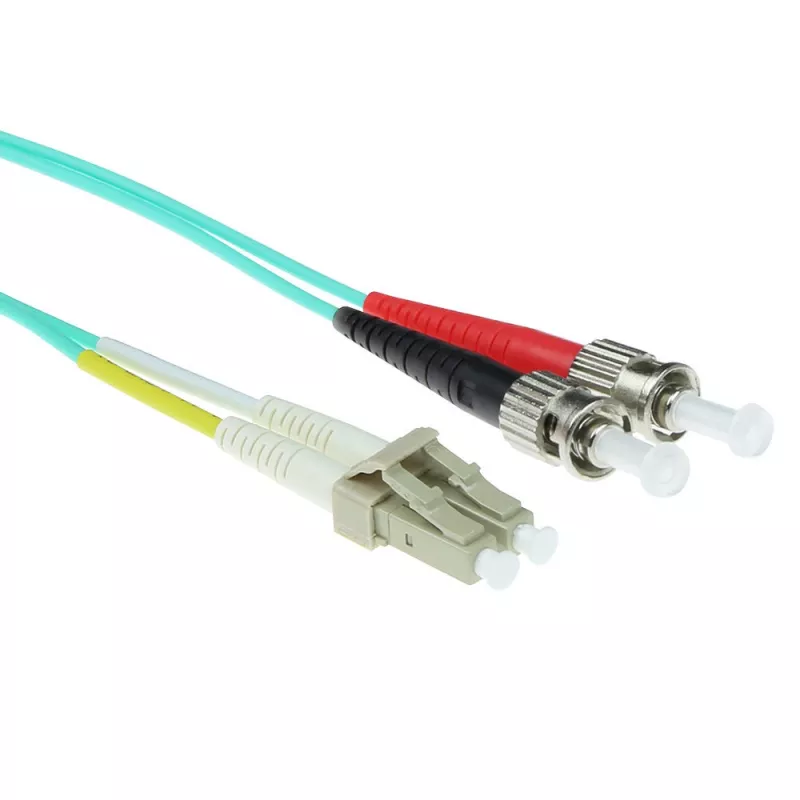

The ACT OM3 Fiber Patch Cable 1.5m Duplex LC–ST is a multimode 50/125 µm patch cord designed for indoor network connections. This 1.5 metre LSZH cable supports full duplex data transmission and pairs an LC connector on one end with an ST connector on the other, providing compatibility with common networking equipment. The cable uses OM3 graded multimode fiber and UPC polishing for consistent optical performance.

Advantages

Each cable is supplied with an individual test report showing insertion loss (IL) and return loss (RL) measurements, and all connector end-faces are 100% inspected. The fiber uses laser-precision cleaving and Grade A multimode fiber to reduce signal loss. The LSZH jacket minimizes smoke and halogen emissions for safer indoor deployment.

Suitable for

• Short- to medium-range data center connections
• Switch-to-switch and switch-to-server links
• Enterprise and campus network backbone segments
• Indoor installations where low-smoke zero-halogen jacket is required

Key specifications

• Length: 1.5 m
• Fiber type: Multimode OM3 (50/125 µm)
• Configuration: Duplex
• Connectors: LC to ST
• Polish: UPC
• Jacket: LSZH (Low Smoke Zero Halogen)
• Quality: Grade A fiber; laser precision cleave; 100% end-face inspection

How to use

Route the 1.5 m patch cable between the LC port and the ST port of your network devices, ensuring connector alignment and secure latching. Avoid sharp bends and excessive pulling force during installation to maintain fiber integrity. Use the supplied test report to verify insertion loss and return loss against your system requirements before putting the link into production.

Recommendations

Store and handle the cable following standard fiber optic practices: keep connector end-faces capped when not in use, clean end-faces with appropriate fiber cleaning tools before connection, and maintain minimum bend radius as specified by OM3 multimode fiber guidelines.
