ACT patch panel 24 porte keystone jack 45 gradi senza connettori

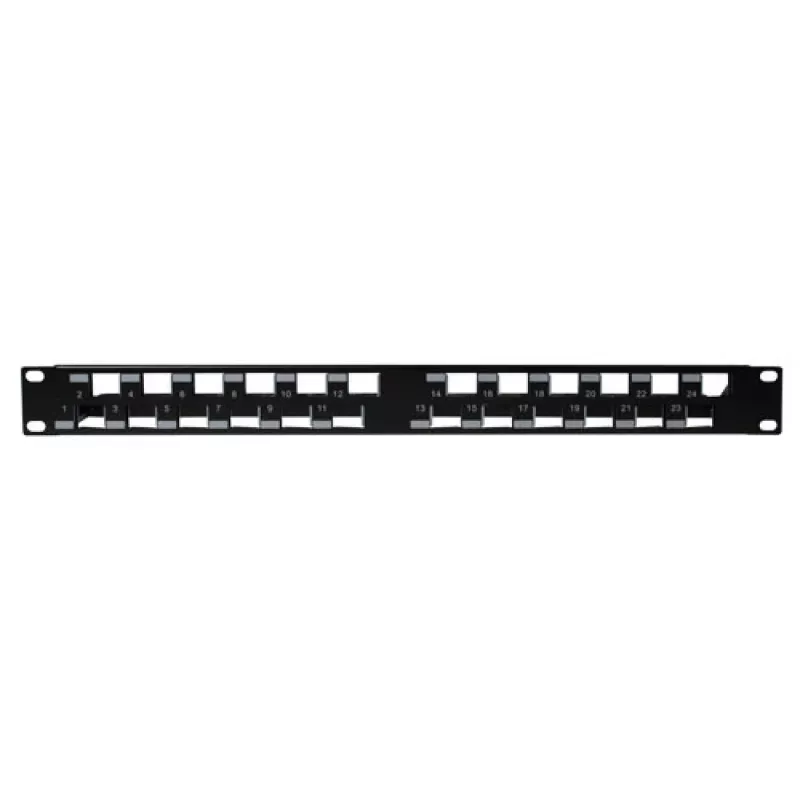

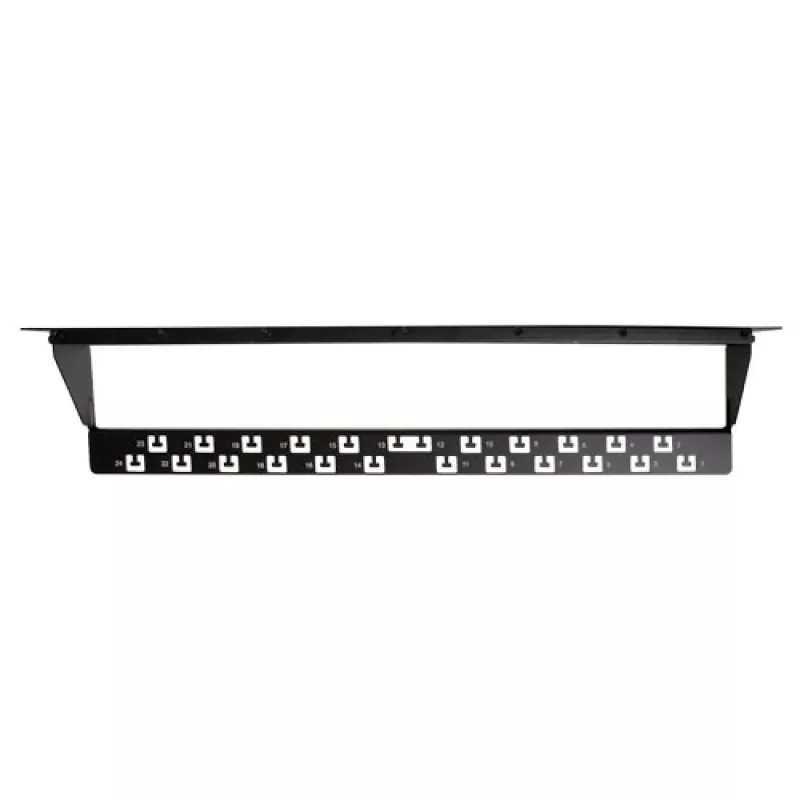

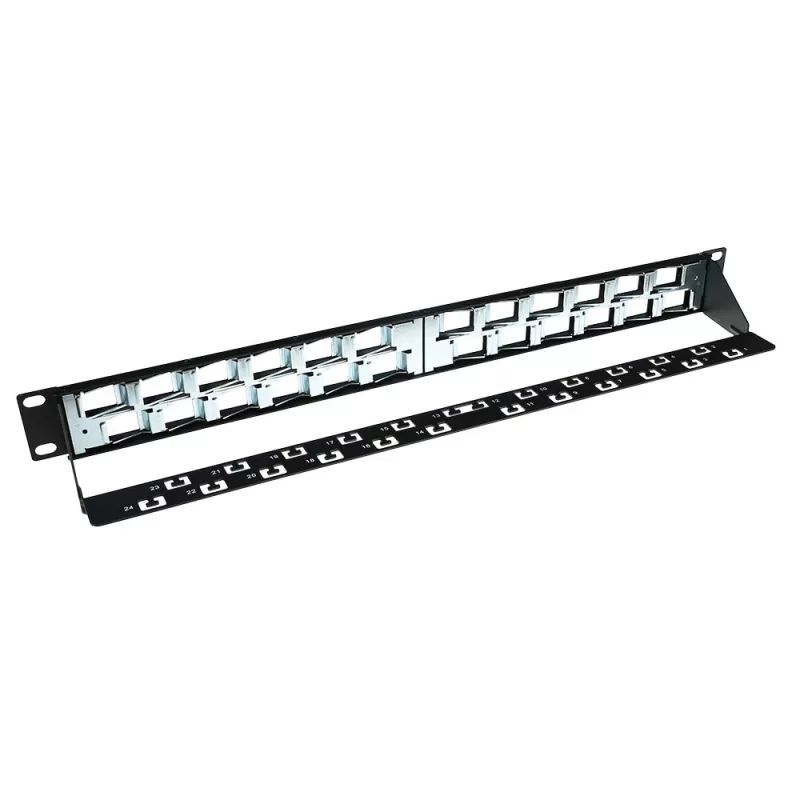

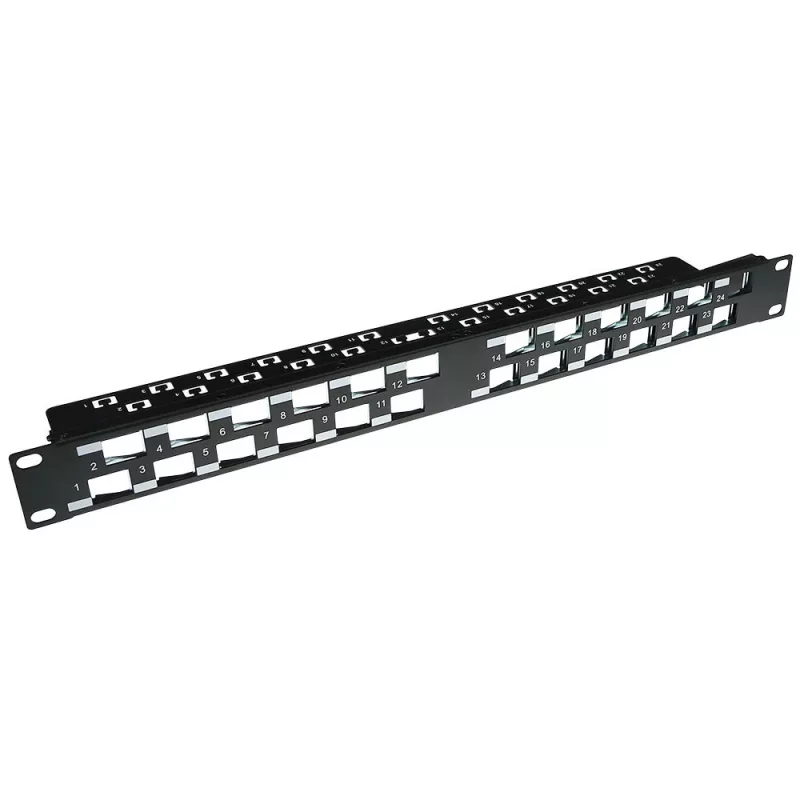

ACT Patch Panel PP1033 is an unloaded 24‑port keystone panel with a 45° angled orientation designed to simplify cable routing in network racks. Constructed from durable SPCC steel, the panel occupies 1U of rack space and measures 482.4 mm (W) x 44.1 mm (H) x 92.3 mm (D). Its compact black housing accepts standard keystone jacks to organize and group LAN connections in server rooms, comms cabinets, or wiring closets.

Advantages

The 45° angled layout provides neater cable exits and reduces strain on patched cables. SPCC construction ensures structural rigidity and long service life in rack environments. A 1U form factor and standard 482.4 mm width make the panel compatible with typical 19‑inch racks. The unloaded design allows flexible selection of keystone jacks to suit copper or fiber terminations.

Suitable for

• Small and medium office LAN installations
• Server rooms and network racks
• Telecommunications cabinets and wiring closets
• Custom patching solutions using keystone jacks

Key specifications

• Model: PP1033
• Brand: ACT
• Ports: 24 keystone ports
• Orientation: 45° angled
• Material: SPCC steel
• Rack units: 1U
• Dimensions (W×H×D): 482.4 × 44.1 × 92.3 mm
• Colour: Black
• MPN: PP1033
• EAN: 8716065301182

How to use

Install the panel in a standard 19‑inch rack occupying one unit of rack height. Snap compatible keystone jacks into the 24 available openings according to your cabling scheme. Route and secure patch cords through the angled face to maintain tidy cable paths and reduce connector stress. Label ports as needed for identification.

Recommendations

For best cable management, use compatible keystone jacks and appropriate cable ties or management bars. Verify rack depth and available clearance before installation to ensure the 92.3 mm depth fits your cabinet.
