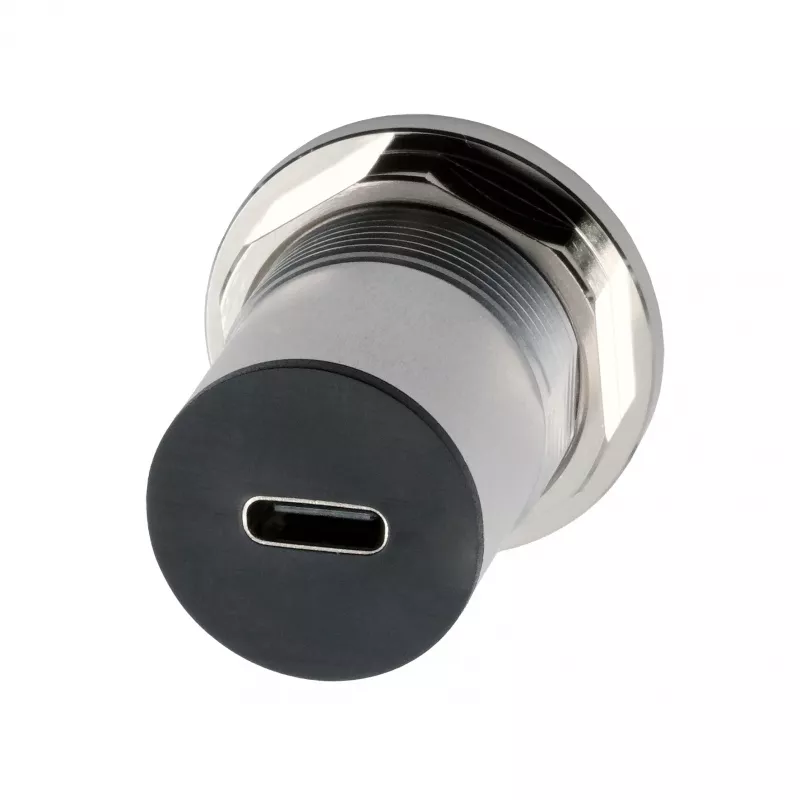

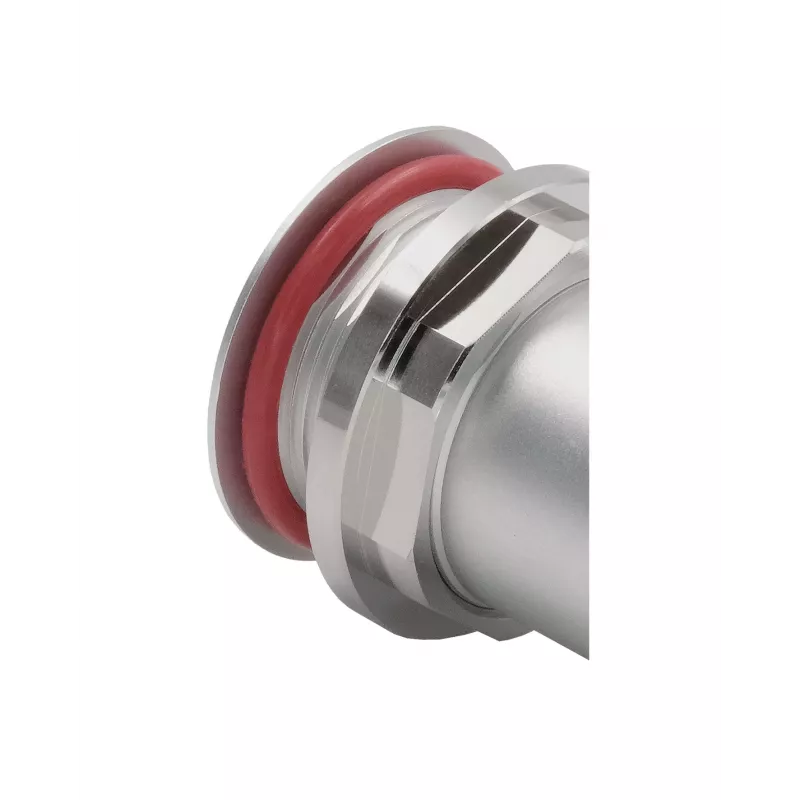

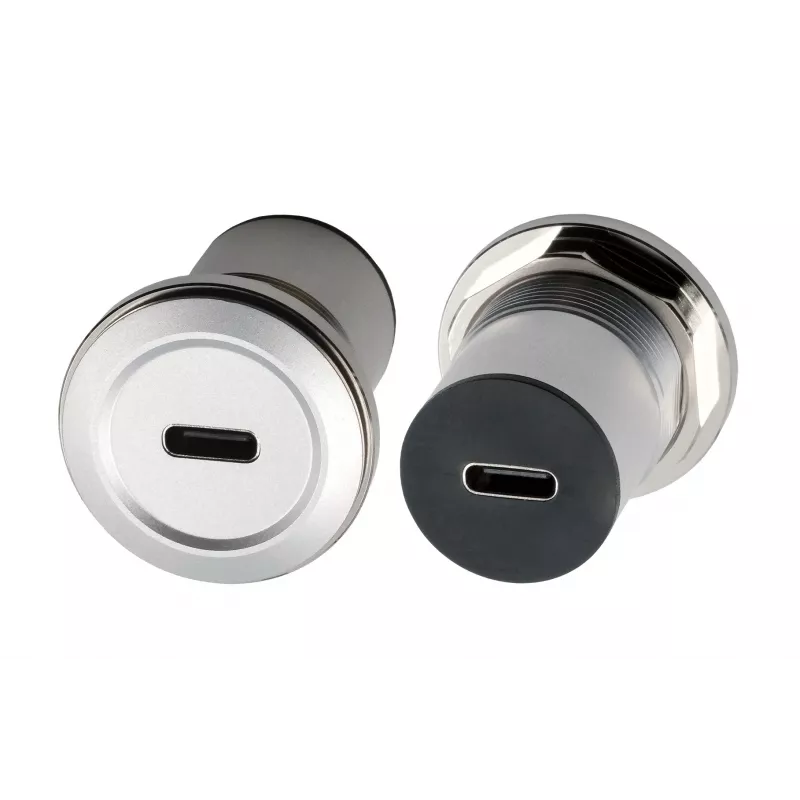

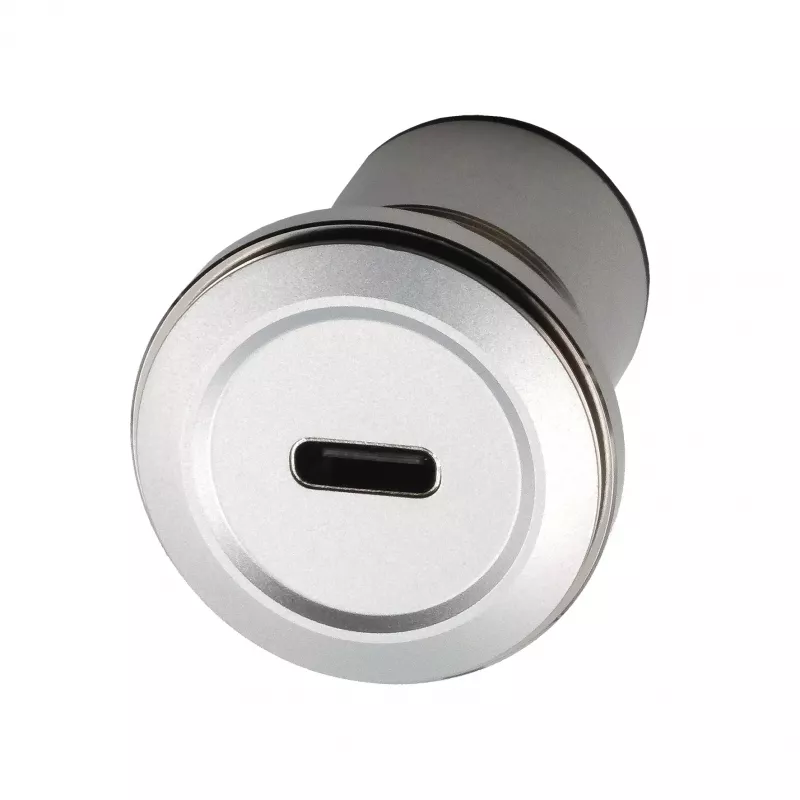

Adattatore da incasso EXSYS EX-49195 USB-C femmina a USB-C femmina, metallo, USB 3.2 Gen 1

For integrators and technicians building custom panels or enclosures, the EXSYS EX-49195 provides a robust USB-C extension point. This metal panel mount adapter connects a USB-C female port on one side to a USB-C female port on the other, enabling easy access to USB-C devices from the front of a case or machine.

Key specifications

• Connector 1: USB-C Female
• Connector 2: USB-C Female
• USB Standard: USB 3.2 Gen 1
• Data Transfer Rate: 5 Gbps
• Housing Material: Metal
• Colour: Silver
• Mounting Type: Panel Mount
• Panel Cutout: 22 x 22 mm (D-type standard)
• Front Plate Dimensions: 28 x 28 mm
• Mounting Depth: 28 mm
• Power Delivery: Basic power pass-through (up to 15W)

Why choose it

Its all-metal construction ensures durability and shielding, while the standard D-type cutout simplifies integration into existing panels. The reversible USB-C connectors support both data and charging, making it versatile for modern devices.

Ideal use cases

• Adding a front-facing USB-C port to industrial PCs or server racks
• Custom kiosks or enclosures requiring a robust USB-C interface
• Extending USB-C connectivity in automotive or marine applications

Good to know

This adapter is a pass-through device; it does not convert signals or boost power. Ensure your host device supports the required USB standard and power output.
