Adattatore DeLOCK M.2 Key A+E a PCIe x8 NVMe piegato con cavo da 20 cm

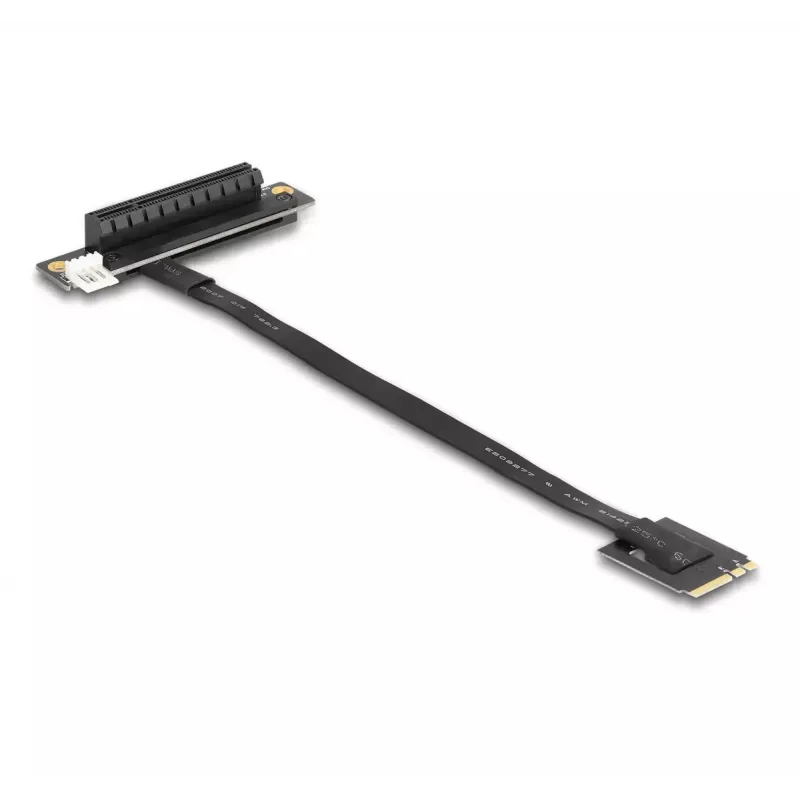

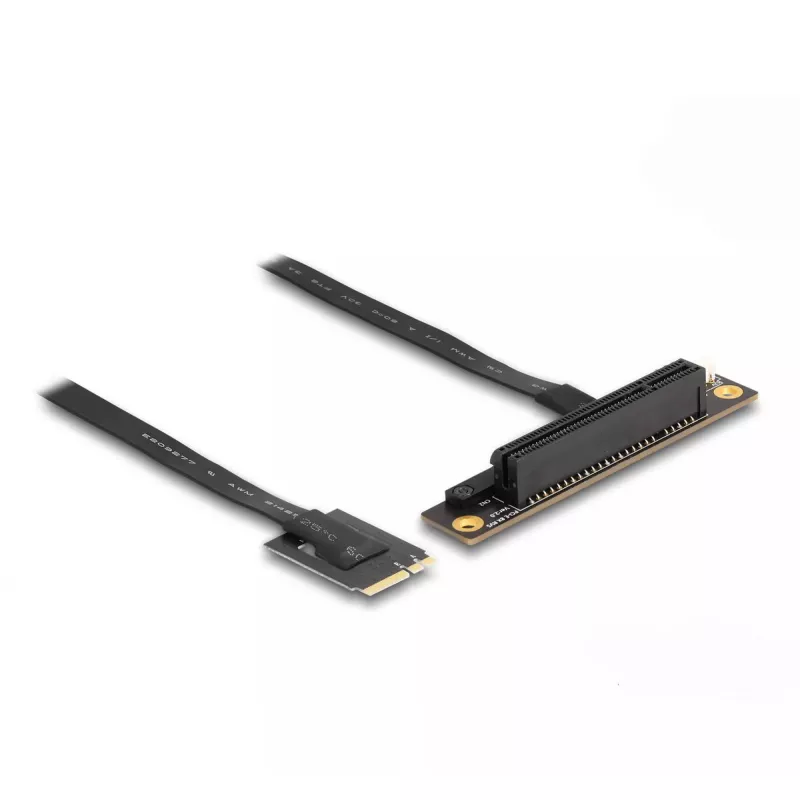

This DeLOCK M.2 Key A+E to PCIe x8 NVMe Adapter allows connecting a PCI Express card to an M.2 Key A+E slot. The adapter uses an angled connector and a 20 cm flexible cable to enable space-saving and flexible installation inside a computer case. A separate power connector is provided to supply 12 V to the PCIe card when required; the adapter supports UEFI 2.3.

Advantages

The angled connector and 20 cm cable grant installation flexibility and improved cable routing in compact systems. The adapter supports NVMe devices via a PCIe x8 interface and includes a dedicated power connector for cards that require external 12 V supply. Compatibility with UEFI 2.3 ensures modern boot and firmware environments are supported.

Suitable for

• Adding a PCIe x8 NVMe card to a system with an M.2 Key A+E slot
• Compact or small-form-factor PC builds that need flexible cable routing
• Upgrading embedded systems or motherboards lacking free PCIe slots

Key specifications

• Brand: DELOCK
• Model: M.2 Key A+E to PCIe x8 NVMe Adapter (angled) — MPN 64219, EAN 4043619642199
• Host interface: M.2 Key A+E (male)
• Output interface: PCIe x8 (female) for NVMe cards
• Cable length: 20 cm, flexible
• Internal use: Yes

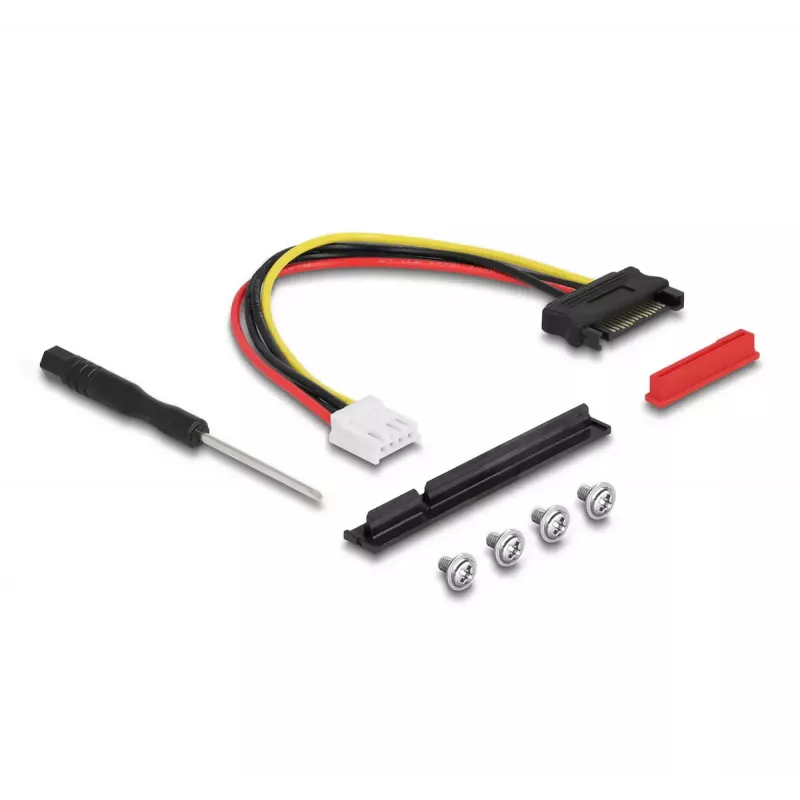

• Power: Additional 12 V power connector included
• UEFI support: UEFI 2.3

How to use

Insert the adapter's M.2 Key A+E plug into the host M.2 slot on the motherboard, route the angled 20 cm cable to the desired location and connect the PCIe x8 NVMe card to the adapter's PCIe female socket. If the PCIe card requires external power, attach the included 12 V power connector before powering on the system. Verify UEFI settings if necessary to ensure the system recognizes the NVMe device.

Recommendations

Install and secure the adapter and cable inside the case to prevent strain on the M.2 connector. Ensure the power connector polarity and voltage match the card's requirements and consult the card manufacturer for any firmware or BIOS settings related to NVMe boot or operation.
