Adattatore DisplayPort a 2x HDMI MicroConnect MC-DP-2XHDMI, doppio HDMI connettore femmina, supporto 4K

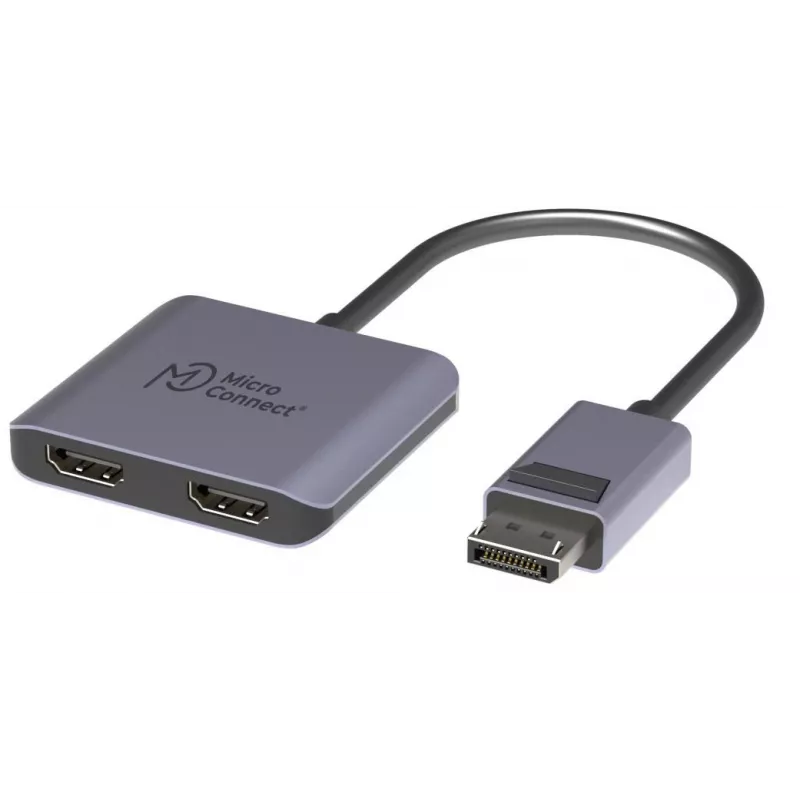

MicroConnect MC-DP-2XHDMI is a compact DisplayPort to dual HDMI female adapter that enables connection of two HDMI displays, TVs or projectors from a single DisplayPort output. The adapter supports 4K resolution where the source GPU and connected displays allow it, and is designed for simple desktop or portable setups requiring either extended desktop or mirrored output (subject to the source device and graphics card capabilities).

Advantages

The adapter provides a space-saving solution for converting one DisplayPort output into two HDMI female connectors without requiring additional power for typical usage. Its compact housing is suited for both permanent desktop arrangements and mobile use with laptops. Passive conversion ensures straightforward plug-and-play operation with compatible devices, allowing quick setup for presentations, multi-screen workstations or home entertainment configurations.

Suitable for

• Extending desktop across two HDMI monitors (if supported by the source GPU)
• Mirroring the same video signal to two HDMI displays for presentations
• Connecting a laptop or PC with DisplayPort to TVs or projectors with HDMI inputs
• Temporary multi-screen setups for meetings, gaming or media playback

Key specifications

• Input: DisplayPort male
• Outputs: 2 × HDMI female
• Resolution support: Up to 4K (dependent on source and display capabilities)
• Functionality: Video signal splitting for mirroring or extended desktop where supported
• Design: Compact, lightweight adapter housing suitable for portability

How to use

Connect the DisplayPort end of the adapter to the DisplayPort output on your computer or other source device. Attach HDMI cables from the adapter’s two HDMI female ports to the HDMI inputs of the target displays, TVs or projectors. Power on the source and displays, then configure the output mode (extend or duplicate/mirror) in the operating system’s display settings or GPU control panel according to your needs and the capabilities of the graphics hardware.

Recommendations

The adapter’s ability to deliver 4K and to use two displays in extended or mirrored mode depends on the source device and graphics card. For best results, use high-quality HDMI cables rated for the desired resolution and refresh rate, verify that the GPU supports multiple displays from a single DisplayPort output, and keep firmware/drivers up to date on the host system.
