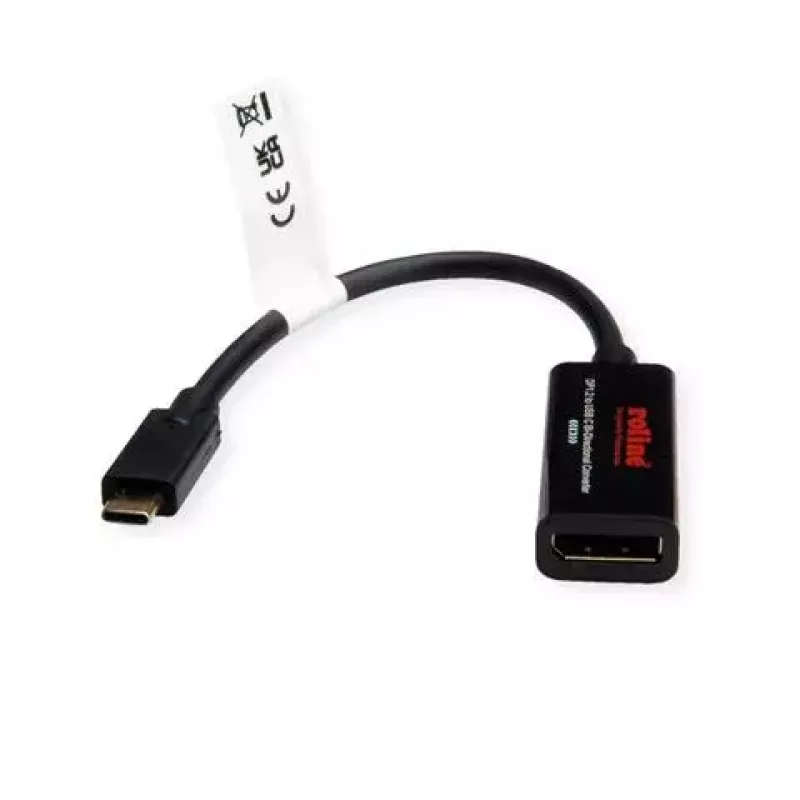

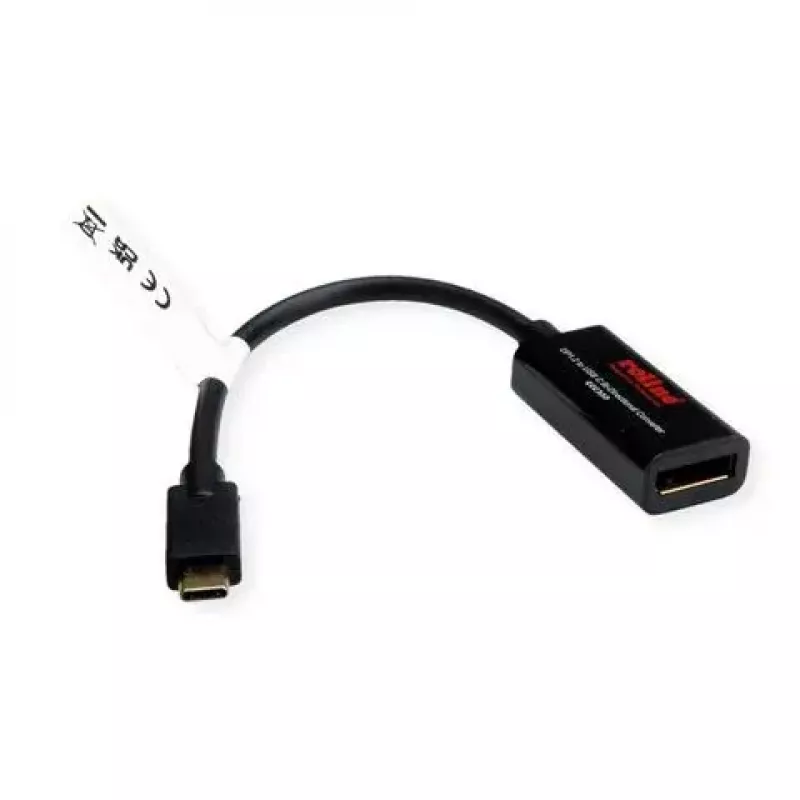

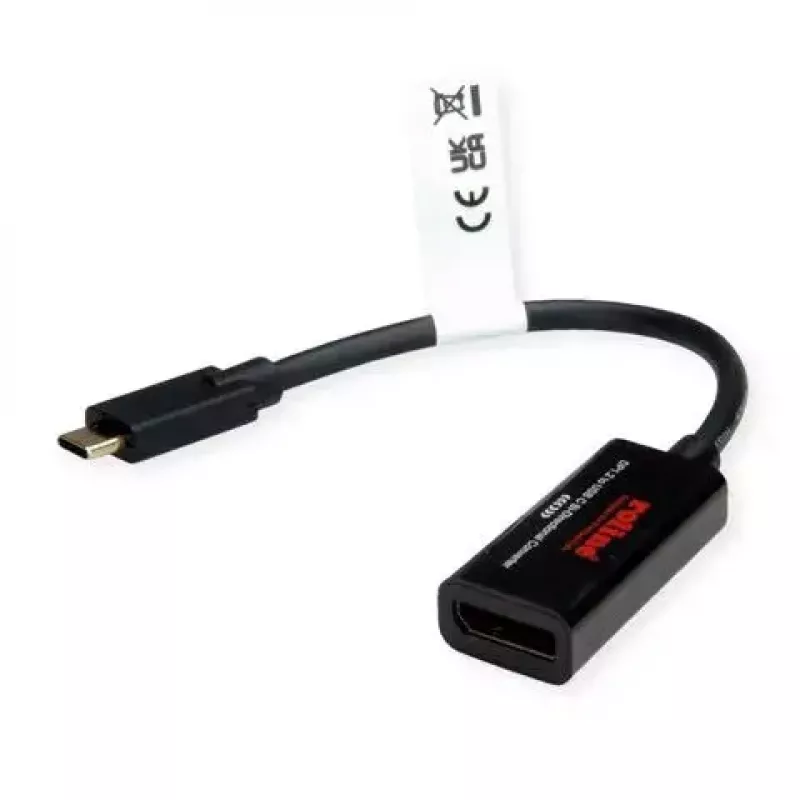

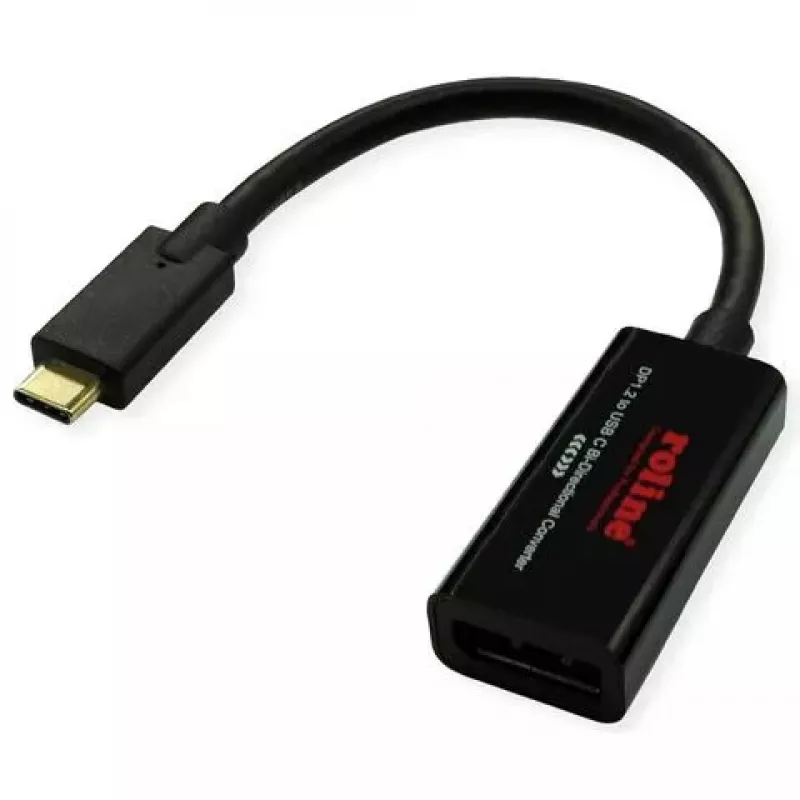

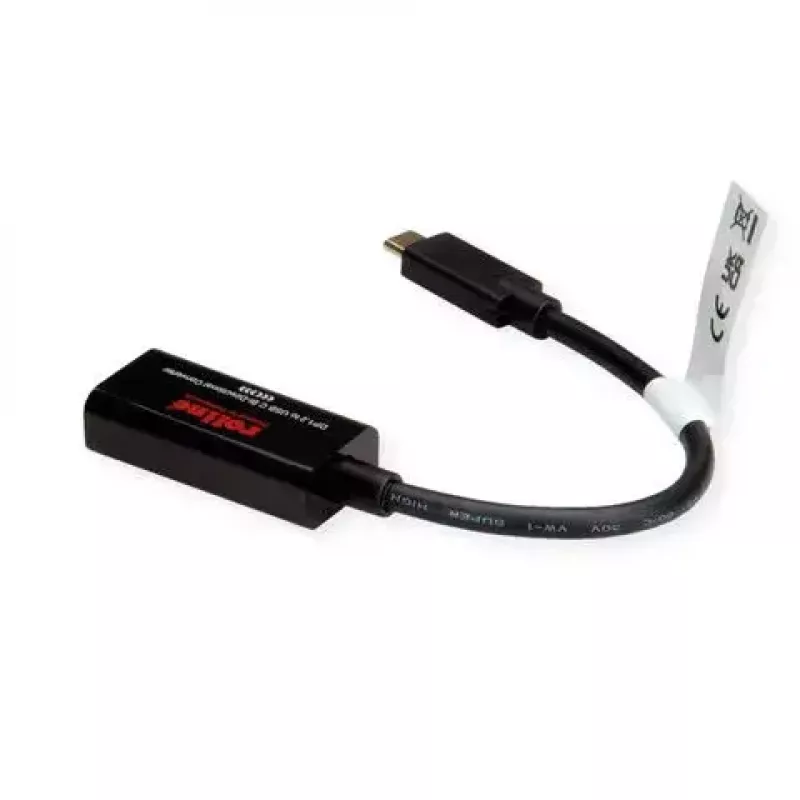

Adattatore grafico USB ROLINE 11.04.5957-10 3840 x 2160 pixel nero

The ROLINE USB graphics adapter (model 11.04.5957-10) is a reversible, bidirectional cable adapter that enables video signal transmission between devices with USB Type-C and DisplayPort connectors. It supports DisplayPort Alternate Mode on the USB Type-C port and delivers up to 3840 x 2160 at 60 Hz. The adapter is compact, lightweight (19.9 g) and bus powered, requiring no external power supply.

Advantages

This adapter works in both signal directions between USB Type-C and DisplayPort, offering plug & play connection without drivers. Bus powering simplifies integration into setups by eliminating the need for additional power adapters. The compact form factor and USB 3.2 Gen 1 Type-C male connector make it suitable for portable use and easy connection to laptops, PCs and compatible monitors.

Suitable for

• Connecting a DisplayPort-equipped monitor or TV to a laptop or smartphone with a USB Type-C port (requires DisplayPort Alt Mode)
• Connecting a USB Type-C monitor to a device with DisplayPort output (notebook/PC)
• Extending or mirroring a desktop to an external 4K display

Key specifications

• Maximum resolution: 3840 x 2160 @ 60 Hz
• Connectors: DisplayPort female and USB Type-C male
• USB version: 3.2 Gen 1 (3.1 Gen 1)
• Power: bus powered (no external power required)
• Weight: 0.0199 kg
• Colour: Black

How to use

Ensure the source device’s USB Type-C port supports DisplayPort Alternate Mode when connecting a USB Type-C source to a DisplayPort display. Plug the USB Type-C male connector into the source device and connect the DisplayPort female end to the DisplayPort cable leading to the monitor or TV, or reverse the connection for the opposite direction. The adapter is plug & play and typically does not require additional drivers.

Recommendations

For reliable 4K@60Hz output, use high-quality DisplayPort cables and verify that both source and display firmware/drivers support the required video modes. Avoid excessive bending of the adapter and connectors to preserve signal integrity.
