Adattatore in fibra ottica InLine metallo duplex LC/LC SM boccola in ceramica con flangia

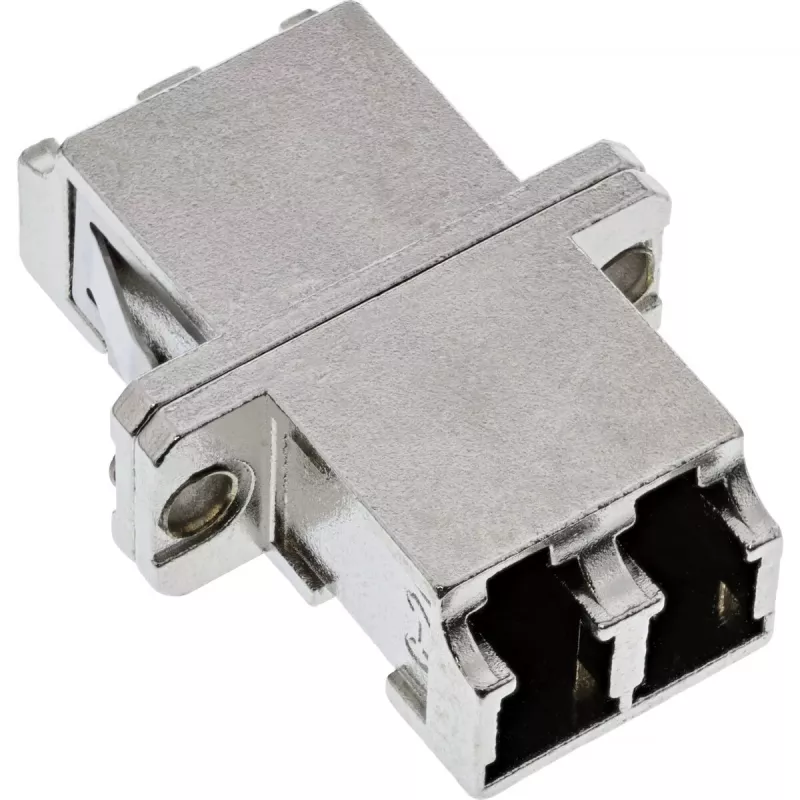

The InLine Fiber Optical Adapter is a metal duplex adapter with LC/LC connectors and a ceramic sleeve designed for single-mode (SM) fiber applications. It provides a stable connection between LC-terminated fiber cables and features a flange for secure and easy installation. The adapter's durable silver finish supports long-term use in networking panels and wall plates.

Advantages

The metal duplex construction offers mechanical strength and dimensional stability, while the ceramic sleeve ensures accurate fiber alignment and low insertion loss. The integrated flange simplifies mounting in panels or outlets, and the silver finish provides corrosion resistance for extended service life.

Suitable for

• Single-mode LC to LC fiber connections
• Patch panels and fiber distribution frames
• Wall plates and faceplates with flange mounting
• Telecommunications and data center cabling

Key specifications

• Connector type: Duplex LC/LC
• Mode: Single-mode (SM)
• Sleeve material: Ceramic
• Housing: Metal, silver finish
• Mounting: Flange for installation
• Brand: InLine
• MPN: 89989E
• EAN: 4043718194698

How to use

Align LC connector ferrules with the adapter ports and insert until a secure click is felt. When mounting the adapter, position the flange into the prepared cutout on the panel or wall plate and fix it using appropriate screws or mounting hardware. Ensure fiber cables are routed without sharp bends and that connectors are clean before mating to maintain optimal optical performance.

Recommendations

Prior to installation, inspect and, if necessary, clean connector endfaces with appropriate fiber cleaning tools. Avoid excessive torque on mounting screws and maintain bend radii according to fiber specifications to prevent signal loss.
